ICU Portable Multi Parameter Monitor

Product Description

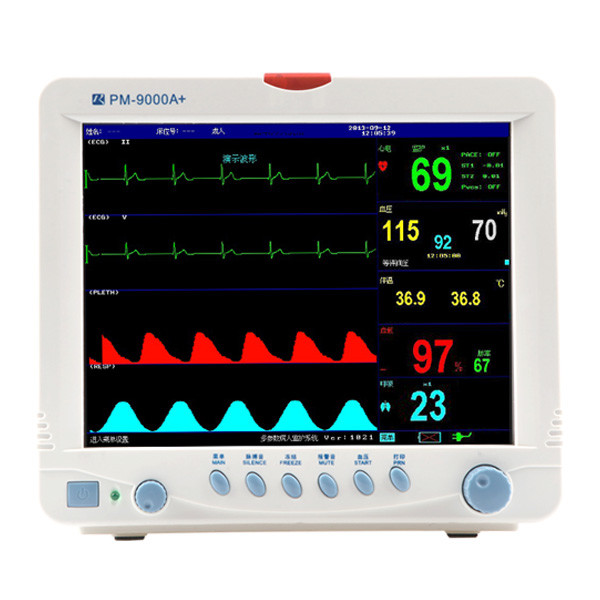

Portable 12.1-inch big screen Pm-9000a + multi-parameter monitor

Details:

1. New high-precision module, high precision measurement parameters, reliable quality, stable performance.



2. Rotating shuttle operation mode, Chinese and English logo button, easy to learn, easy to operate, simple and intuitive.



3. High brightness high resolution 12.1 inch color TFT LCD display.



4. Three-channel ECG waveform, full lead seven-channel synchronous display of ECG.



5. Multiple display interfaces: single lead, standard, large font, full lead, trend chart coexistence.



6. New aluminum alloy internal structure design has good earthquake resistance, meet the mobile environment use.



7. Adopt new digital blood oxygen technology to measure more accurately when weak perfusion and finger shaking.



8.ST segment automatic detection, arrhythmia analysis, drug concentration drop table analysis.



9. New fully isolated floating design, anti-fibrillation and anti-high-frequency electrosurgical interference, meet the operating room, ward and other harsh environment.



NIBP double overpressure protection temperature drift control and other technologies to ensure precision measurement and protect patient safety.



11. Powerful storage capacity, full parameter trend chart data, ecg waveform storage and playback, power failure saving function.



12. Automatic sound and light double alarm, can be arbitrarily set alarm upper and lower limits.



No fan design, dust-free, low power consumption, improve the service life of the instrument.



14. The body is light and strong, easy to carry, suitable for adults, children and newborns.



15. Support wired and wireless networking, support online software upgrade.



16. Optional built-in removable rechargeable lithium battery, AC/DC dual-use, lightweight, energy saving and environmental protection.



17. Optional built-in dual-channel hot-array recorder, real-time printing waveform and icon.



18. It is widely used in bedside monitoring, ICU/CCU, emergency center, home monitoring, etc.



19. Optional wall-mounted bracket, mobile bracket and visiting backpack.





Standard configuration:



One PM-9000A+ multi-parameter monitor host,



Standard five core lead connection cable set,



Standard adult blood pressure cuff set,



Adult blood oxygen probe set,



One set of temperature probe,



One power plug cable,



One ground wire,



An instruction manual,



One set of three certificates.



Optional: Built-in rechargeable lithium battery, dual channel thermal printer, monitor cart/stand/hanger.



Children or newborn wrapped blood oxygen probe, children or newborn blood pressure cuff.



Technical parameters:



ECG ECG



Lead selection: full lead, ⅰ, ⅱ, ⅲ, aVF, aVR, aVL, V1 -- 6 chest lead display



Gain selection: ×1, ×2, ×0.25, ×0.5 four grades



Frequency: 0.5 Hz - 100 Hz



Common mode signal rejection: greater than 70dB



Scanning speed: 12.5mm/s, 25mm/s, 50mm/s three standard files



Accuracy of heart rate: ±5 beats/min



Calibration signal: 1mV (peak value, accuracy ±3%)



ST segment detection: Measurement range (-2.0mV -- +2.0mV)



Use standard: comply with ANSI/AMI EC13-2002 standard



Response time: 1S



Alarm mode: sound and light alarm



Preset range of heart rate alarm :(alarm over preset value)



The upper limit can be adjusted from 1 to 255 times/min



The lower limit can be adjusted from 0 to 254 times/min





NIBP blood pressure



Technique: oscillographic method



Measurement method: Reverse measurement data is more accurate



Measurement unit: mmHg/Kpa



Overvoltage protection: double safety protection



Measurement time: less than 45S



Cuff pressure range: 0-250mmHg



Accuracy of blood pressure measurement: mean error and standard deviation values specified in ANSI/AAMI SP10-2002



Initial charge of cuff: 180mmHg (120mmHg for children)



Cuff follow-up inflation: original systolic +30mmHg



Blood pressure measurement range and error:



Systolic pressure 60 mmHg to 250 mmHg



The average pressure is 45 mmHg to 235 mmHg



Diastolic pressure 40 mmHg to 220 mmHg



Blood pressure measurement error: ± 1.1kpa (±8mmHg) or ±10% whichever is greater



Response time: 1S



Alarm mode: sound and light alarm



Alarm prediction range and error :(alarm over preset value)



The upper systolic blood pressure ranges from 1mmHg to 255 mmHg



The lower limit ranges from 0 mmHg to 254 mmHg



The upper diastolic blood pressure ranges from 1mmHg to 255 mmHg



The lower limit ranges from 0 mmHg to 254 mmHg



Alarm error: ±1 mmHg



Standard: comply with ANSI/AAMI SP10-2002 standard





SPO2 oxygen saturation



Scope: 0-100%



Accuracy: 1%



Resolution: 1%



Pulse rate: 20-250 beats/min



Response time: 1S



Alarm mode: sound and light alarm



Alarm range and error :(alarm over preset value)



The upper limit is 1% to 100%



The lower limit ranges from 0% to 99%





TEMP temperature



Technology: high sensitivity thermistor probe



Temperature measurement range: 20℃-- 45℃



Resolution: 0.1%



Temperature accuracy: ±1℃



Response time: 1S



Alarm mode: sound and light alarm



Preset alarm range and error :(alarm over preset value)



The upper limit is adjustable between 20.1℃ and 45.5℃



The lower limit can be adjusted between 20℃ and 45.4℃



Alarm error: ±1℃



Breathe RESP



Respiratory rate range: 0-60 breaths/min



Accuracy: + / - 1 RPM



Response time: 1S



Gain selection: ×1, ×2, ×4, ×0.5 four grades



Alarm mode: sound and light alarm



Preset alarm range and error :(alarm over preset value)



The upper limit is adjustable between 10-100 beats/min



The upper limit is adjustable between 0 and 99 beats/min



Alarm error: ±1rpm



Printer (optional)



Specification: Dual channel thermoarray recorder



Printing mode: record waveform and text in real time or triggered by events



Resolution: horizontal: 400dpi/vertical: 800dpi



Note: Date (year/month/day)/Time (24 hours)



Optional wall bracket, mobile bracket, visiting backpack





system



Display: 12.1-inch TFT true color LCD screen



Safety standard: LEC601-1 (INTERNATIONAL GB9706.1)
