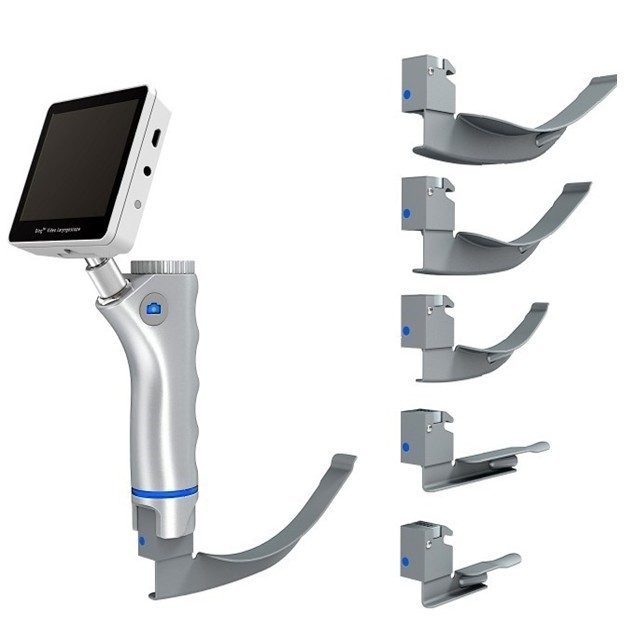

Video Laryngoscope Medical Device Equipment With Reusable Blade 304 Stainless Steel

Video laryngoscope with reusable blade use 304 stainless steel-CE certificate

Product components:

1.3.5 '' Color LCD display

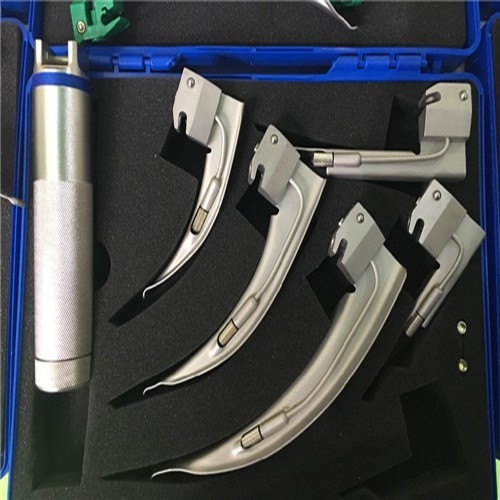

2,reusable blade use 304 stainlesssteel .

3,Internal   rechargeable  lithium-ion  polymer  battery,  With  fullcharge  can continuous use about 300mins,real-time show the battery power

4, User Manual,Certificate of Quality,Warranty

5.Two years warranty,maintenance lifetime 6,Packed by Senior alloy box

Design feature:

Cold light, luminance >=6000Lux

Have  the  functions  of  take  photo,take  video,TF  card  save  data  ect TV  signal  external  function(AV-OUT)

Built-in high resolution camera can provide a real-time view for catheter airway. Display can adjust angle from 0-180°

Study,use and teaching are very simple Operation can be finished in a short time

Technical Specification of the Video Laryngoscope

The type of device:     B                                                 The classof the device :     class  II

1.1  Use Direction:

Long time push the Power On/Off , the Laryngoscope will Power on or off. After Power on, directly enter into the operation situation.

Shortlypush CAM Key, It will take photo, Long time Push CAM Key, It will record a video.

All photos and videos Can be connect to Computerby USB line.

1.2 Factor affect Use.

If the temperature is too Low, should wait about 65s, when the camera on the top is warm up.

 If the patient have too much sputum, should bring out the blade, wipe off the sputum  ,the  re-intubation.

If the power too low, please battery chargeat first.

All parts of the Laryngoscope have not the water proof function, Please pay attention to the water.

Before or after use the Laryngoscope, Please Scrub with alcohol or sterile water

1.3  Every  4  months  please  check  at  the  function  of  each  Part  of  the  Video Laryngoscope.

1.4 Safety Tips:

It should  be  avoid  any  bad  affect  such  as  electromagnetic  radiation  or  high temperature.

When it in transportation , should be handle with care. Avoid the Lash, Violent vibration, and the humidity.

If the device have some Obvious dysfunction, shouldpaste the warningsignal on the  device,  until  it be  repaired  well.

The Repair can be just operated by our factory’s expert.

The device can just the use the power adapterproduced by our factory.

Checkall parts is clean and installok, and have the blade,then can push power On to start work.

1.5 Notice:

This brochure shouldput with device. Read this brochurebefore use.

The user should clearlyknow how to operatethis video laryngoscope The  sterilization according to this brochure

The user can’t Remove the batteryhimself.
