Digital Single Ecg Machine 1 Channel Heart Monitoring Device

Name: Digital Single Ecg Machine 1 Channel Heart Monitoring Device
Brand: CONTEC
SKU: ECG100G, ECG-100G
Price: 150.00 USD
Availability: InStock
Rating: 4.6 (175 reviews)

Minimum Order Quantity :	1PCS	Price :	$150.00 - $200.00/Units
Packaging Details :	Packing Carton: 405300195mm	Delivery Time :	about 5 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	5000 Unit/Units per Month

Place of Origin:	China	Brand Name:	CONTEC
Certification:	CE,ISO13485	Model Number:	ECG100G, ECG-100G

Detail Information
Power Source:	Electric	Warranty:	1 Year, 12-month For Main Unit And 6-month For Accessories
After-sale Service:	Repair And Replacement	Power Supply Mode:	Built-in Battery
Material:	Plastic	Shelf Life:	1years
Quality Certification:	Ce	Instrument Classification:	Class II
Safety Standard:	None	Type:	Blood Testing Equipments
Product Name:	Ecg Machine	Product Type:	Electrocardiograph Ekg
Certificate:	CE	OEM/ODM:	Yes
Port:	Beijing/Tianjin/Shanghai/Shenzhen
High Light:	digital ecg machine 1 Channel , digital electrocardiograph machine , Digital Single Ecg Machine

Product Description

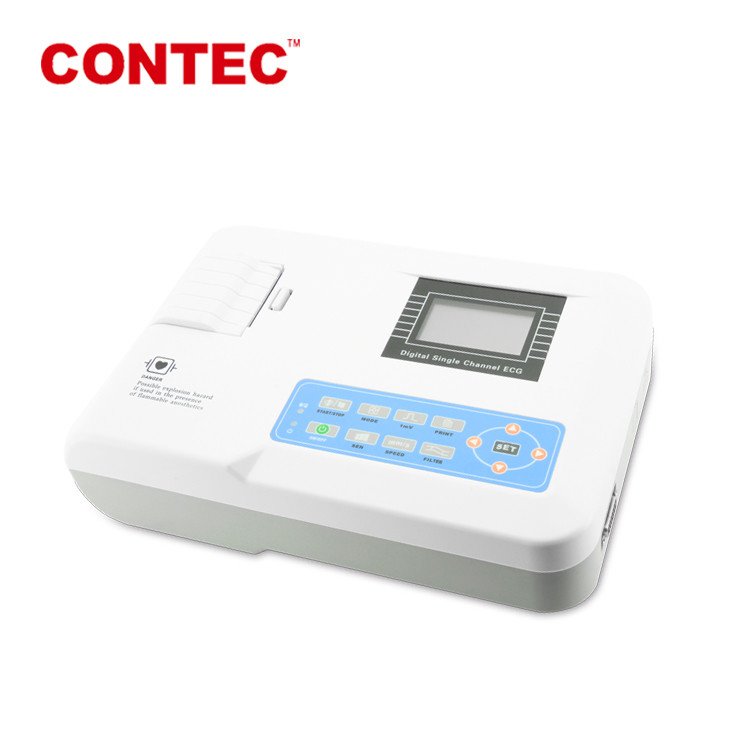

CONTEC ECG100G Digital Single ecg machine 1 channel heart monitoring device

Certificate: CE Approved

Features:

1. High-resolution thermal printing array system.

2. Frequency response is as high as 150Hz.

3. Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status.

4. High resolution digital filter inhibits baseline drift without affecting ECG waveform.

5. One-touch operation.

6. Concept of floating input circuit meets IEC safety standard.

7. Rechargeable battery supporting more than 50 patient examinations.

8. Lead Standard: 12 leads.

Specifications

Input Circuit	Floating; Protection against Defibrillator effect
Lead	Standard 12 Leads, Lead change automatically
Patient Current Leakage	<10μA
Input Impedance	≥10ΜΩ
Calibrating Voltage	1mV±3%
A/D Conversion	12 bit
Frequency Response	0.05Hz~150Hz (IEC)
Time Constant	>3.2seconds
CMRR	>80dB >100dB (with filter)
EMG Filter	35Hz (-3dB) / 25Hz (-3dB)
Sensitivity	1/2, 1, 2 (cm/mV), Conversion Deviation≤5%
Recording System	Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec )
Paper Speed	25, 50mm/s±3%
Recording Paper	50mm,20m, high-speed roll
Input Circuit Current	≤50nA
Safety Standard	IEC class I, type CF
Power Supply	AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery
Skin Voltage Tolerance	±300mV
Noise Level	<15uVp-p
Dimensions	310mm×230mm×70mm
Dimension of Packing	400mm×280mm×160mm
Weight	2.75kg

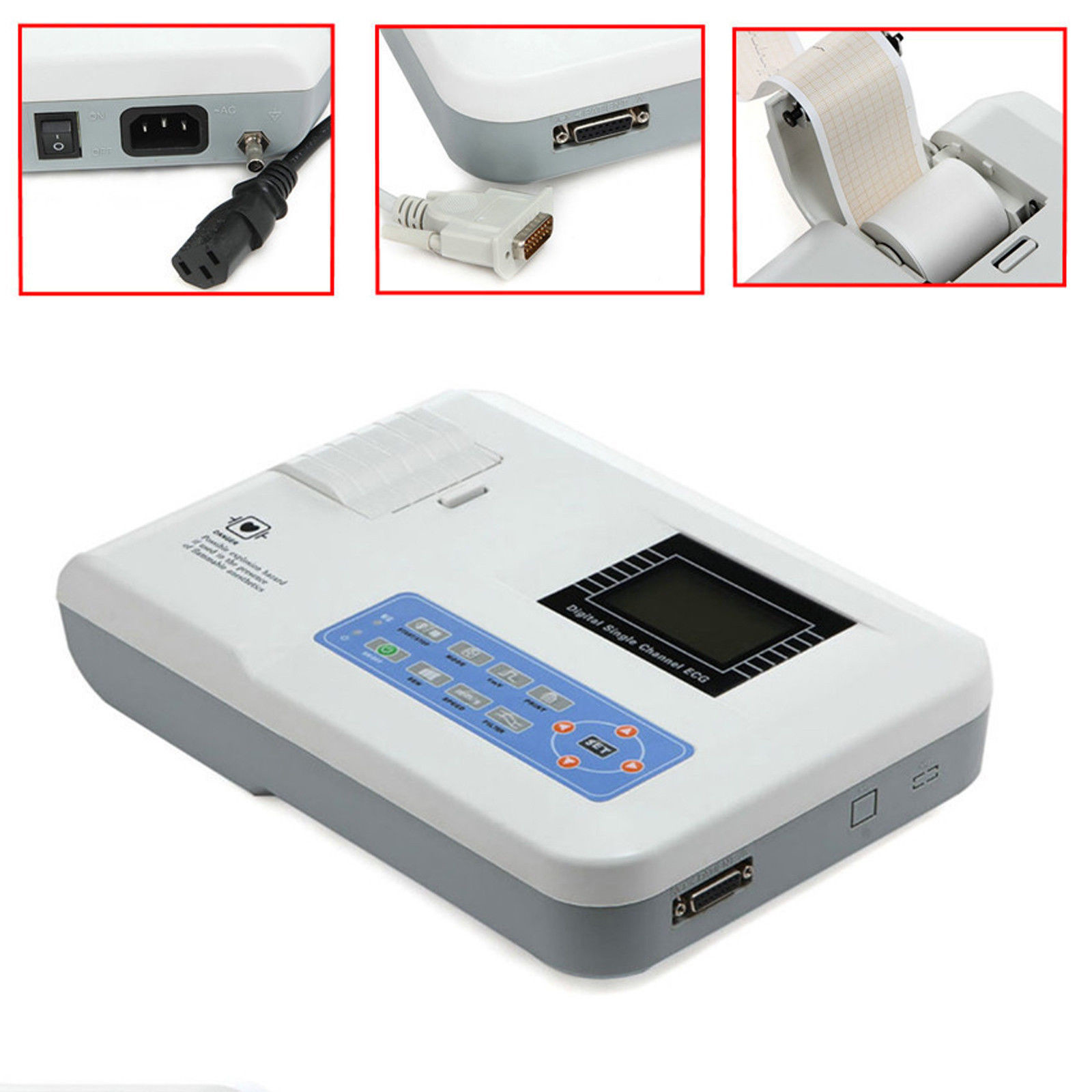

Digital Single Ecg Machine 1 Channel Heart Monitoring Device 0

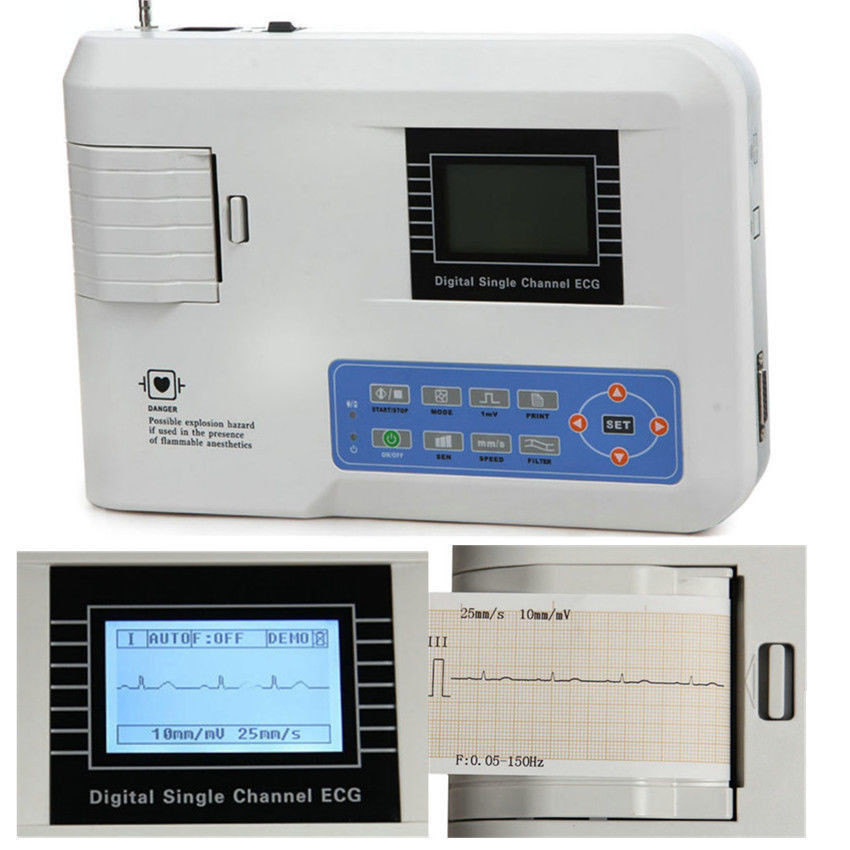

Digital Single Ecg Machine 1 Channel Heart Monitoring Device 1

CERTIFICATEION :

CE , ISO

Standard Configuration:

1SET * ECG machine
1 SET* Patient Cable
1 Piece* Power Cable
1 piece*Power charger
1 roll* Printing Paper
1 set * Limb Electrodes
(4pcs/set)
1 set* Chest Electrodes
(6pcs/set)
1copy* Operation Manual
