16 Channel Physical Examination Instruments Ambulatory Dynamic Eeg Machine Portable

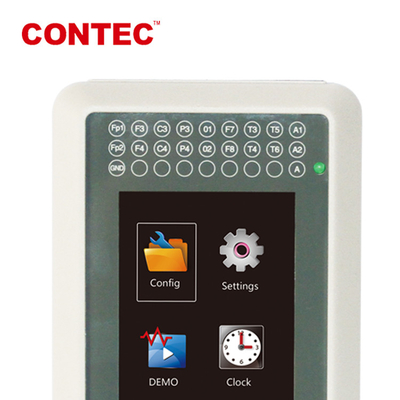

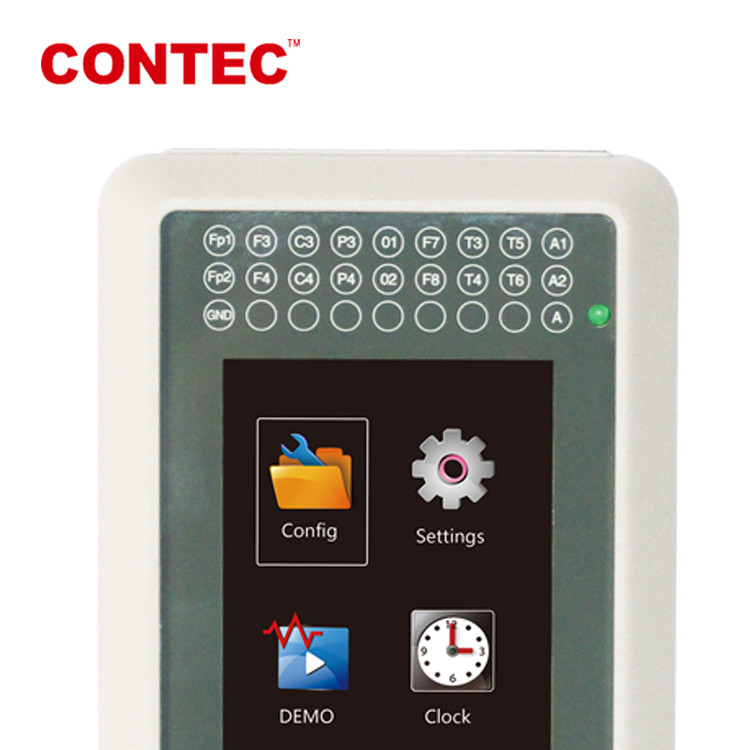

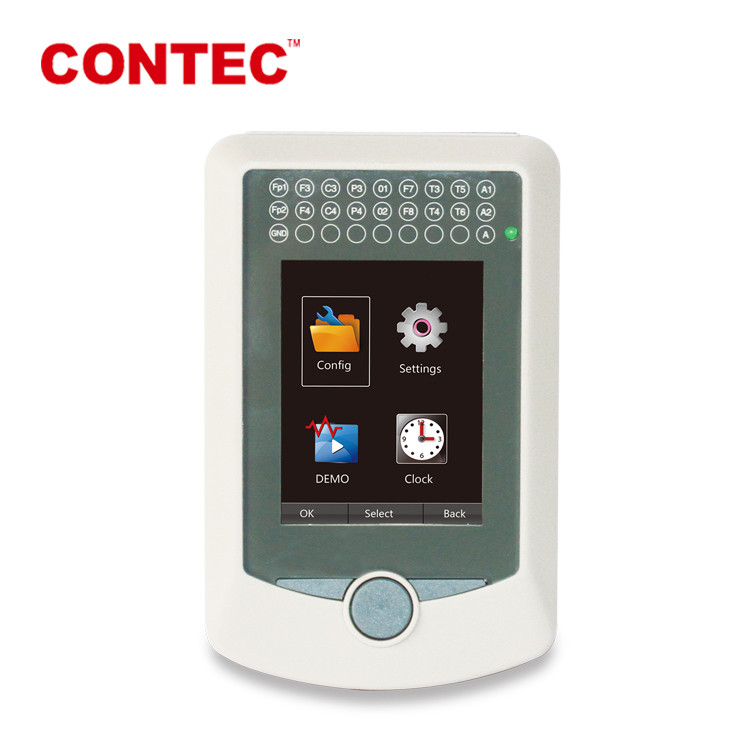

8-inch Ambulatory EEG(CMS4100)

Main Technical Index
normal working conditions
a.The range of environment temperature:5°C~40°C
b. Relative humidity range:≤85%
c.Voltage range:direct current 3.5~4.2V
d.Atmospheric pressure range:70 kPa~106 kPa
Calibrating voltage:sine signal 5mm/50uv;deviation:±5%;
Sensitivity:10uV/mm±5%
Noise level:5uV
Common mode rejection ratio(CMRR):≥90dB6,Frequency Characteristics:Instrument input 0.8Hz~30 Hz ;-3 dB,50uV sinusoidal AC signal should not be distorted;
scanning speed: 30mm/s±5%
EEG waveforms of 16 leads display on the screen
A succession of more than 24 hours collecting record
Product security type: Built-in power type B
Transport and storage conditions
a)The range of Environment temperature: -20°C~55°C
b)Relative Humidity range: ≤85%
c)Atmospheric pressure range: 70kPa~106kPa
Function
 The system integrates acquisition amplification, filters and A/D resolution of signal into one module with SMD technology, which improves the reliability and antijamming ability of the system.
 24-hours carrying record; people can have normal activity; it can monitor easily and can grap the concealed and moment EEG pathological waveform.
 Electrode connection mode can be set at will.
 The background color and the color of all the evokes events waves can be revised at any time.
 Synchronous gather of wave which can detect the connection of electrode.
 Editing of the EEG wave’s segments, select segment of EEG wave at random to analyze and store, and also can select many segments to analyze.
 Provides 24-hour whole pathological wave trend diagram, and you only need to click the trend graph to scan the current EEG wave.
 Can make power spectrum analysis and compression spectrum matrix by selecting any segment of the wave within 24 hours.
 Based on the principle of wavelet transform and meshwork of nerve AI spinous sharp wave automatically analysis system, providing the spike wave, sharp wave, slow wave, spinous sharp wave and spinous slow wave data statistics.
 With the function of three-dimensional of BEAM and general BEAM.
 Management of the EEG database. Support MO or CD-RW archive.
 Perfect records management function, with rapid cases lookup functionality
 operating system of WINDOWS XP, make the operation simple
 USB interface, ensure the transmission speed
InfoChannels   16
Capacity   2(G) SD Card
Sampling Rate  200
Sampling accuracy(bit) 12
EEG channels  16
Socket   USB2.0
Dimension  127(L) ×80.5(W) ×31.5(H) mm
Screen   Yes
