Sonoscape X5 Medical Ultrasound Instruments Machine with Excellent Image Quality

Name: Sonoscape X5 Medical Ultrasound Instruments Machine with Excellent Image Quality
Brand: Sonoscape
SKU: X5
Price: 1 USD
Availability: InStock
Rating: 4.9 (107 reviews)

Minimum Order Quantity :	1pc	Price :	$1,000.00 - $6,500.00/Units
Packaging Details :	PACKING: STANDARD EXPORT PACKAGE	Delivery Time :	about 15 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	5000 Unit/Units per Month

Place of Origin:	Guangdong, China	Brand Name:	Sonoscape
Certification:	CE,ISO13485	Model Number:	X5

Detail Information
Power Source:	Electric	Warranty:	3 Years
After-sale Service:	Onsite Training	Material:	Other
Shelf Life:	3 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	GB2626-2006
Properties:	Sonoscape X5 Medical Ultrasound Instruments	Application:	For Both Human And Animals
Type:	Portable Laptop Type	Display Mode:	B, 2B, B/M, M, 4B, CFM , PW, PDI, CW
Monitor:	15.6 Inch LCD Screen	Frame Rate:	750 Frames/sec Or More
Display Gray Scale:	256 Levels	Probe Elements:	Up To 192
Language:	Chinese/English/Russian/Spanish/French/Arabic/Vietnamese Etc	Trolley And Suitcase:	Optional
Port:	GUANGZHOU

Product Description

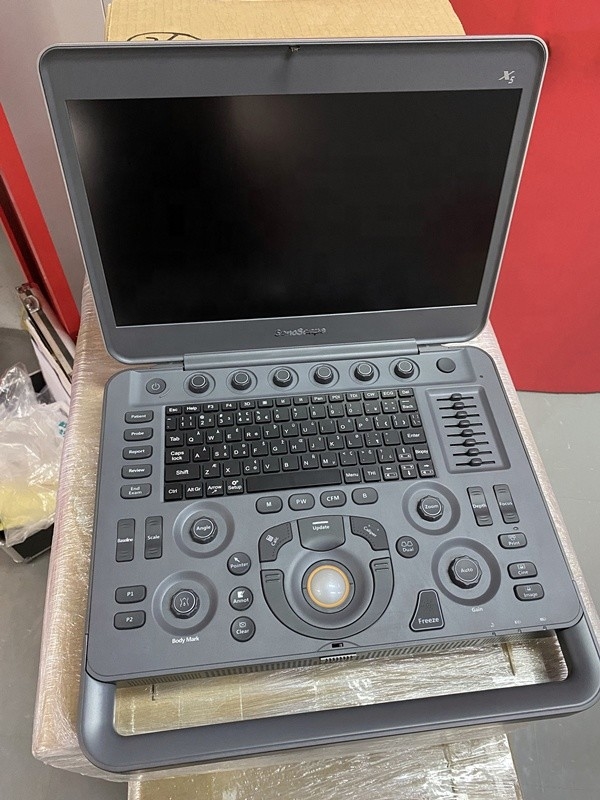

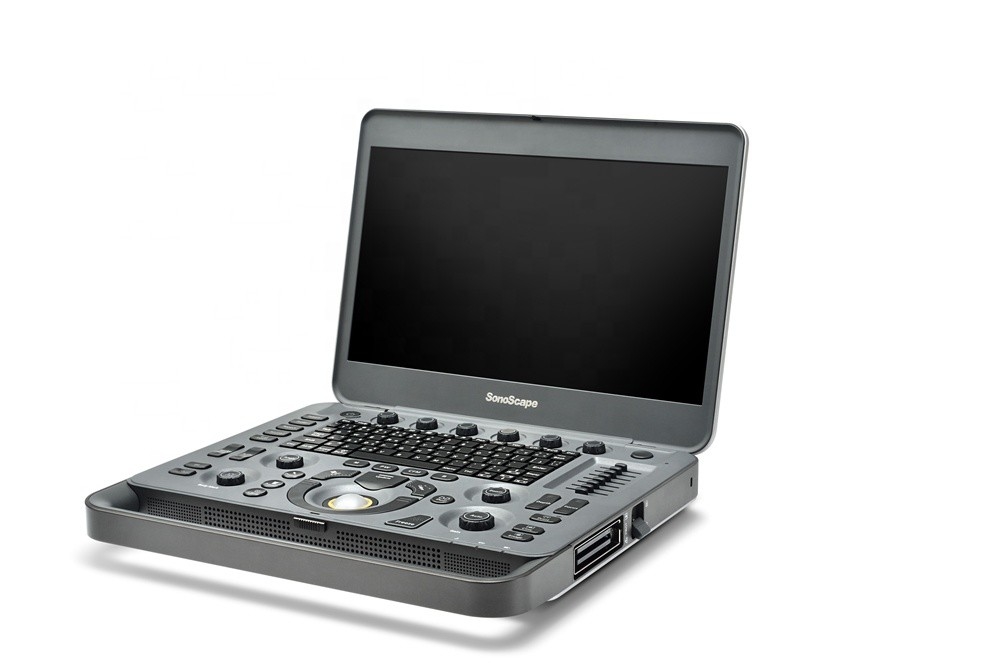

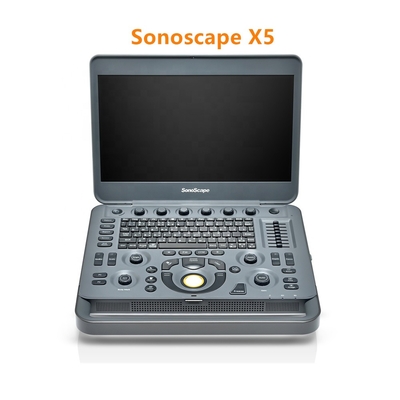

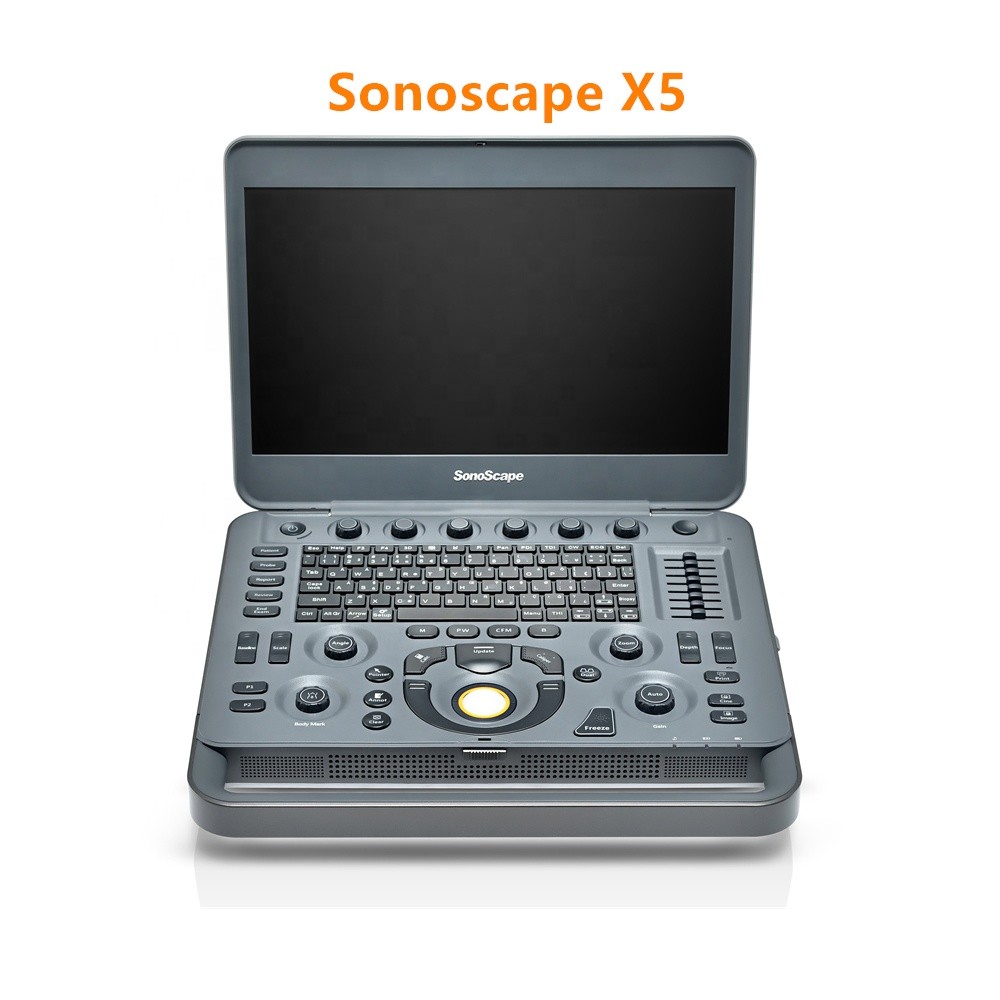

Sonoscape X5 Medical Ultrasound Instruments Machine with Excellent Image Quality

Sonoscape X5 portable ultrasound machine image is clear, powerful, can be used in abdominal, obstetrics, small parts, vascular, urology, prostate, endovascular surgery, cardiac and pediatric examination.

Two versions available: for human and for vet.

This mid- range ultrasound machine has image quality similar to the SonoScape S9 and SonoScape S8 Expert, but is designed more for
general imaging, radiology, OB/GYN, MSK, and vascular imaging. Similar products to the X5 include the Mindray M5, Mindray M7,
Chison Q9, Chison EBit 60, Chison EBit 50, and GE Logiq e portable ultrasound machines.

Applications & Advantages

Extraordinary Mobility:

15.6 inch high resolution LED monitor Anti-reflective screen

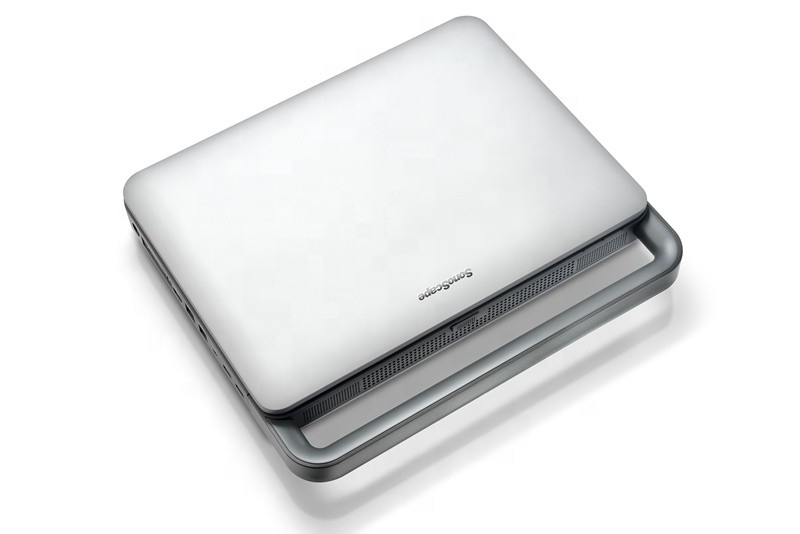

Super Slim 5cm

Excellent Image Quality (Innovative Techniques):

Dynamic Multi-beam Imaging C-Field Beam Spatial Compound Imaging μScan Pure inversion harmonic imaging Extreme User Friendly:

Wide range folding angle and viewing angle

Quick boot up Auto brightness adjustment Noiseless system: <37dB 1.5 hours continuous scanning

Extensive Applications:

Full Range Transducers

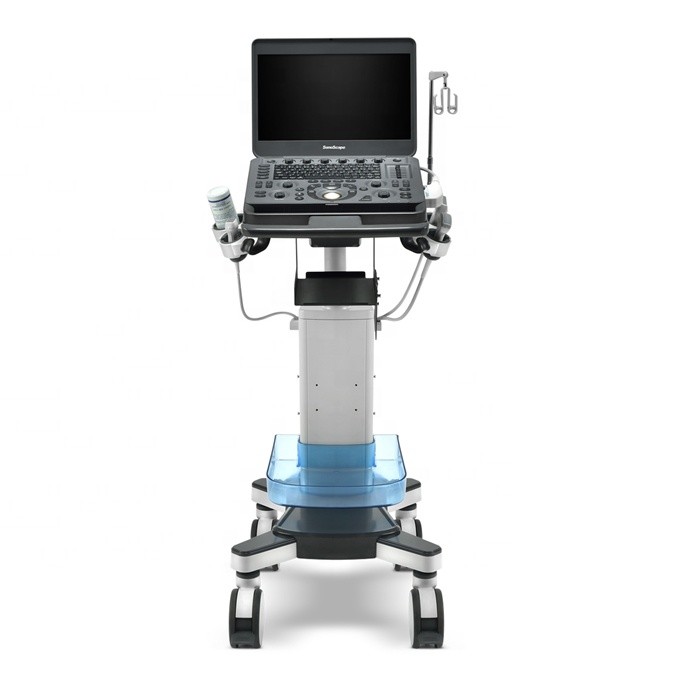

Streamlined Information: Integrated trolley with height adjustment Locking System Extended connector to 3 probes

Comfortable backpack Extended transducer connector DICOM Wi-Fi and Bluetooth wireless connection SSD Hard Drive

Clinical Images

Detailed Parameters

The main technical specifications:
Probe	Convex probe, High frequency linear probe, Trans-vaginal probe, Phased array probe, Rectal linear probe etc.,
Convex probe	3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
High frequency linear probe	L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm
Trans-vaginal probe	6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
Micro convex probe	C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm
Phased array probe	3P-A (Cardiac, Transcranial), 1.0-6.0MHz
Languages	Chinese/English/Russian/Spanish/French/Arabic/Vietnamese/Portuguese/Indonesian etc.
Imaging Modes	B/ 2B/ 4B/ M/ THI/ PHI/ CFM/ PDI/ DirPDI/ PW/ CW
Display	15.6" High Resolution LCD color monitor (with auto-adaptive LED backlight)
Certificates	CE, ISO
Other Features	B/W video printer: SONY UP-D897/SONY UP-X898MD Optional trolley and suitcase Transducer extender SSD Hard Drive
Battery	Built-In
Storage	USB 2.0/Hard Disk 500 G
Advanced imaging Technology:
Exclusive Employ Double Wave Form Imaging Technology Speckle Noise Reduction Technology Tissue-specific Imaging Technology Tissue Harmonics Imaging Technology		+5 ℃ - +40 ℃
