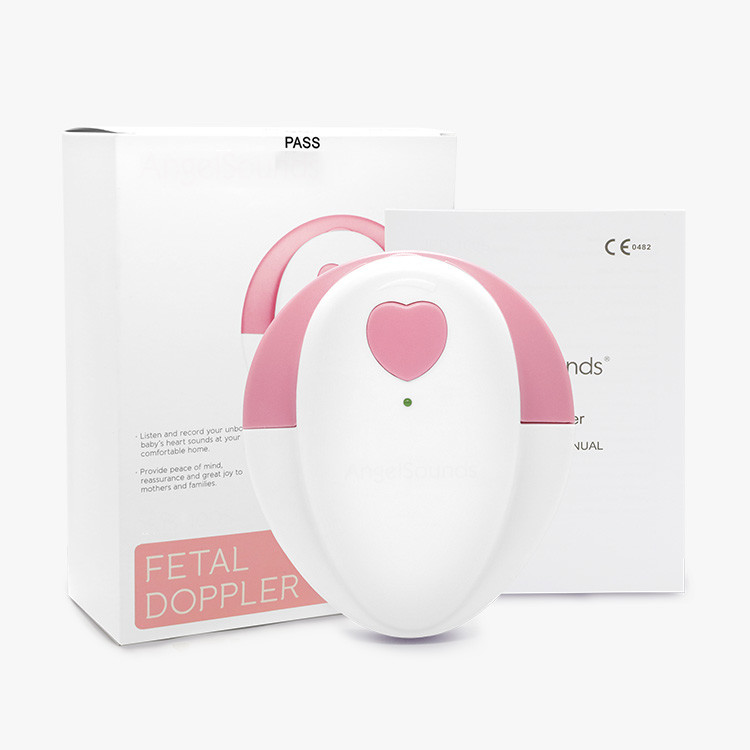

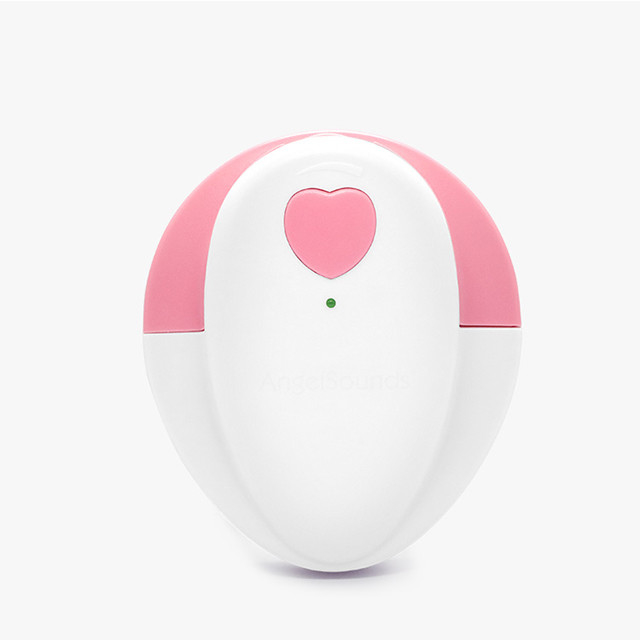

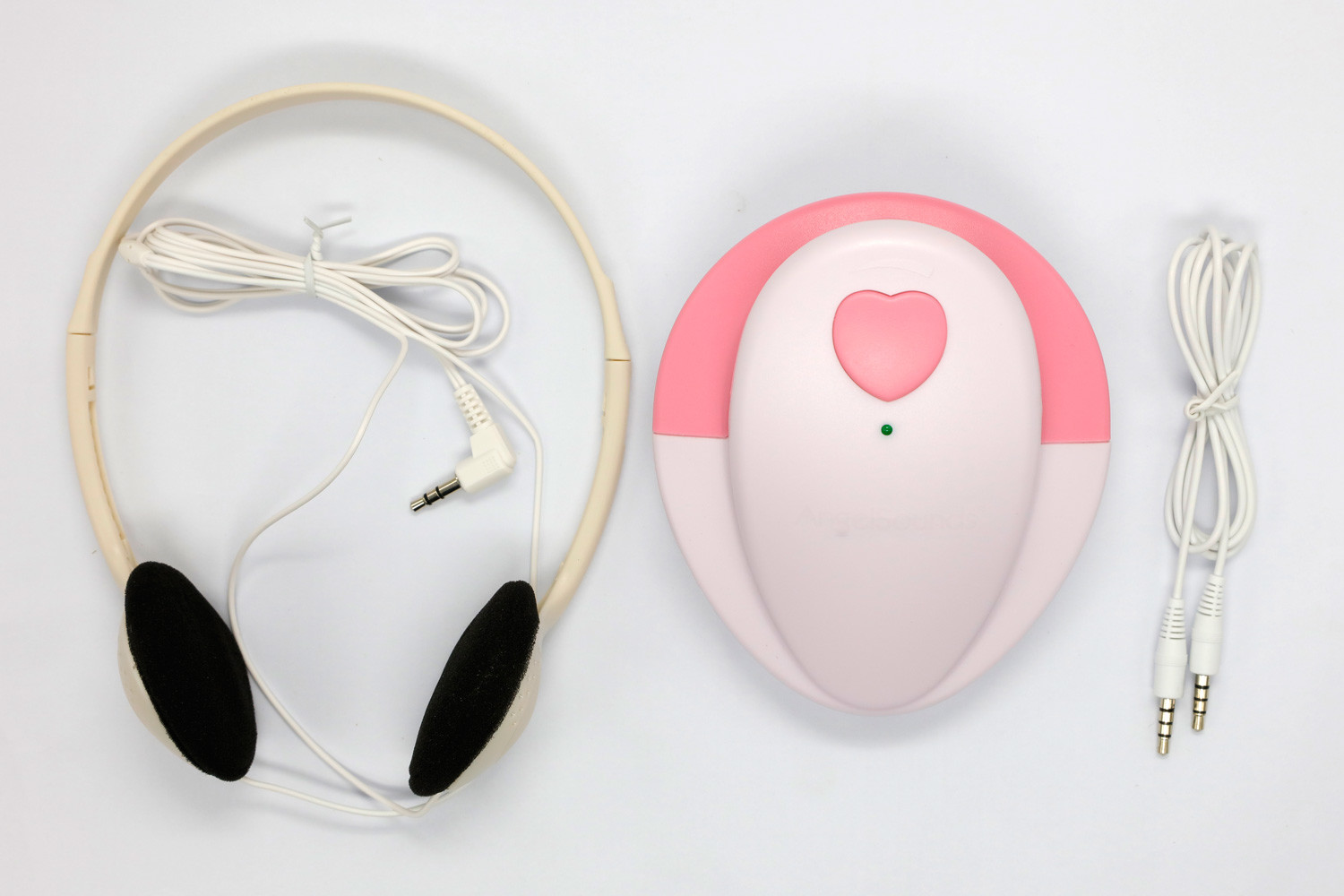

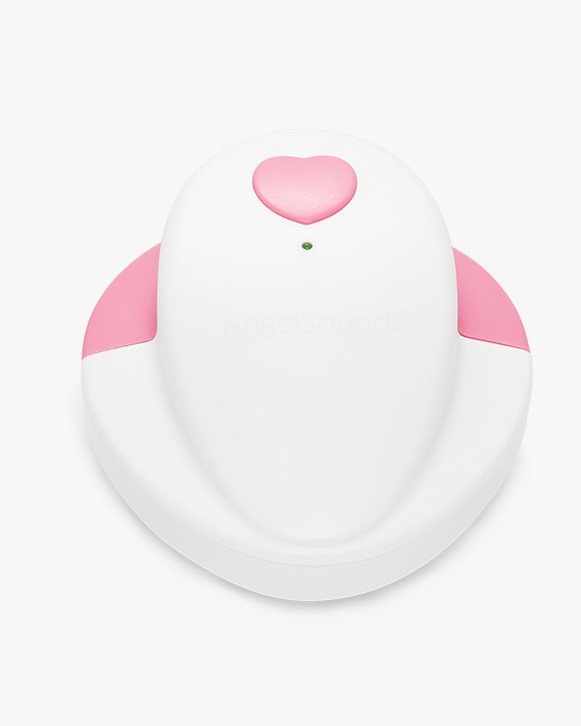

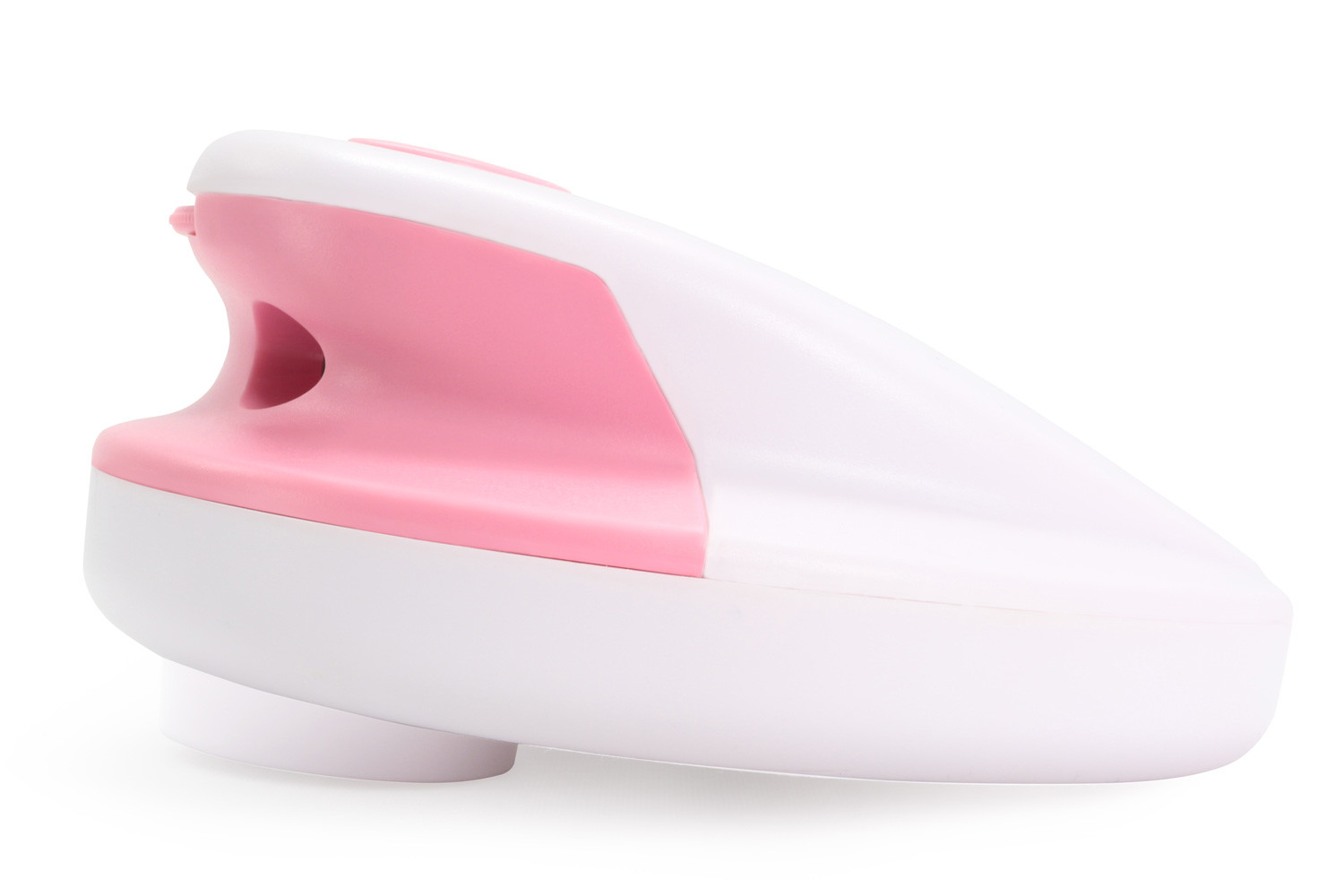

Medical Angelsounds Fetal doppler for sale

Contact Now

Medical Angelsounds Fetal doppler for sale

Minimum Order Quantity :	100pcs	Price :	$5.90 - $19.90/Units
Packaging Details :	carton package	Delivery Time :	about 5-8 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	10000 Unit/Units per Week

Place of Origin:	China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	JB02

Detail Information
Warranty:	2 Years	After-sale Service:	Online Technical Support
Instrument Classification:	Class II	Product Name:	Medical Angelsounds Fetal Doppler For Sale
Application:	Fetal Sound Diagnostic	Certificate:	CE ISO
Battery:	AAA*4	Color:	Pink
Display:	COLOR	Probe:	ONE
Function:	Hospital Medical Diagnose	Measurement:	Real Time
Frequency:	3.0mhz	Type:	Portable Fetal Doppler
Port:	GUANGZHOU

Product Description

}PRODUCT DESCRIPTION

The product is a lightweight, portable detector. It is designed to meet your detecting and hearing needs by providing advanced
detecting functions and a full range of sound of the fetal heartbeat.

The product is mainly used to detect the sound of the fetal heartbeat (SFH).

The growth and development of a fetus can be found out through examination of these indices. It is applicable for department of
gynecology and obstetrics and clinic daily.

SPECIFICATIONS
Note: The following specifications are subject to change and are only noted as a point of reference.

ULTRASOUND

Ultrasonic emitting frequency:
3MHz
Overall sensitivity at the distances 200mm from the face of the transducer
(Doppler frequency:300±50Hz,Targe velocity: 10cm/s~40cm/s)
≥90dB
Spatial-peak temporal-peak acoustic pressure:
<1MPa
Output power:
<20mW
Effective area of the ultrasonic transducer active element:
4.92cm2
The acoustic coupling medium for normal use:
ph :5.5~8, Acoustic impedance: 1.5*106~1.7*106Pa·s/m
AUDIO OUTPUT

Audio Output Power:
<0.2 W
Audio out socket:
Φ3.5mm
BATTERY

Battery Voltage:
9V
Type:
IEC6F22 9V alkaline
5.2 MODE OF OPERATION
Continuous operating
5.3 PHYSICAL DIMENSIONS
104mm (W) x 120mm (D) x 61mm (H), Wt: 0.14kg (including battery)

W –4.1 in, D –4.7in, H –2.4 in, Wt: 31lbs (including battery)

5.4 ENVIRONMENTAL REQUIREMENTS
OPERATING CONDITIONS
Temperature: 5°C to 40°C
Humidity: <80% RH, non-condensing
Atmospheric pressure: 86kPa to 106kPa
STORAGE AND SHIPPING CONDITIONS
Temperature: 20°C to 55°C
Humidity: 10% 93% RH, non-condensing
Atmospheric pressure: 50kPa to 106kPa
