Cheap bone densitometer machine for radius BD09

Name: Cheap bone densitometer machine for radius BD09
Brand: SUCE
SKU: BD09
Price: 1 USD
Availability: InStock
Rating: 4.9 (200 reviews)

Minimum Order Quantity :	1pc	Price :	$1,000.00 - $5,000.00/Sets
Packaging Details :	ultrasound bone densitometer with standard export package	Delivery Time :	about 5-8 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	100 Set/Sets per Month ultrasound bone densitometer

Place of Origin:	Guangdong, China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	BD09

Detail Information
Warranty:	1 Year	After-sale Service:	Online Technical Support
Instrument Classification:	Class II	Type:	Ultrasound Bone Densitometer
Item:	Cheap Bone Densitometer	Measurement Parts:	Radius
Measurement Theory:	Critical Angle Side Wave Theory	Measurement Parameters:	SOS, T-score
Measurement Time:	<25s	Probe Frequency:	1.20MHz
Main Unit Weight:	2kg	Port:	Guangzhou

Product Description

Princeiple of the portable bone densitometer BD09

Measurement method: full dry type measurement along the bone axis, no radiation, suitable for various population detection (children, pregnant women, adults and the elderly) detection age range 0-100 years old. The inspection program is fully automatic. The probe detection principle is four-chip bidirectional transmission and reception, measuring bone propagation sound velocity (SOS), bone mass index (BQI), T value, Z value and other data. Professional independent research and development software, can provide software rights certificate.

Measurement position	Radius (BD09)
Measurement theory	Critical Angle Side Wave Theory
Ultrasound Parameters	SOS, T-score
Other parameters	T-score, Z-score, Skeletal age, BQI, RRF, EOA
Probe frequency	1MHz±15%
Measure time	Single ≤ 25s, Repettion ≤ 75s
Operation system	windows XP or above
Operating temperature	5-40℃
Operating humidity	Relative humidity ≤ 80%
Power requirement	AC220V±10%,50Hz±1Hz
Suitable population	Pregnant women, Baby, Children, The elderly

1. Measurement site: measurement of the humerus

2. The ultrasonic probe meets the biological performance requirements, and the product has toxicity test; the cell survival rate is not less than 70%;

3. Probe: Handheld broadband focusing probe, array multi-receiving, high precision, multi-chip. High-sensitivity ultrasonic transducer material and multi-core coaxial shielding plug are used to automatically shield and eliminate soft tissue interference, ensuring the accuracy and repeatability of the detected data.

4. Real-time visual probe and skin contact state, probe and bone parallelism, easy to quickly correct detection methods, improve detection efficiency.

5. The center working frequency of the ultrasonic probe; the broadband probe, the frequency is 1.00MHZ, the error range is ±15%, and the actual test result is within ±4%. More penetrating power, accurate measurement, and adapt to people of different ages.

6. Bone sound velocity (SOS) measurement range: 2100-4800m / s

7. Flexible and convenient data connection mode, USB connection PC interface, plug and play, convenient and flexible;

8. Ultrasonic speed SOS measurement accuracy: ≤ ± 1.5%, the actual test results are within ≤ 0.36%, Ultrasonic speed SOS test accuracy: ≤ ± 0.4%, the actual test results are within ≤ 0.18%, Ultrasonic speed SOS test repeatability: ≤ 0.15%, the actual test result is within ≤ 0.10%;

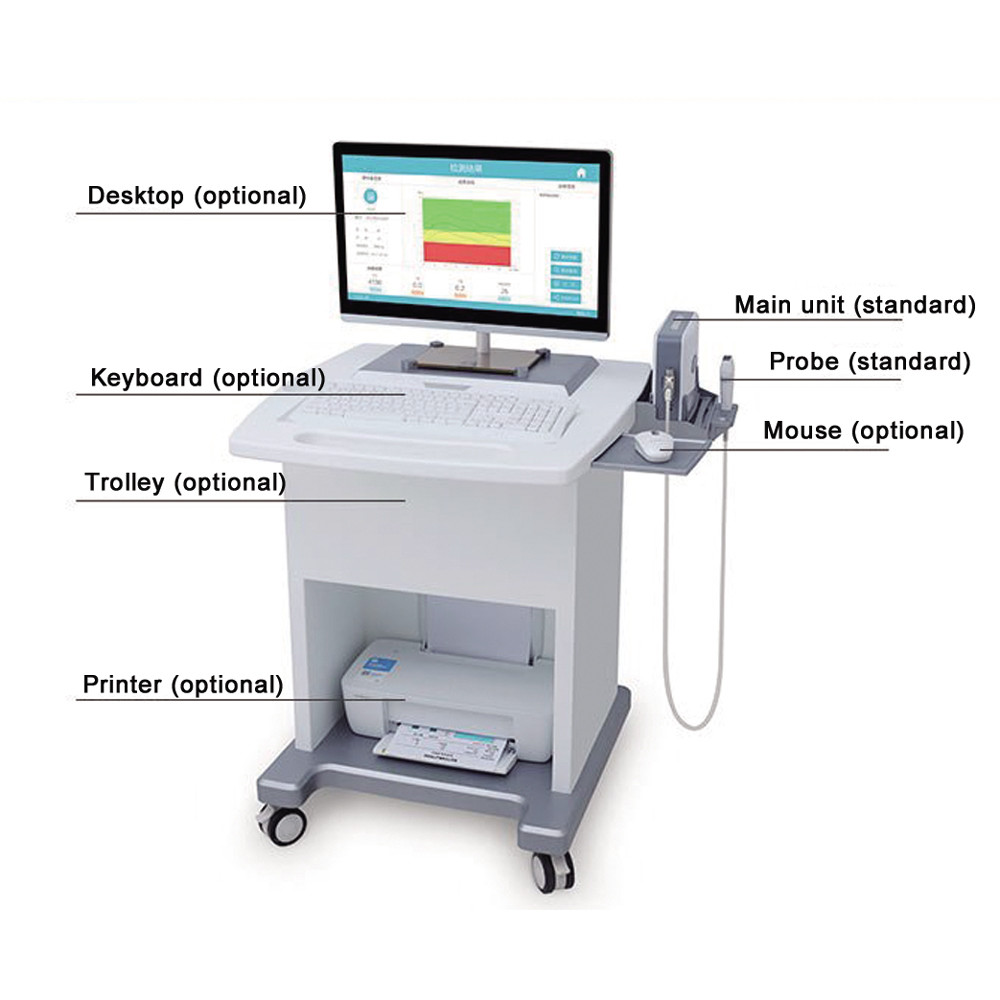

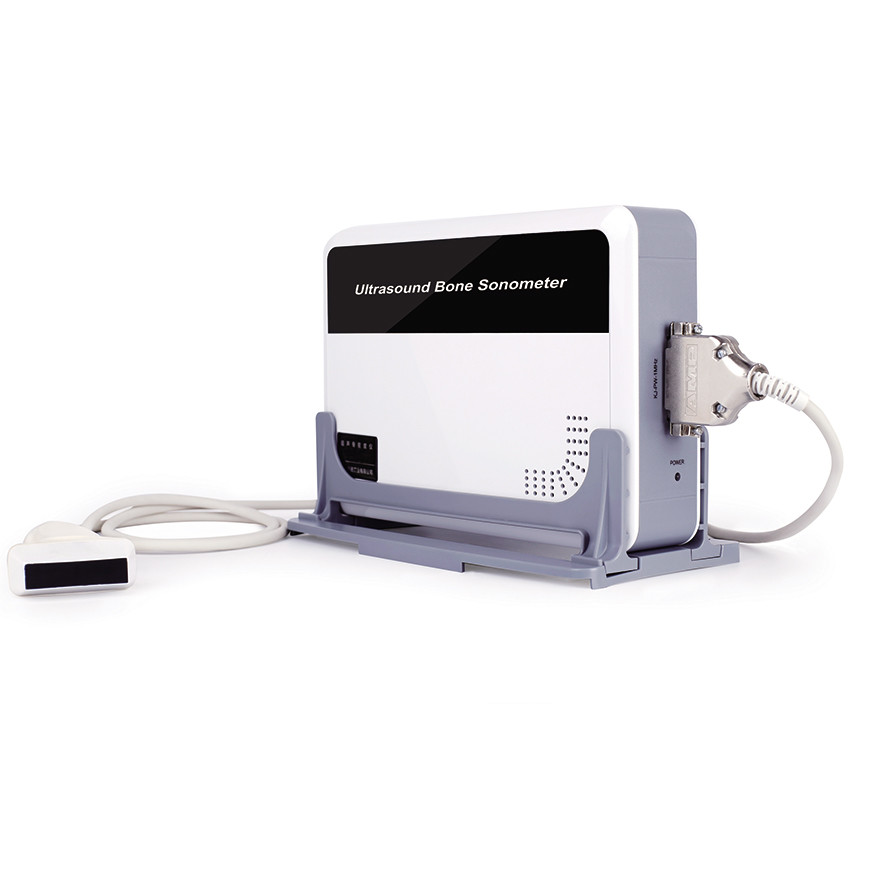

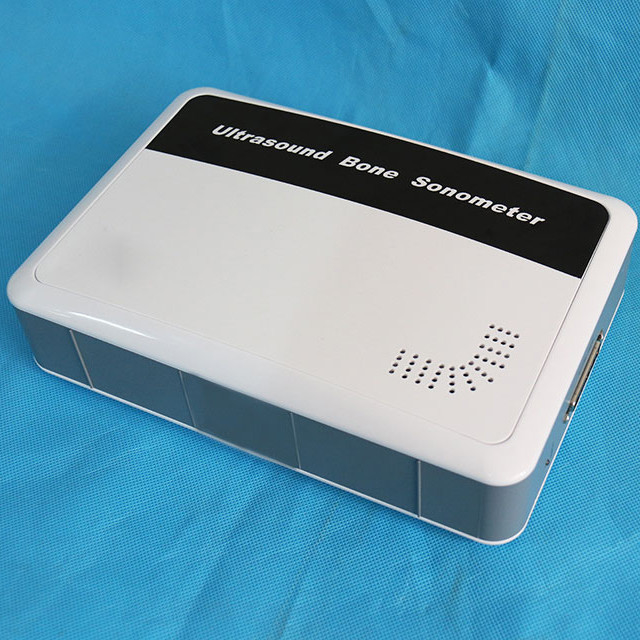

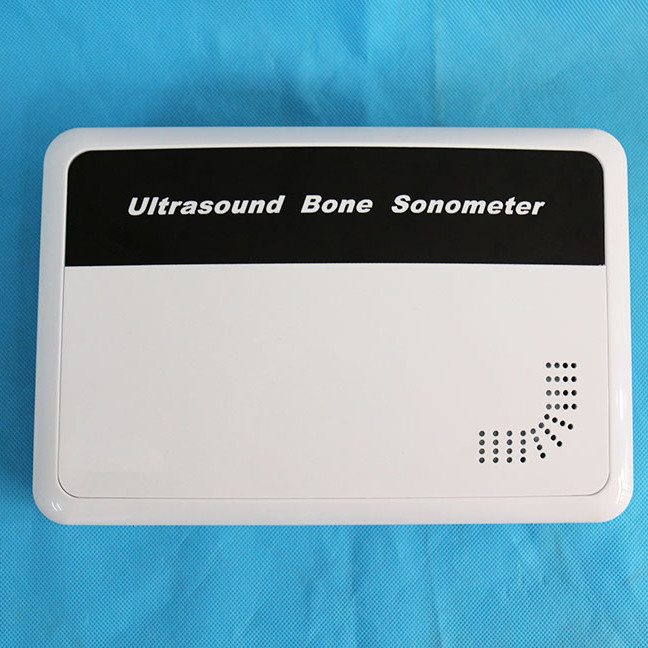

Detailed Images

Keyboard

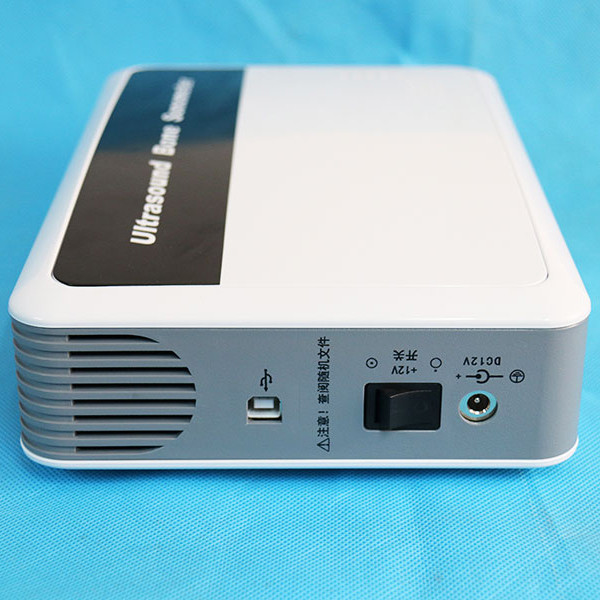

Outer connection

Tag:

Cheap bone densitometer machine for radius BD09

Princeiple of the portable bone densitometer BD09

Keyboard

Outer connection
