Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe
Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe
Contact Now

Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe

Minimum Order Quantity : 1pc Price : $599.00 - $1,599.00/Pieces
Packaging Details : standard wooden box Delivery Time : about 5-8 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 1000 Piece/Pieces per Month
Place of Origin: China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: MU01

Detail Information
Properties: Imaging Diagnosis Type: Ultrasonic
Instrument Classification: Class I Warranty: 1 Year
After-sale Service: Online Technical Support Product Name: Handheld Ultrasound
Display: 6 Inch LCD Touch Screen Application: Abdomen Obstetrics Gynecology Urology Cardiology Small Parts Vascular
Battery: Built-in Lithium Battery Support System: Windows, Android. IOS And UNIX
Max. Depth: 300mm Weight: 260g
Packaging Size: 23*13.5*8.5 Cm Frequency: 2-5Mhz
Certification: ISO9001 ,ISO13485 , CE

Product Description



Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe


Product Description
Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 0



Overview:



It is a handheld, pocket-sized ultrasound tool that provides real-time grayscale anatomic and color Doppler blood flow images with touch screen.
It is the preliminary screening tool for you—from patient to patient—within your primary, critical, or specialty care clinical environment.


Benefits:

1.Detect pericardial effusion, chest fluid or internal bleeding at ER or in ambulance, enabling prompt initiation of treatment

2.View fetus as they grow

3.Detect fetal heart beats

4.Monitor the amount of Amniotic fluid during delivery

5.Find plaque in Carotid, avoid stroke before it strikes

6.Place lines in veins with visual confidence

7.Find nodules in thyroids, livers or breasts during screening

8.Monitor stones in kidneys, gall bladders and bladders

9.Verify bone fractures without X-ray



Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 1

Convex array 2-5MHZ


Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 2

Linear array 5-10MHZ


Clinical Application
Clinical Applications:
* Anesthesia
* Line Placement (CVC, PICC)
* Pain management
* Point-of-Care(POC)
* Vascular Access
* Primary Care
* Emergency & ICU
* General Practitioners
* Urological
* OB/GYN
* Abdominal
* Pediatric Scanning
Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 3
Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 4
Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 5
Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 6
Technical Parameters





Convenient work flow and excellent imaging quality

Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 7
Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 8
Product Description
Handheld Ultrasound Scanner
Monitor
6 inch LCD high-resolution (1280*720) full touch screen
Probe Type
80 elements
Frequency
Convex array 2-5MHZ / Linear array 5-10MHZ
Displaying Mode
B, M,C,B+B,B+M
Cine-loop
1024 Frames
Frame Rate
Convex:16fps / Linear:24ps
Depth
Convex:≤200mm / Linear: ≤70mm
Grayscale
256 level
Gain
Convex: 0~150dB adjustable
Linear: 0~120dB adjustable
Image Processing
Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc.
Power
Built-in battery(5400mAh) to support 2h for continuous scanning
Image Format
JPEG, DICOM
Language
Over 60 different language including English, Spanish, German etc.
Measurement
Length, Area, Arrow, Angle, Perimeter, Text.
Camera
5M auto focus
Wireless Connection
WIFI, BLUETOOTH,3G/4G(LTE,WCDMA/EDGE/GPRS/GSM)
Memory
64GB
Connection Interface
Micro USB2.0, HDMI,3.5mm headphone jack,
Operating System
Android
Printer
WIFI printer
File Management
Patient file & image file
Cloud
Cloud image storage, cloud file management, standard API & SDK interface, Information sharing platform
Technical Training
Online and offline tutorial, self-built online training material
Remote Software Update
Yes
Size
165*85*23mm
Weight
Convex:570g / Linear:550g
Standard Configuration
Main unit (Transducer included): 1pc
USB wire: 1pc
Adapter: 1pc
Carrying bag: 1pc
Bag of gel(20g): 1pc
Detailed Images

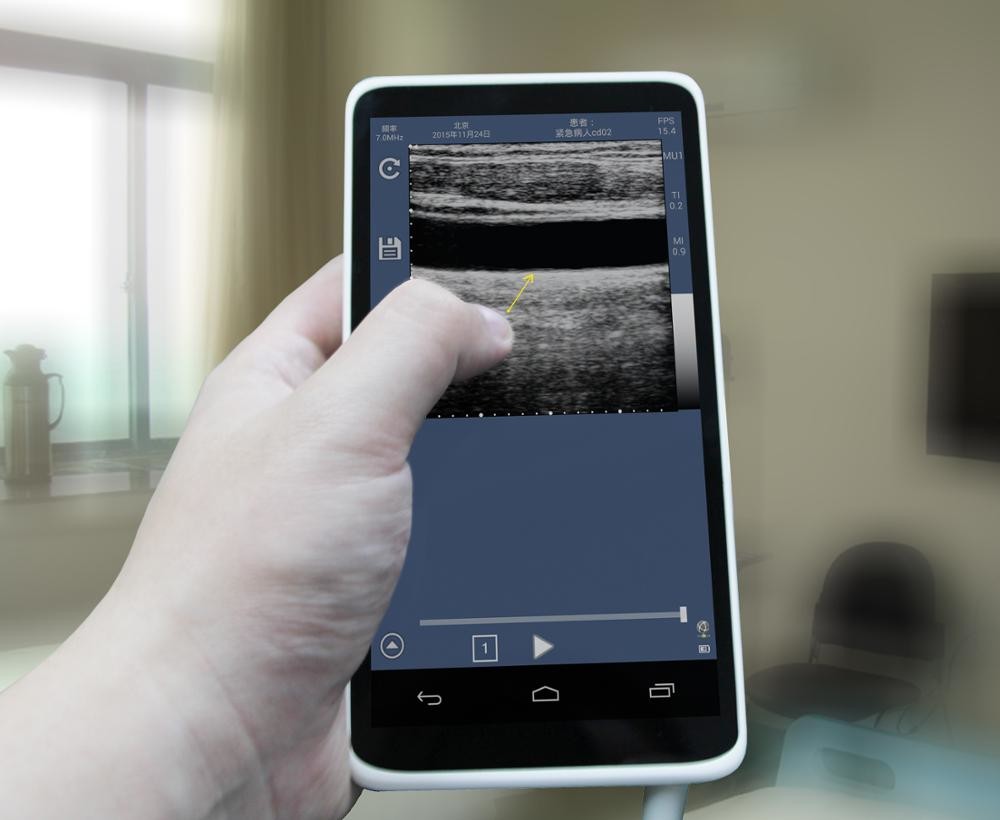

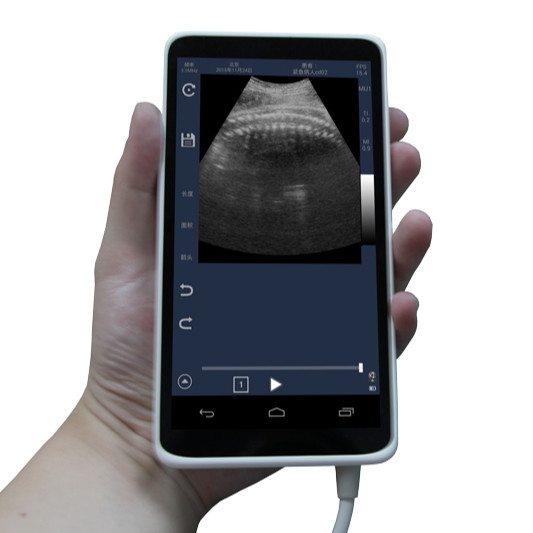

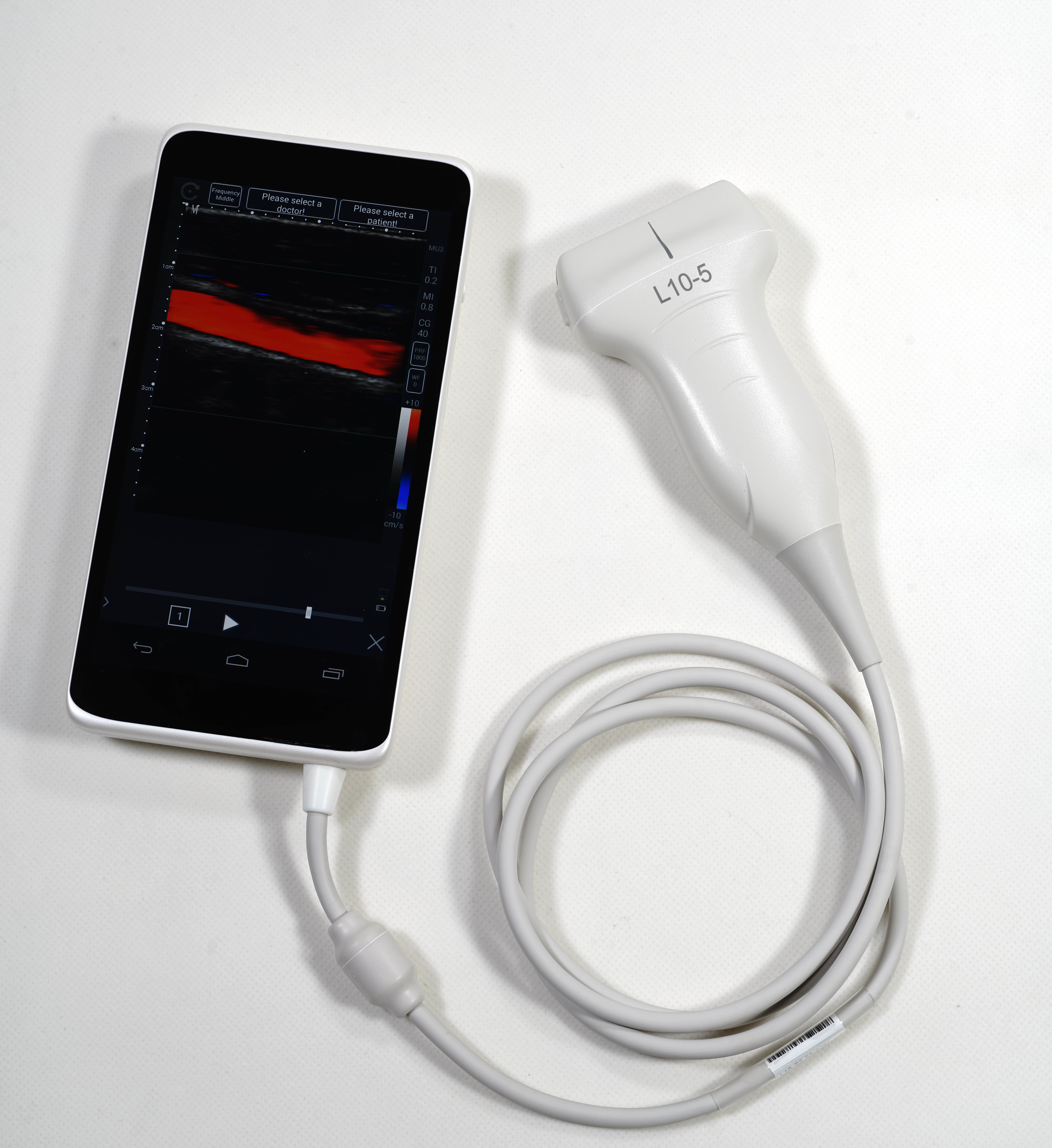

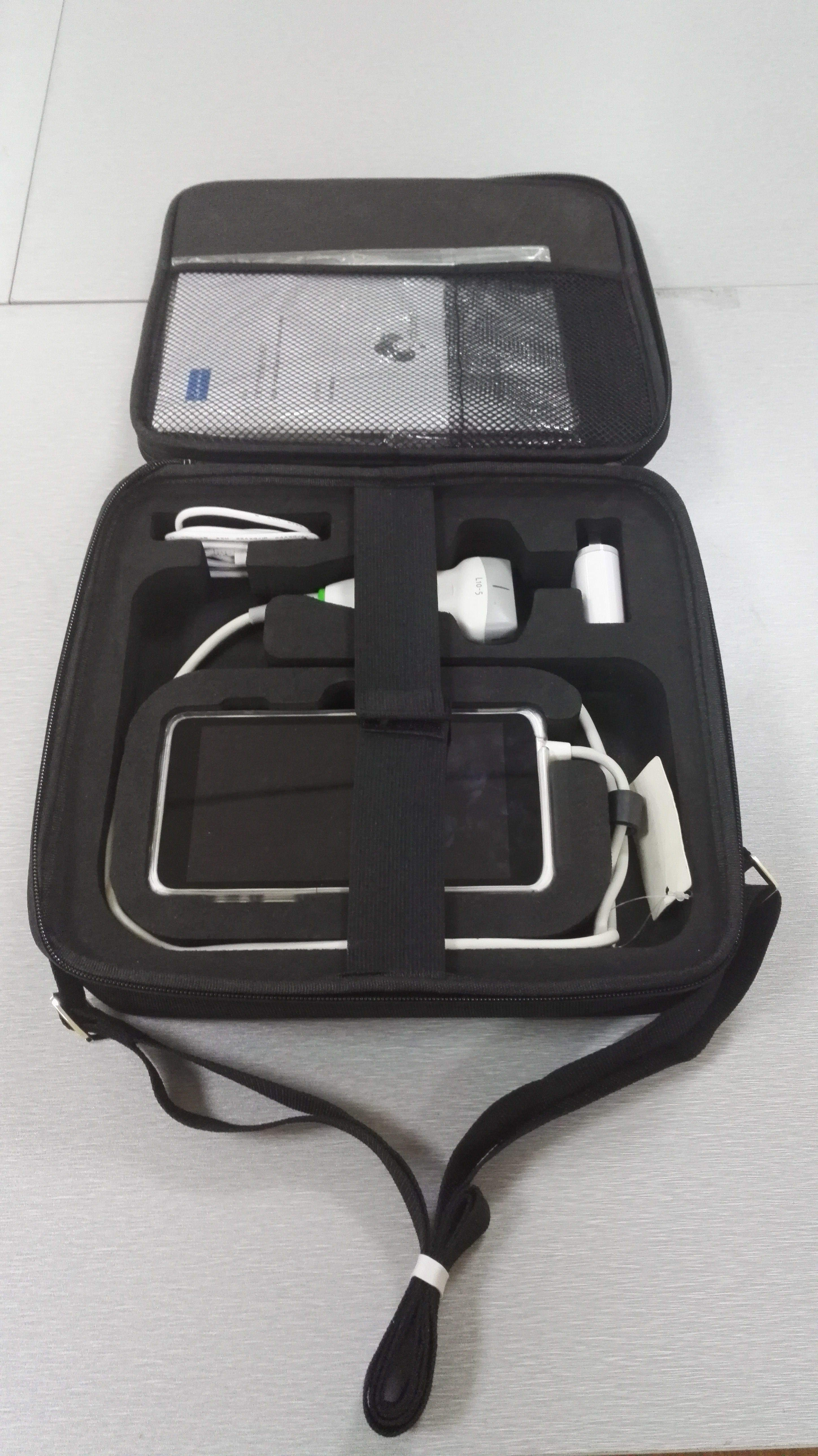

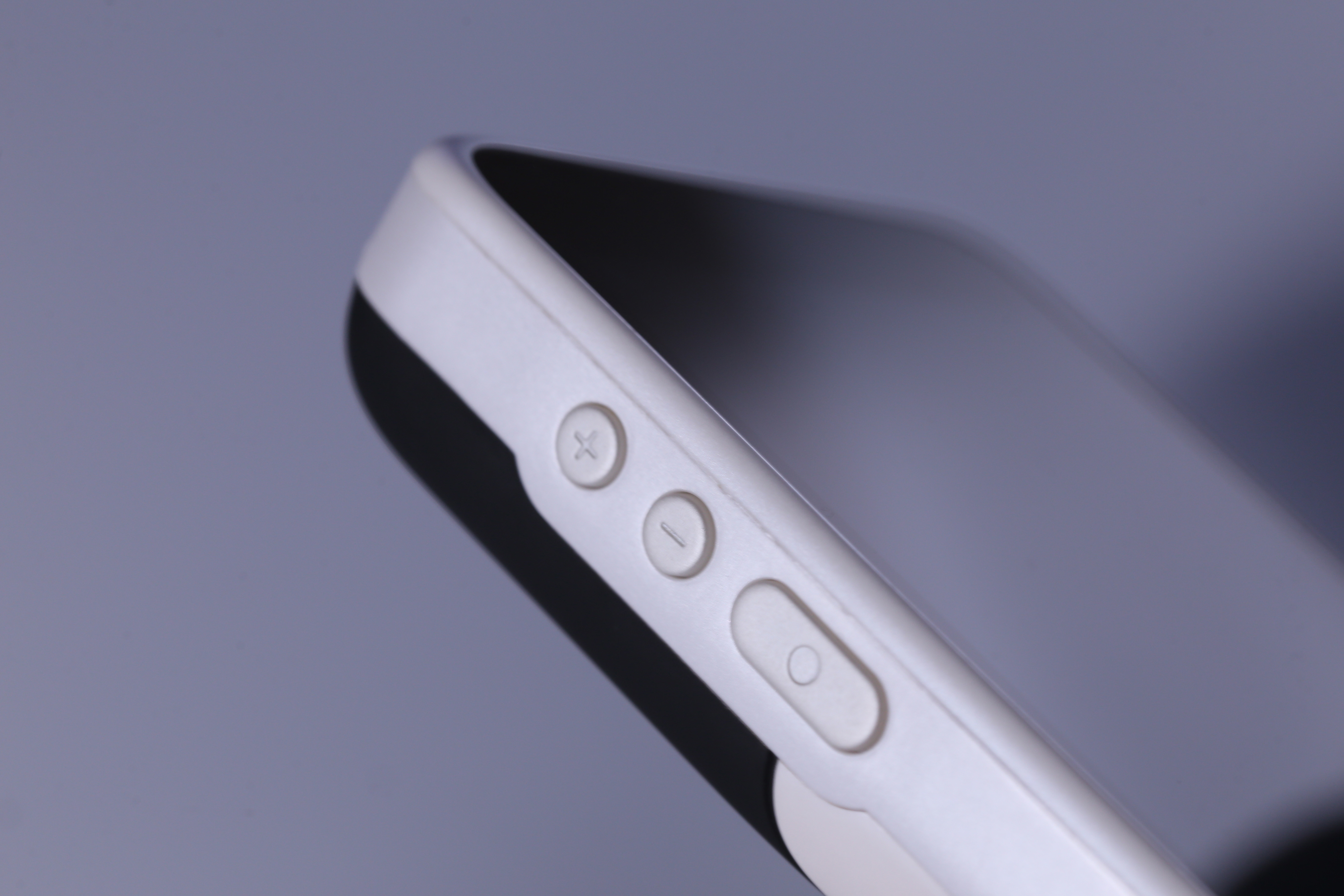

Ultrasound Scanner 6 inch 128 Elements Handheld Touch Screen Color Doppler Machine with convex/linear probe 9
