EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor
EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor
Contact Now

EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor

Minimum Order Quantity : 1pc Price : $3099.00 - $3499.00/Sets
Packaging Details : Standard export package Delivery Time : about 10 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 1000 Piece/Pieces per Month
Place of Origin: China Brand Name: EDAN
Certification: CE,ISO13485 Model Number: SE-2012

Detail Information
Power Source: Electric Warranty: 2 Years
After-sale Service: Free Spare Parts Power Supply Mode: Plug-in
Material: Metal, Steel Shelf Life: 2 Years
Quality Certification: Ce Instrument Classification: Class II
Safety Standard: None Product Name: Twelve Channels ECG Machine
Display: OLED -screen High Frequency: 70Hz/100Hz/150Hz
Standard/Cabrera: 12-Leads System Input: RS-232/ USB2.0/ RJ-45/ SD Interface
Dimension: 86mmx54mmx18mm Weight: 78g
Storage Type: Nandflash Storage Recording Mode: Thermal Array Printer
Battery: 1 AAA Alkaline Battery

Product Description



EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days recording cable heart rate monitor


EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor 0







Recorder Features
The 24-hour full-information synchronous uncompressed high fidelity record of standard electrocardiogram is realized



Recorder:
Light-weight recorder

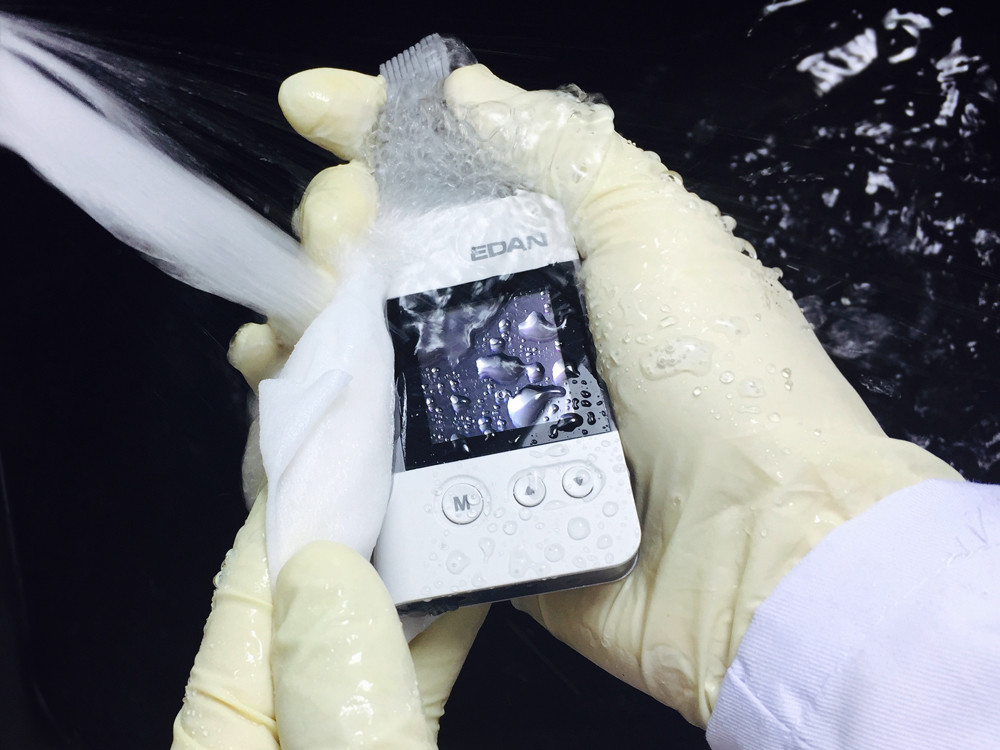

Waterproof design
3/12-channel digital recording
Real-time waveforms display on the recorder
Pacemaker detection
Up to 8 days recording with only one AAA battery



EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor 1
EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor 2
Demix tool is available to discriminate and edit different QRS shapes
Flexible Lorenz Scatter Plot Edit for beat editing according to time range and beat type
EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor 3
EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor 4

Automatic pacemaker analysis: VVI, AAI, DDD etc.

Fibrillation/ Flutter Detection and Edit
Software Features
High-performance data filtering to remove all kinds of noise interference in the recording process.

Special Two-grade Pacemaker Dectection Circuit Design to Ensure Accurate Pacemaker Detection.

It has many functions, such as Overlay Beat Analysis, Lorenz Scatter Plot Edit, automatic analysis of atrial fibrillation Analysis, pacemaker , Accurate ST Segment Analysis , histogram and so on.

It has powerful analytical tools such as HRV, HRT, DC, TWA, AC, SA , and automatic analysis function of atrial fibrillation/flutter.

Patient info can be written to Recorde Before Recording

512M bytes Nandflash to storage 24 hours ECG data, no data compression

Real-time clock, no need to enter record time and date
Technical parameters
Lead
3-lead/12-lead
Record time:
24-hour
Battery
two “AA” batteries
Interface
USB2.0
Calibration voltage
1mV±5%
Noise level
 ≤30μV
CMRR
≥60dB
Low-frequency characteristics
 time constant≥3.2s
Scan speed
25mm/s±5%
Polarizing voltage
±300mV, sensitivity: ≤±10%
Minimum measure signal:
50 µV p-p
Detailed Images

EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor 5

EDAN SE-2012 ECG 3 Channel 12 channel Holter Up to 8 days cable heart rate monitor 6
