Digital Twelve Channels ECG Holter 24 Hours ECG Data Record Standard Electrocardiogram HT06

Name: Digital Twelve Channels ECG Holter 24 Hours ECG Data Record Standard Electrocardiogram HT06
Brand: SUCE
SKU: HT06
Price: 1099.00 USD
Availability: InStock
Rating: 4.5 (193 reviews)

Minimum Order Quantity :	1pc	Price :	$1099.00 - $1,299.00/Sets
Packaging Details :	Standard export package	Delivery Time :	about 5 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	1000 Piece/Pieces per Month

Place of Origin:	China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	HT06

Detail Information
Power Source:	Electric	Warranty:	2 Years
After-sale Service:	Free Spare Parts	Power Supply Mode:	Plug-in
Material:	Metal, Steel	Shelf Life:	2 Years
Quality Certification:	Ce	Instrument Classification:	Class II
Safety Standard:	None	Product Name:	Twelve Channels ECG Machine
Display:	OLED -screen	High Frequency:	70Hz/100Hz/150Hz
Standard/Cabrera:	12-Leads	System Input:	RS-232/ USB2.0/ RJ-45/ SD Interface
Dimension:	86mmx54mmx18mm	Weight:	78g
Storage Type:	Nandflash Storage	Recording Mode:	Thermal Array Printer
Battery:	1 AAA Alkaline Battery
High Light:	Digital 24 hour holter monitor , Twelve channels ECG holter , Electric 24 hour holter monitor

Product Description

Digital Twelve channels ECG holter 24 hours ECG data record of standard electrocardiogram MHT06

Recorder Features
The 24-hour full-information synchronous uncompressed high fidelity record of standard electrocardiogram is realized

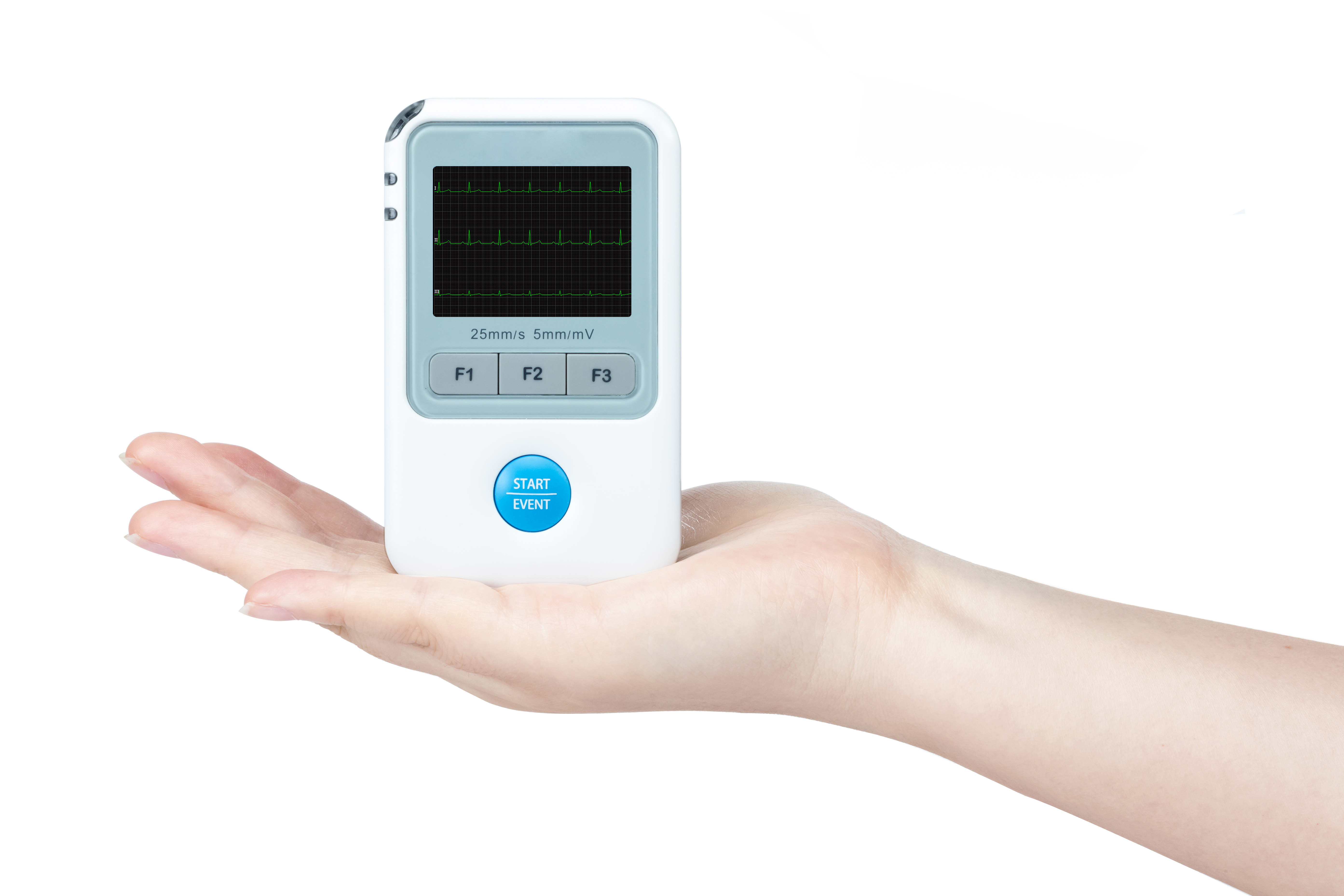

Portable and Light
Portable and light, easy to wear

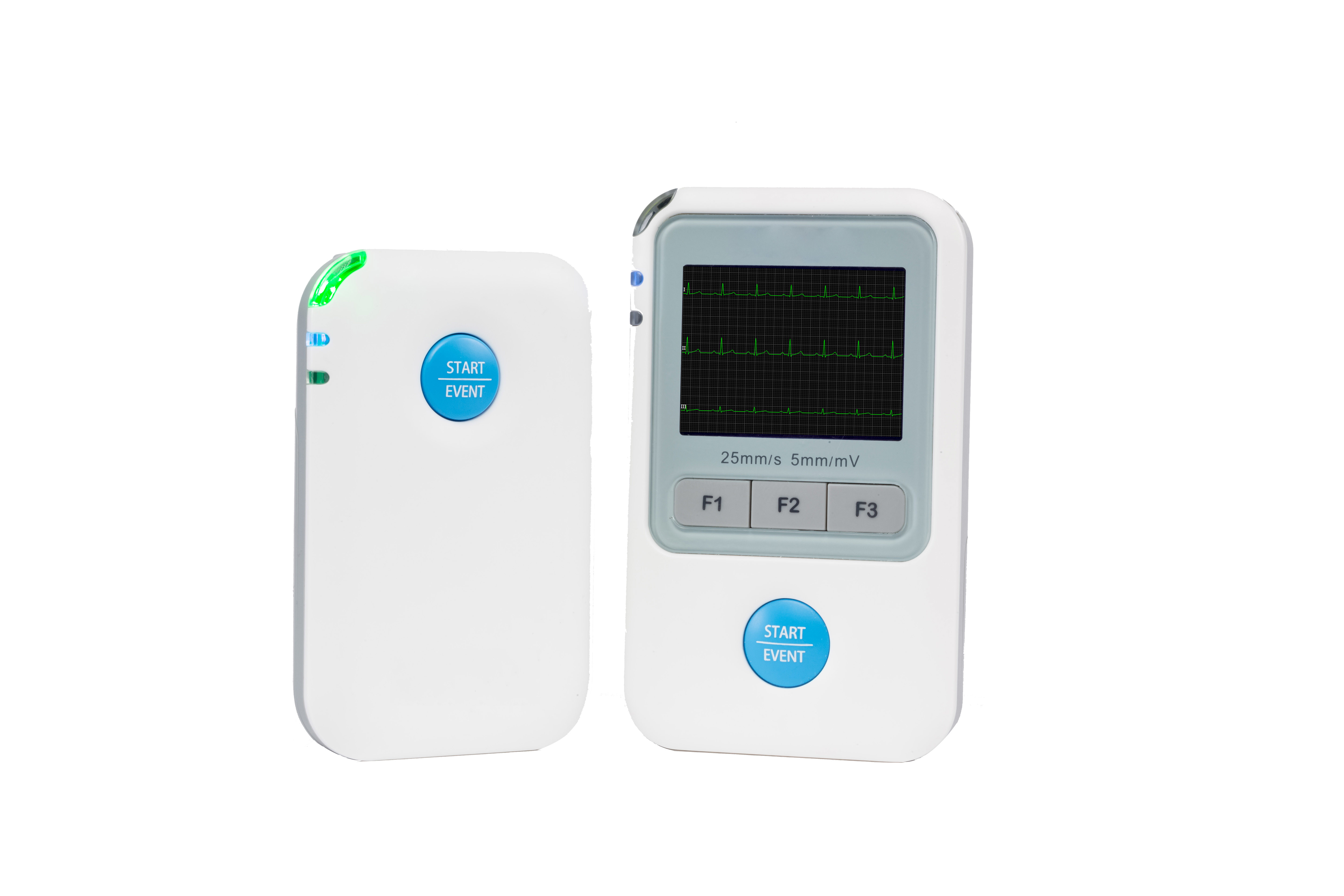

OLED Display
OLED display is available on plus serials recorders to preview ECG easily

Event Button
Event button to record abnormanl event time for patient

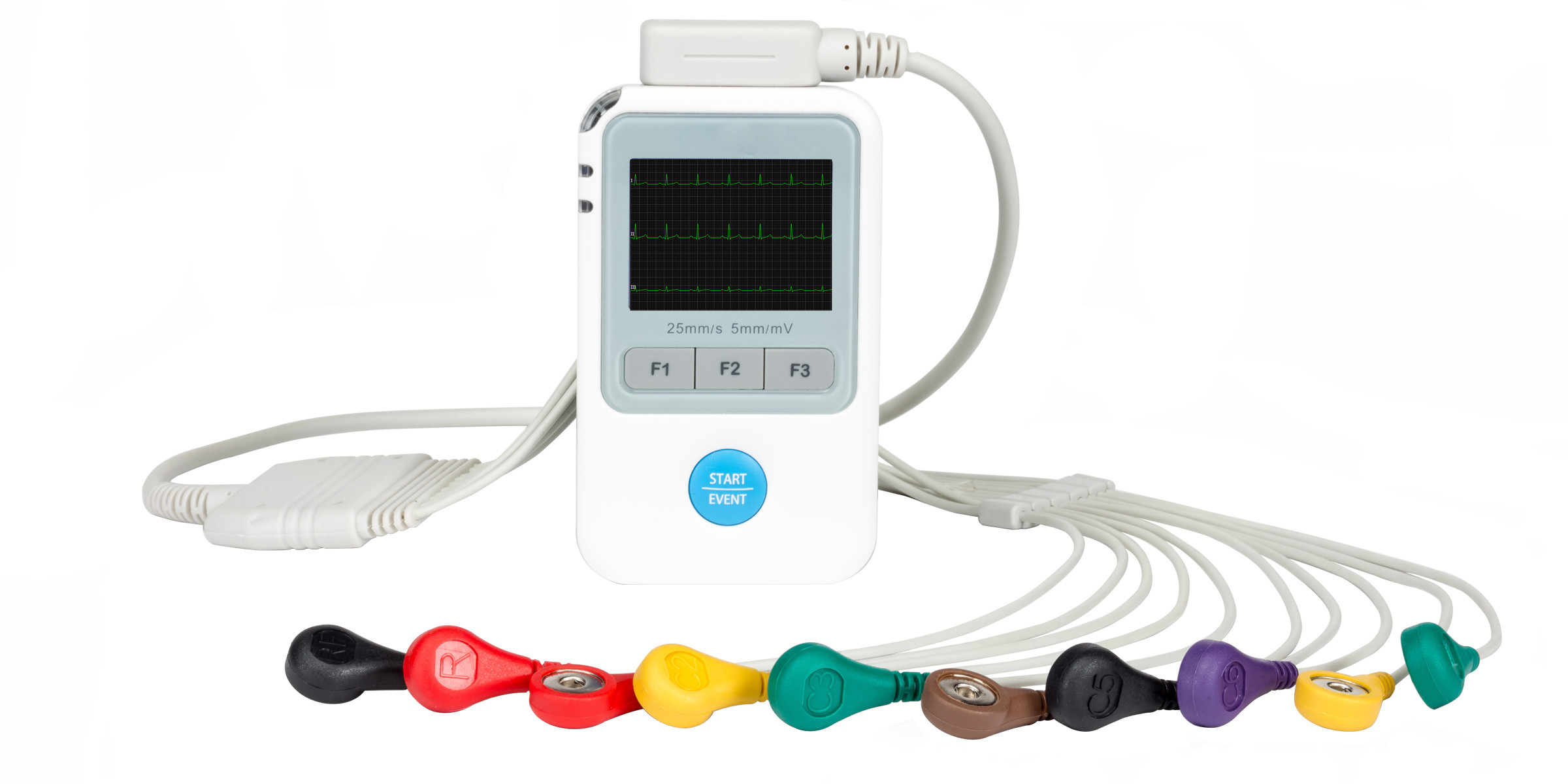

Durable Patient Cable
Patient cable with anti-reverse insertion and anti-drop function, safer to wear

Demix tool is available to discriminate and edit different QRS shapes

Flexible Lorenz Scatter Plot Edit for beat editing according to time range and beat type

Automatic pacemaker analysis: VVI, AAI, DDD etc.

Fibrillation/ Flutter Detection and Edit

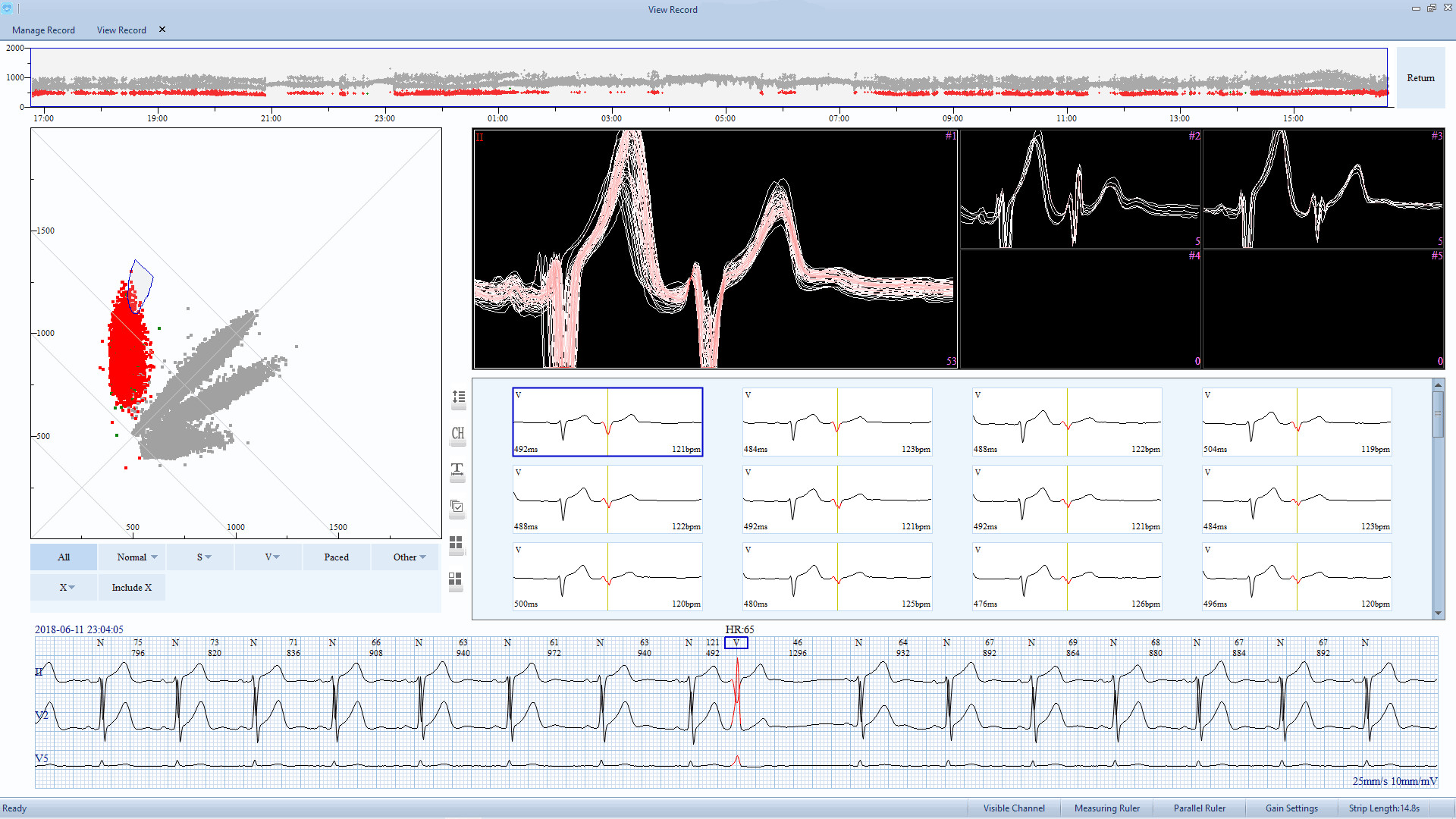

Software Features
High-performance data filtering to remove all kinds of noise interference in the recording process.

Special Two-grade Pacemaker Dectection Circuit Design to Ensure Accurate Pacemaker Detection.

It has many functions, such as Overlay Beat Analysis, Lorenz Scatter Plot Edit, automatic analysis of atrial fibrillation Analysis, pacemaker , Accurate ST Segment Analysis , histogram and so on.

It has powerful analytical tools such as HRV, HRT, DC, TWA, AC, SA , and automatic analysis function of atrial fibrillation/flutter.

Patient info can be written to Recorde Before Recording

512M bytes Nandflash to storage 24 hours ECG data, no data compression

Real-time clock, no need to enter record time and date

Technical parameters

Model	non-screen	OLED -screen
Lead	12 leads (10 lead wires) 3 leads (7 lead wires)	2 leads (10 lead wires) 3 leads (7 lead wires)
Battery	1 AAA alkaline battery	2 AAA alkaline battery
Storage Type	Nandflash Storage	Nandflash Storage
Size	86mmx54mmx18mm	98mmx59mmx21mm
Pacemaker Detection	Yes	Yes
Weight	48g	78g
OLED Display	No	Yes, 1.77 inch OLED Display

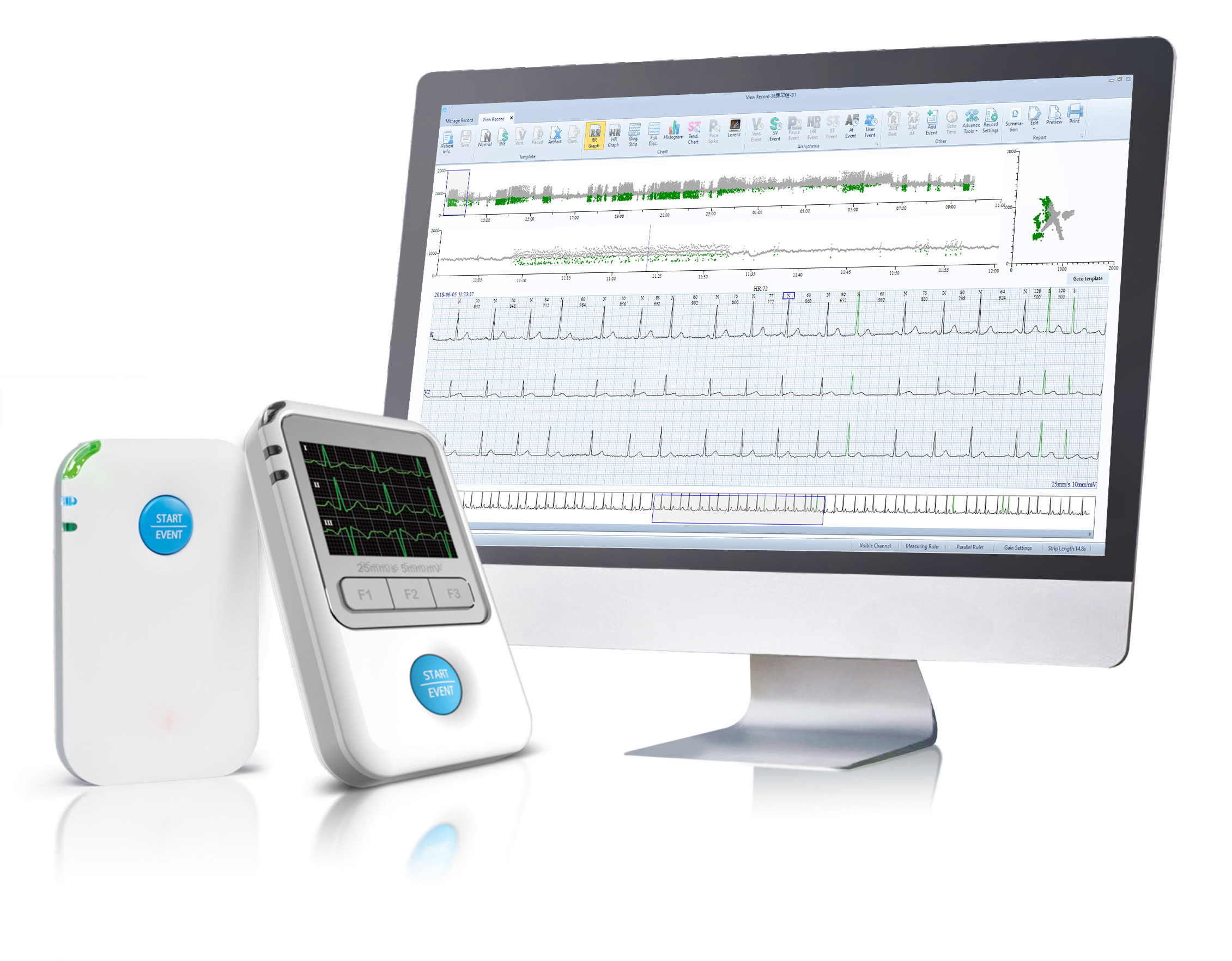

Detailed Images
