Factory wholesale price Digital 12 channels touch screen ECG electrocardiogram machine EC38

Name: Factory wholesale price Digital 12 channels touch screen ECG electrocardiogram machine EC38
Brand: CONTEC
SKU: EC38
Price: 399.00 USD
Availability: InStock
Rating: 4.9 (171 reviews)

Minimum Order Quantity :	1pc	Price :	$399.00/Sets
Packaging Details :	Standard export package	Delivery Time :	about 5 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	1000 Piece/Pieces per Month

Place of Origin:	China	Brand Name:	CONTEC
Certification:	CE,ISO13485	Model Number:	EC38

Detail Information
Power Source:	Electric	Warranty:	2 Years
After-sale Service:	Free Spare Parts	Power Supply Mode:	Plug-in
Material:	Metal, Steel	Shelf Life:	2 Years
Quality Certification:	Ce	Instrument Classification:	Class II
Safety Standard:	None	Product Name:	12 Channels ECG Machine
Display:	7" LCD Color Touch Screen	High Frequency:	70Hz/100Hz/150Hz
Standard/Cabrera:	12-Leads	System Input:	RS-232/ USB2.0/ RJ-45/ SD Interface
Dimension:	375mmx365mmx230mm; 4.5kg	Weight:	2.2 Kg
Paper Size:	210mmx20m, Thermal Roll Paper	Recording Mode:	Thermal Array Printer
Battery:	Yes

Product Description

Factory wholesale price CONTEC Digital Twelve channels touch screen ECG electrocardiogram machine EC38

Overview - Digital Twelve Channel ECG Machine

1.7" TFT, touch screen, LED backlight 2. Digital isolation technology and signal PRO-cessing solution, digital filter 3. Patient managment, name and age and ID. 4. Detail analysis report. 5. Multi-language options: Germany, France, Italian, Turkey, etc 6. Built-in lithium rechargeable battery, wide thermall printing system 7. USB and LAN socket. Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive 8. Auto-measurement, auto-analysis, and auto-interpretation.

Technical parameters

Standard 12 leads	Standard 12 leads
Measurement parameters	HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Patient leak current	<10µA
Frequency response	0.05 ~ 150Hz(-3dB)
Time Constant:	≥ 3.2s
CMRR:	> 100dB
Dimention of recording paper	80mmx20m
Paper speed	25mm/s, 50mm/s
Input Circuit:	< 50μA
Noise Level:	≤ 15μVp∽p
Sensitivity valve:	5, 10, 20mm/mV.
Polarization Voltage:	±300mV
Calibration Voltage:	1mV ±2%
Product safety type	Class I, CF. Defibrillation and pacing protection
Dimension	130mm(L)¡Á 74mm(W)¡Á 25mm(H)
NET Weight	2.3KG
Input Impedance:	≥ 50 MΩ

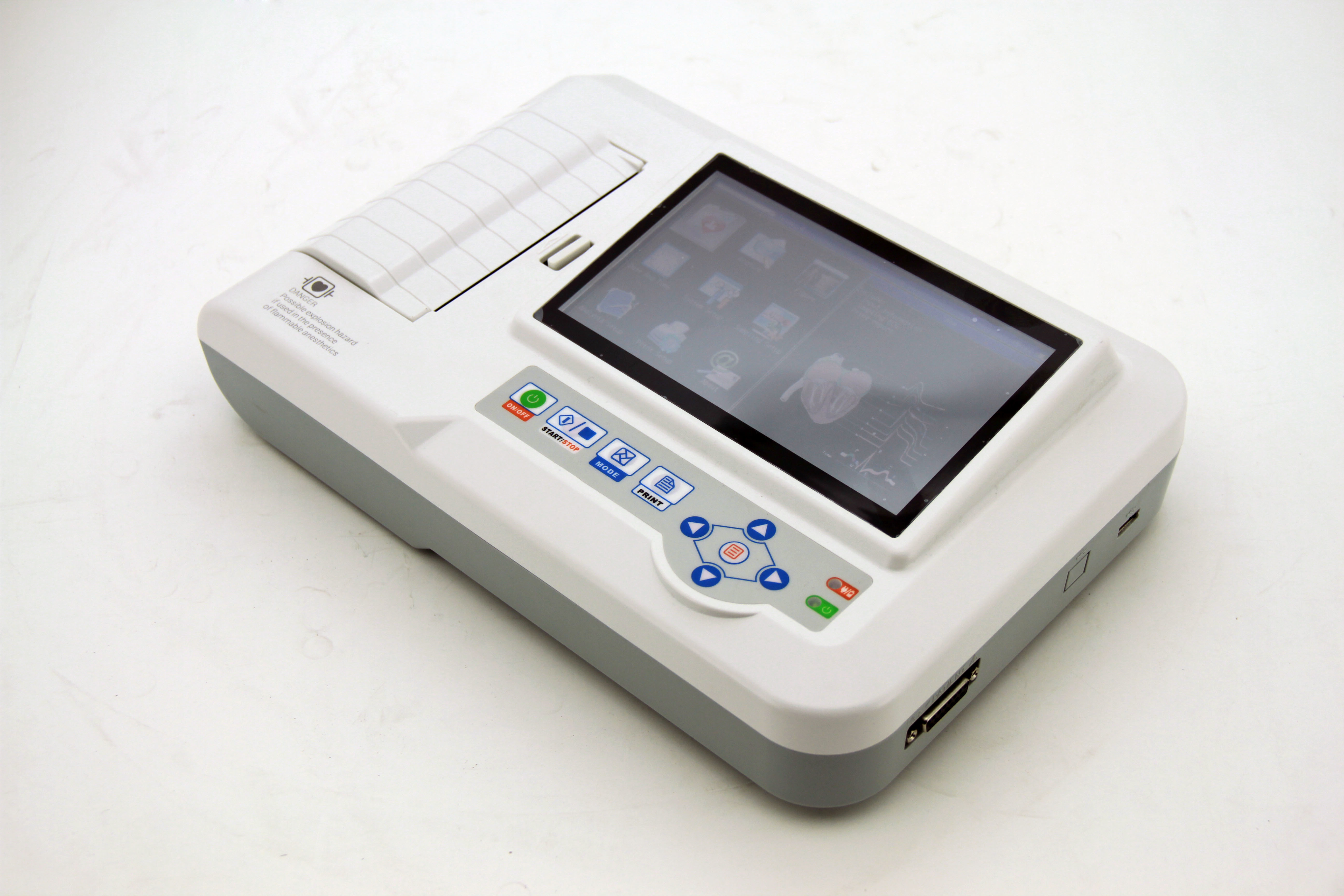

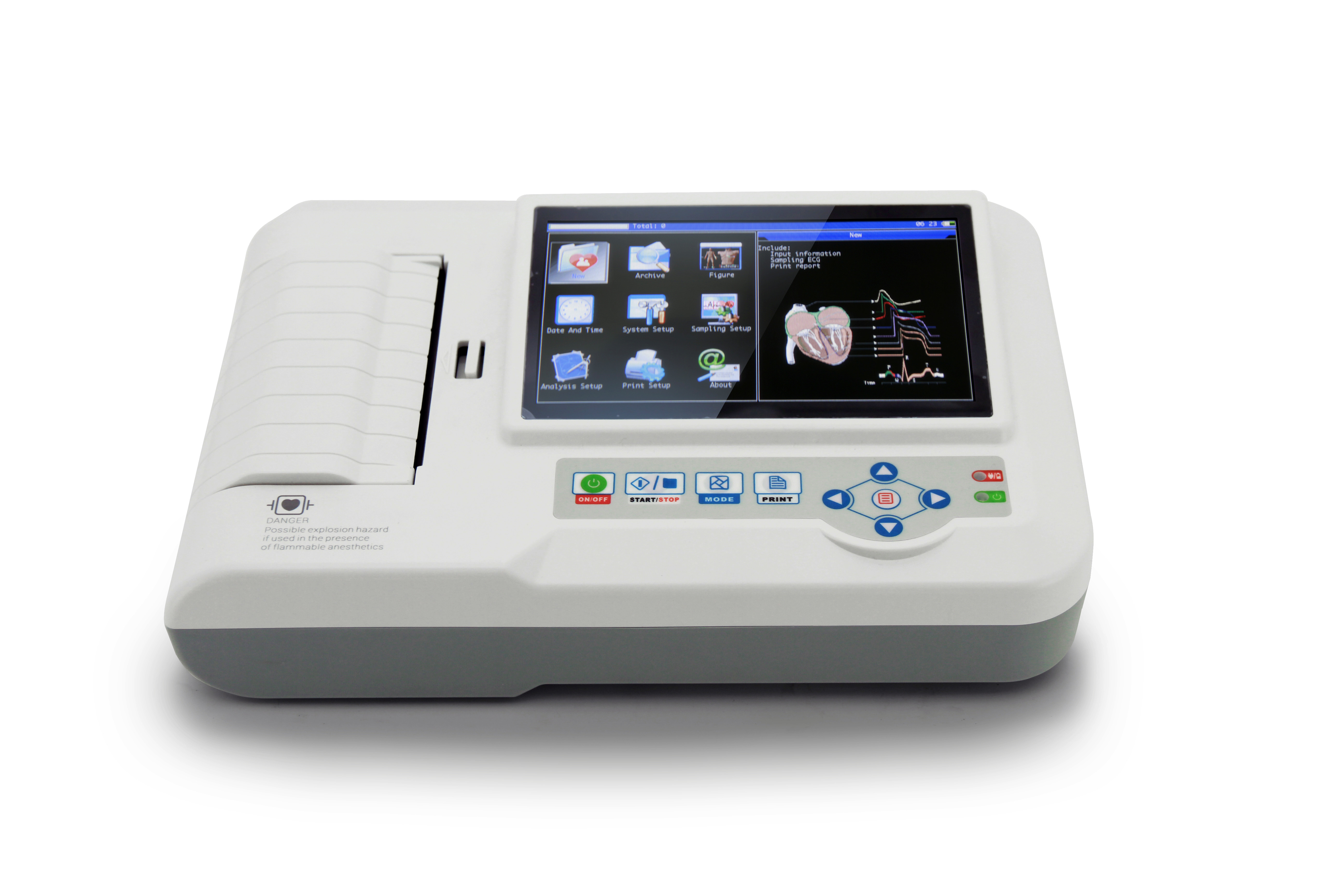

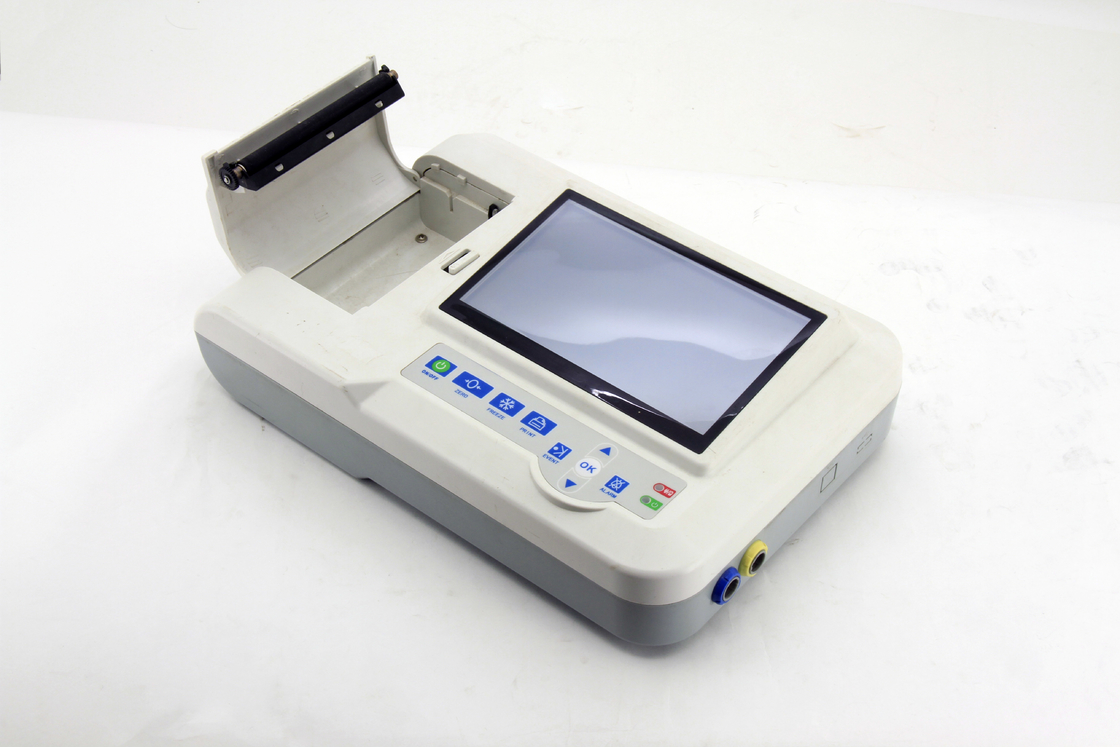

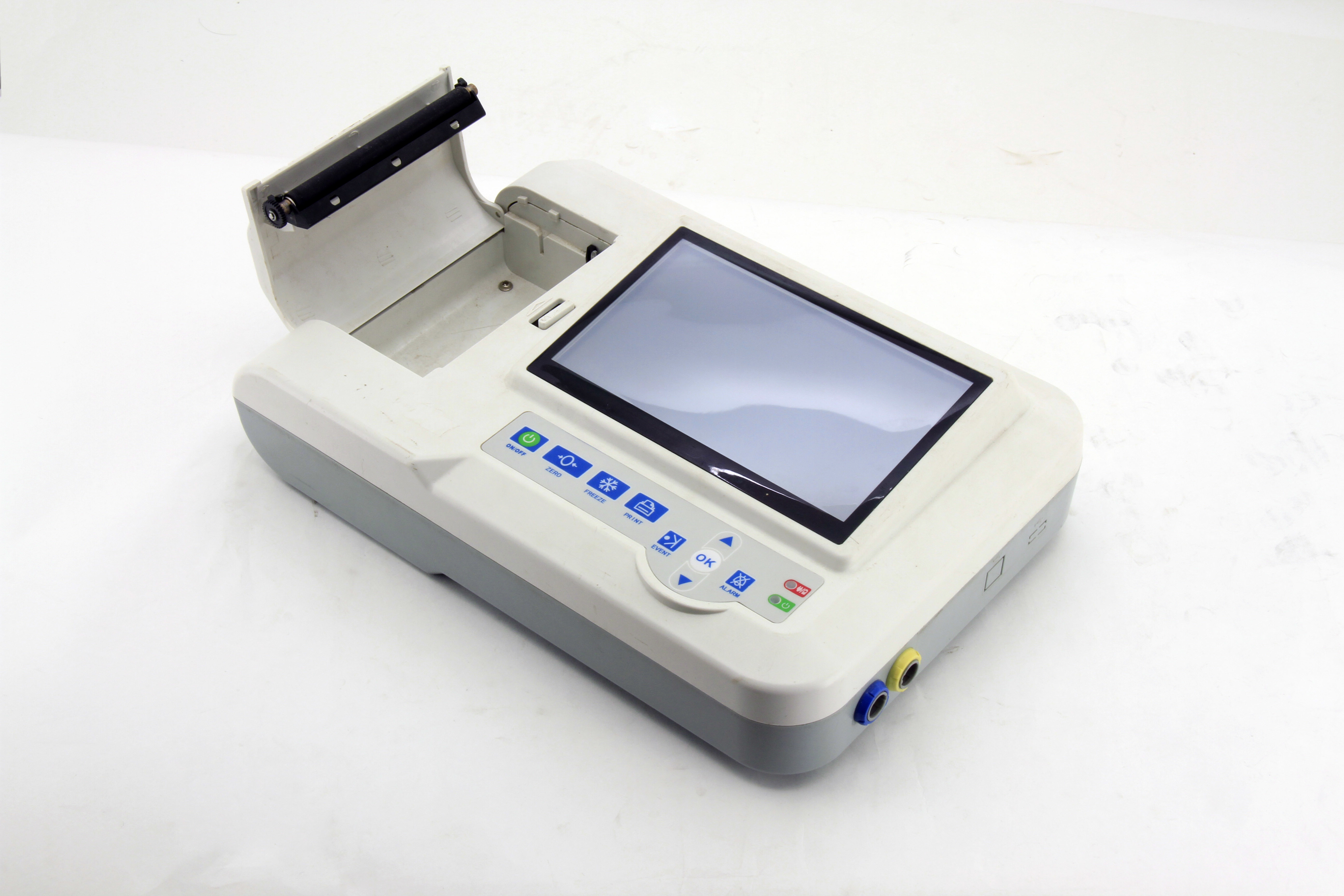

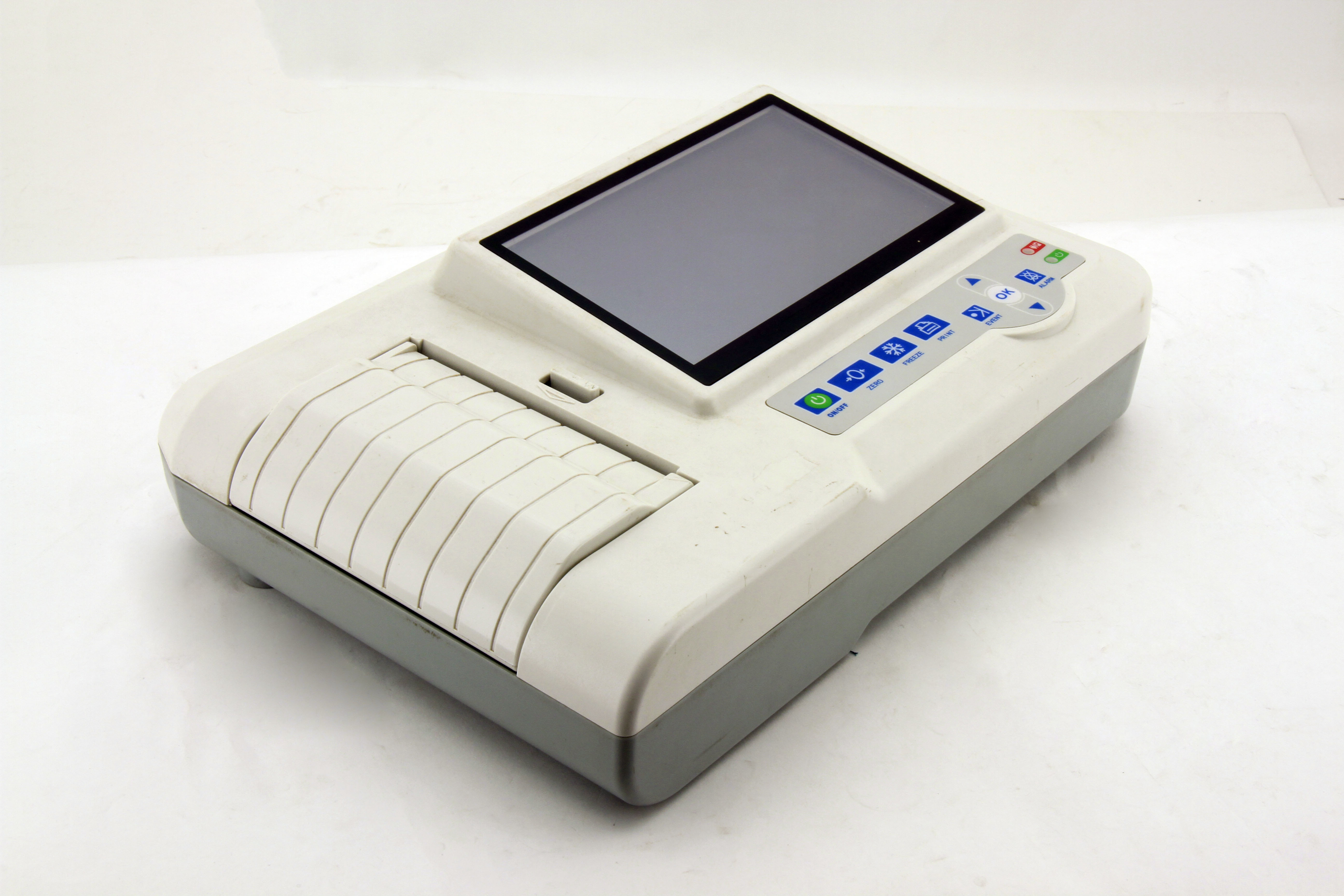

Detailed Images
