Home ProductsMedical Device EquipmentPhysical Examination InstrumentsDigital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine
Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine
Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine
Contact Now

Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine

Minimum Order Quantity : 1pc Price : $599-699.00/Sets
Packaging Details : Standard export package Delivery Time : about 5 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 1000 Piece/Pieces per Month
Place of Origin: China Brand Name: ZONCARE
Certification: CE,ISO13485 Model Number: EC33

Detail Information
Power Source: Electric Warranty: 2 Years
After-sale Service: Free Spare Parts Power Supply Mode: Plug-in
Material: Metal, Steel Shelf Life: 2 Years
Quality Certification: Ce Instrument Classification: Class II
Safety Standard: None Product Name: 12 Channels ECG Machine
Display: 9" LCD Color Touch Screen High Frequency: 70Hz/100Hz/150Hz
Standard/Cabrera: 12-Leads System Input: RS-232/ USB2.0/ RJ-45/ SD Interface
Dimension: 375mmx365mmx230mm; 4.5kg Weight: 2.2 Kg
Paper Size: 210mmx20m, Thermal Roll Paper Recording Mode: Thermal Array Printer
High Light:

Digital Physical Examination Instruments

,

Twelve Channels ECG electrocardiogram machine

,

12 channels ECG machine

Product Description

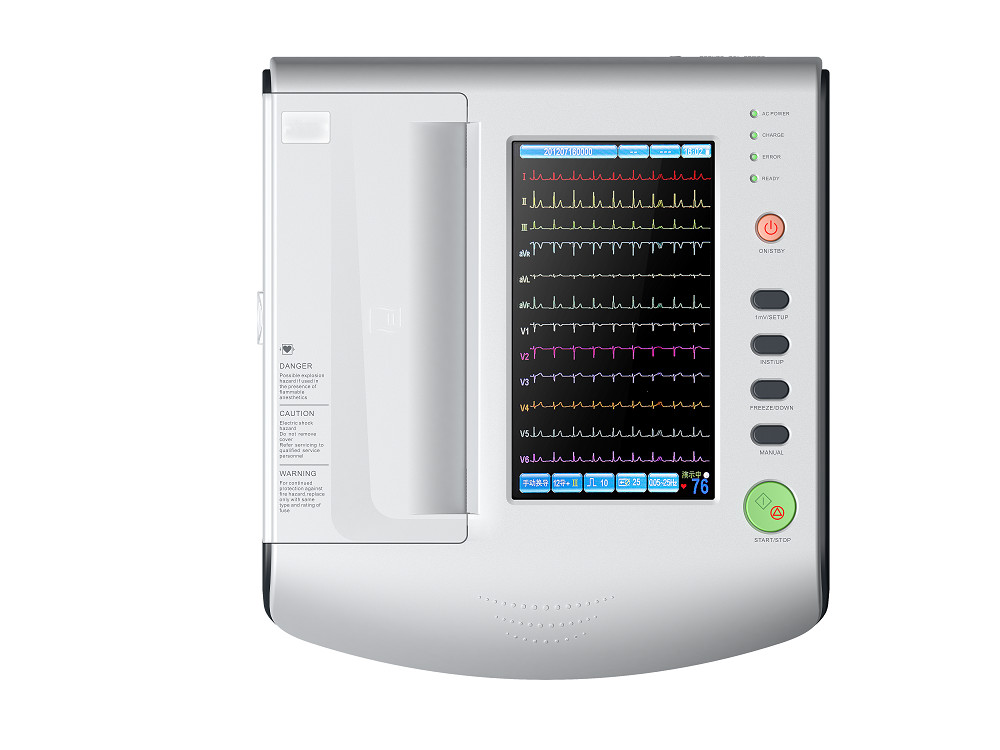

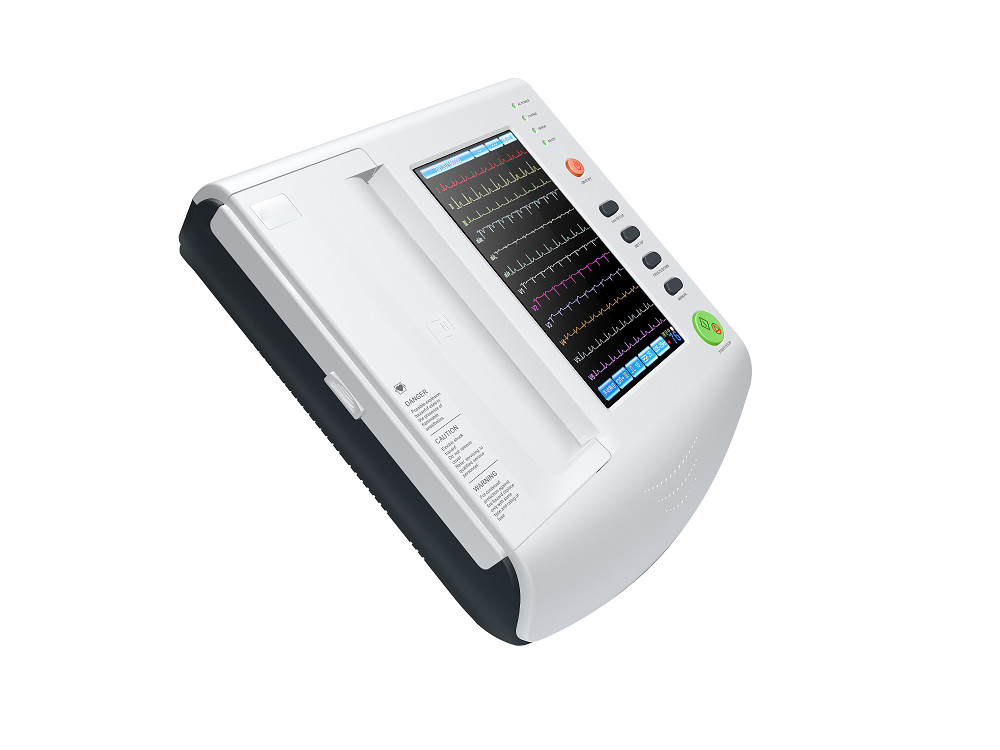

Zoncare Digital Twelve channels ECG electrocardiogram machine EC33



Standard/Cabrera 12-Leads

7” LCD Color Screen

Simultaneously 12-Leads Acquisition
Manual/auto 3CH, 3CH+1R, 3CH+2R,

6CH, 6CH+1R display
Manual/auto 6-Channels Simultaneously-
Printing (without distortion)
Electrode Disconnection Alarm (Diagram)
Automatic measurement & analysis
5minutes arrhythmia analysis
Security type: Ⅰtype CF

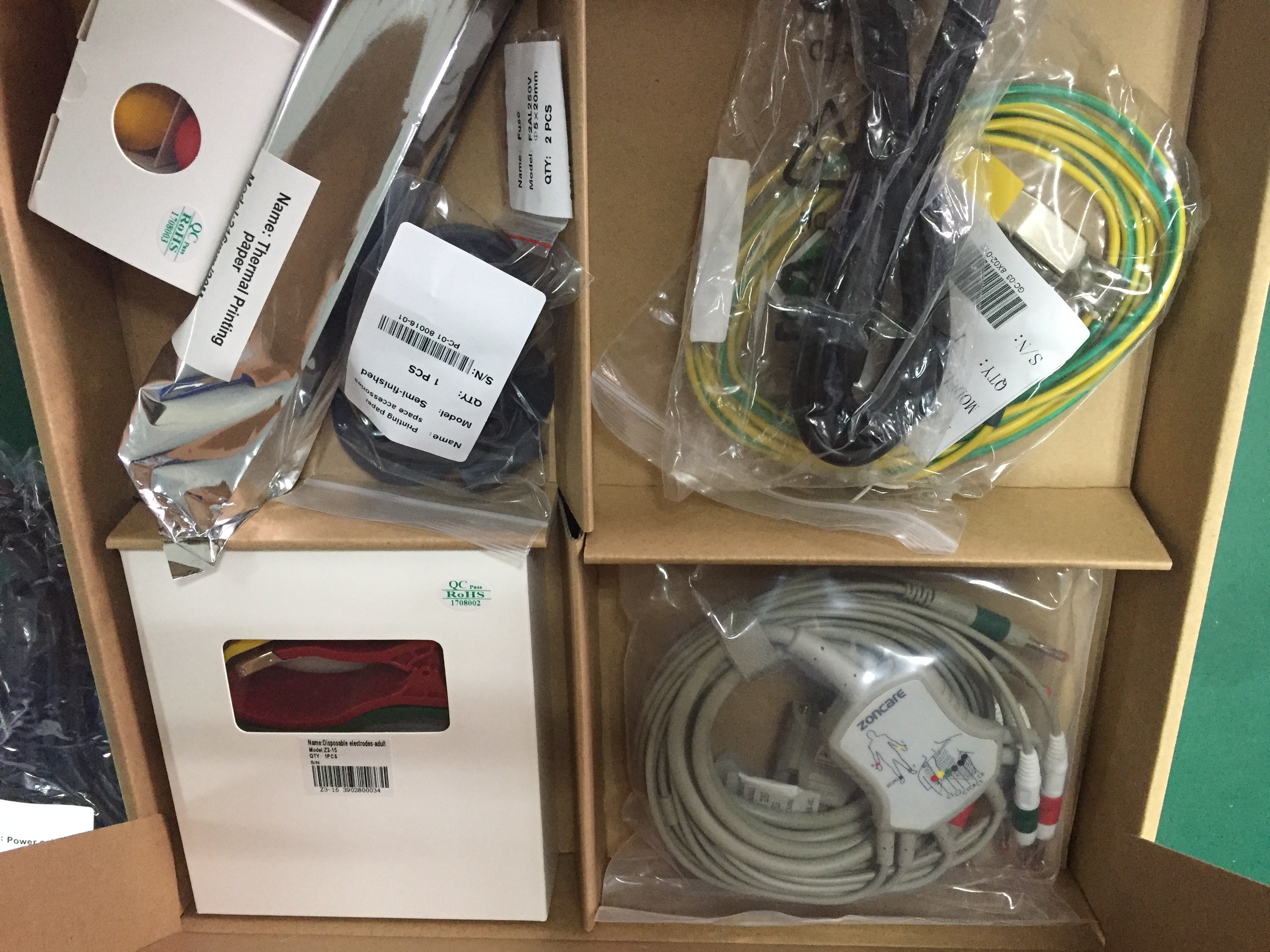

Standard Package :
EC32 ECG Machine (with battery)
Patient Cable
Chest Electrodes
Limb Electrodes
Thermal Printing Paper
Power Cord
Grounding Wire
User Manual
Paper Axis
Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine 0

Optional Accessories
Series Electrodes
Thermal Printing Paper
SD Memory Card
Lithium Battery
Workstation Software

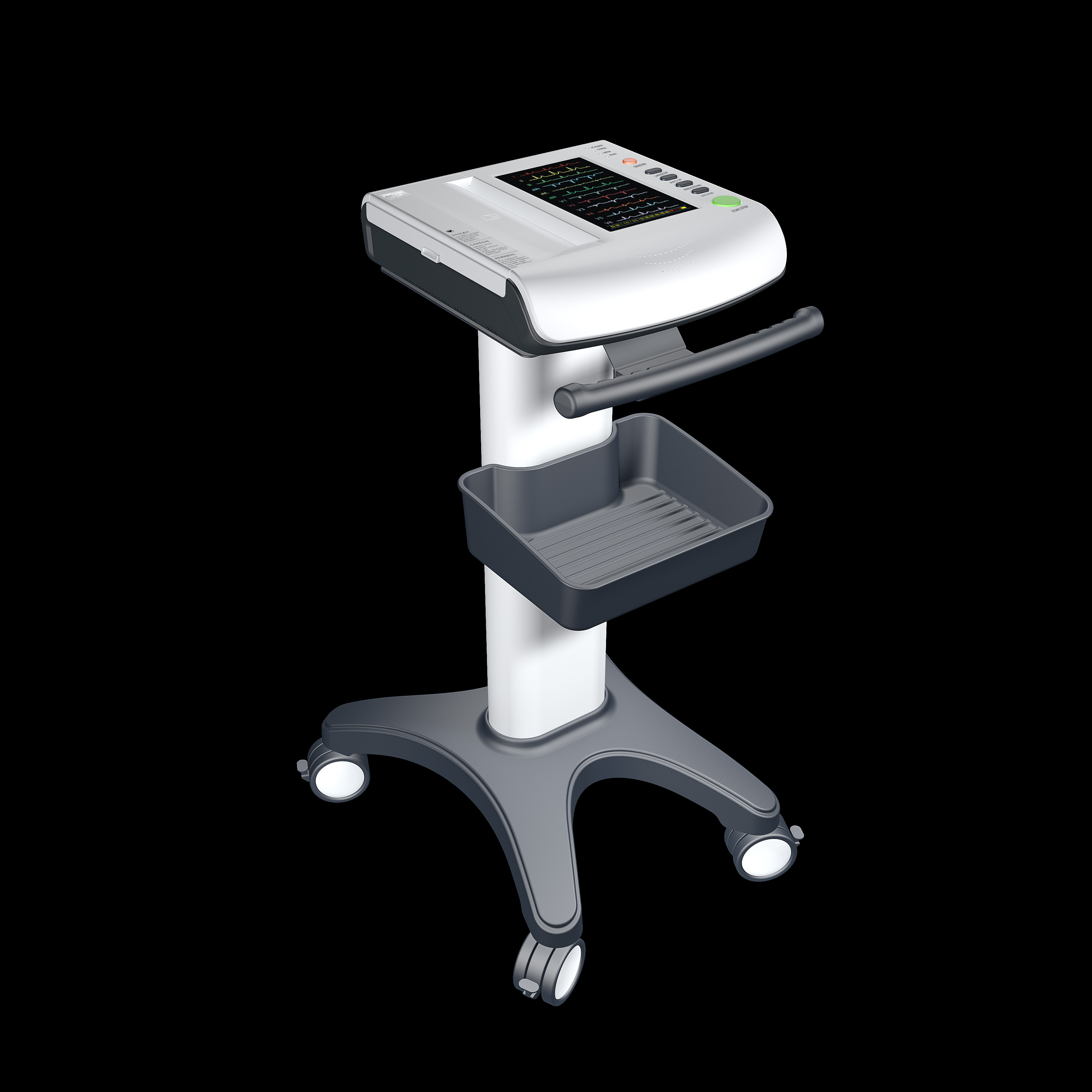

Workstation Trolley
Laser/Inkjet Printer
Paper Axis
Technical parameters
Sampling rate:
8000Hz (1ms)
Frequency Response:
0.05 ~ 150Hz

(-3dB)
Time Constant:
≥ 3.2s
CMRR:
> 100dB
Patient Leakage Current:
<10µA
Input Mode:
floating input
Input Circuit:
< 50μA
Noise Level:
≤ 15μVp∽p
Sensitivity valve:
20 μV
Polarization Voltage:
±600mV
Calibration Voltage:
1mV ±2%
Continuous Operating:
AC ≥ 10h &

DC ≥ 3h
A/D shift:
≥ 20
Input Impedance:
≥ 50 MΩ
Detailed Images
Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine 1
Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine 2



Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine 3
Digital Physical Examination Instruments Twelve Channels ECG Electrocardiogram Machine 4
