Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20
Contact Now

Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20

Minimum Order Quantity : 1pc Price : $1,2999.00 - $14,999.00/Sets
Packaging Details : Standard Export box package Delivery Time : about 10 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 9999999 Set/Sets per Month
Place of Origin: China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: SY20

Detail Information
Power Source: Electric Warranty: 1 Year
After-sale Service: Free Spare Parts Material: Metal, Plastic
Shelf Life: 1years Quality Certification: Ce
Instrument Classification: Class II Safety Standard: EN 149 -2001+A1-2009
Product Name: Fiber Colposcope Camera: PAL
Illumination: 70000LX Function: Gynaecological Diagnosis
Weight: 61kg Dimension: 64*18*48cm
Lamp Power: 15V-150W .Electric Switch: AB Light Two Sets Light Source
Image Display: Two Image Display Optional Magnification: 216 Times

Product Description

Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20
Product Description
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 0
Item
Fiber Colonoscope
fiber gastroscope
Diameter of distal- end
Φ13.0mm
Φ9.8mm / 9.2mm
Diameter of insert tube
Φ13.0mm
Φ9.8mm / 9.2mm
Clamp aperture
Φ3.2mm / 3.7mm
Φ2.8mm
Working length
1350mm
1030mm
Total length
1650mm
1330mm
View of field
100 º
100 º
Depth of view
3-100mm
3-100mm
Tip deflection
up 180° down 180° L/R 160°
up 210° down 90° L/R 100°
Water delivery
40ml/min
40ml/min
Air delivery
800ml/min
800ml/min
Liquid absorption
600ml/min
600ml/min
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 1

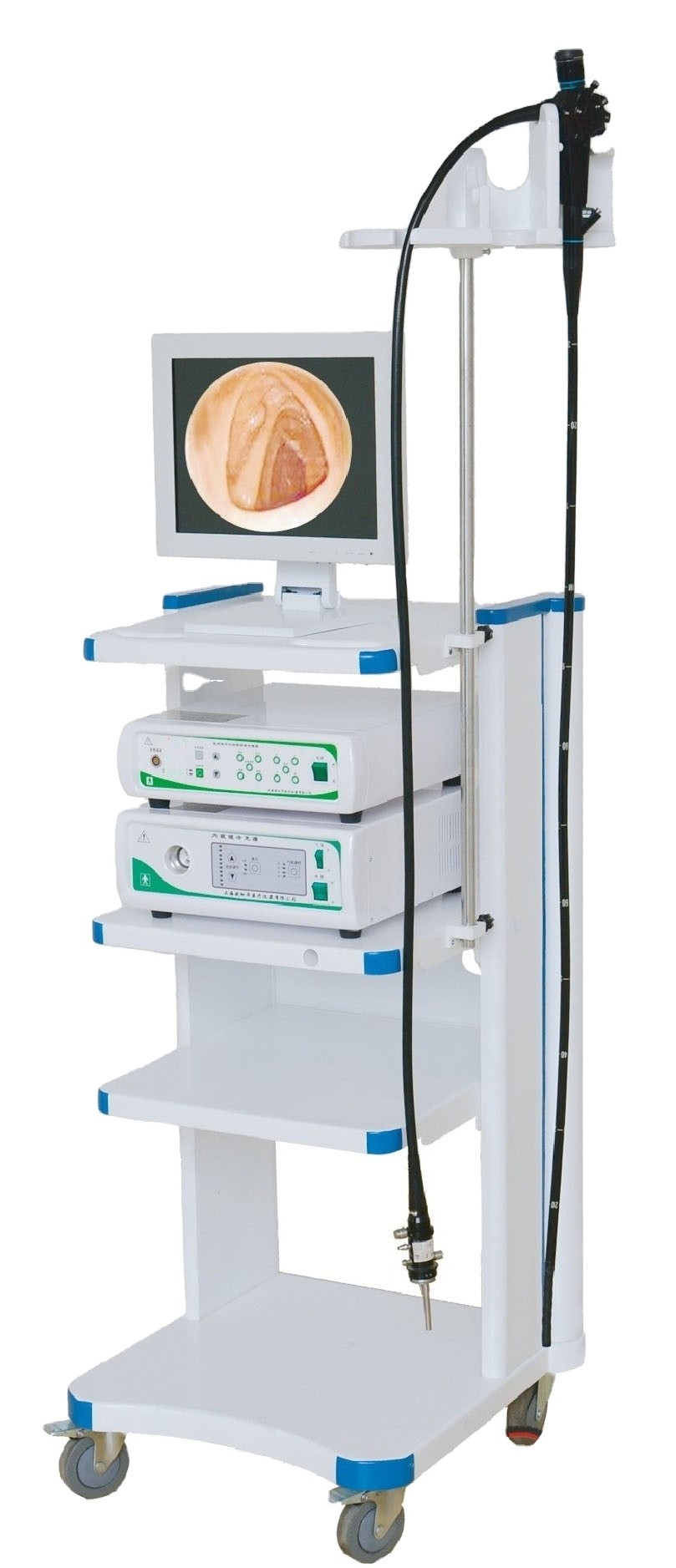

Digital Electronic Colposcope (Trolley-type)

Apparatus Features:

1.Specialized design, simple operation, and more humanity

2.The realization of the quantitative control on the detection process and image analysis

3.The electric green filter function based on hardware control

4.Realization of the statistical analysis of inspection data

5.Advanced network application technology
Technical data

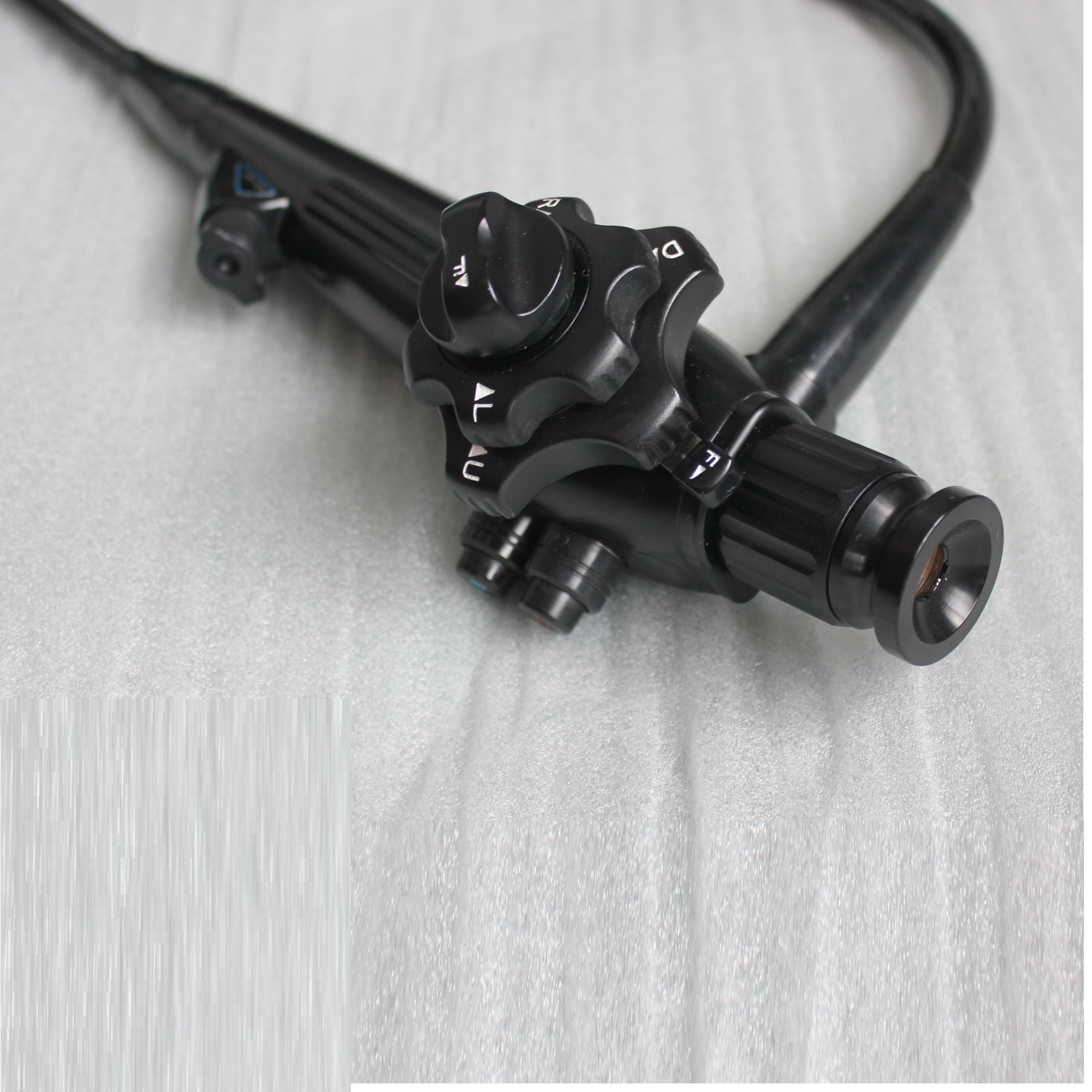

Fiber Colonoscope & Fiber gastroscope
Bending operation : Traction chain structure, whole sealed waterproof
Image display : Two image display optional
Quality certification : CE
Warranty : One year(free), permanent repairs (not free)
Package size :64*18*48cm (G.W.:5.20kgs)
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 2
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 3

Cold light source

Main Function:
1.Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation.
2. Built with micro axial fan cooling temperature.
3. Adopt dimming electronic control unit organization.
4. Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life, convenience to the operation

Package box:54*47*27.3cm (10.54kgs)
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 4
 Voltage:
220V-240V
Frequency:
50-60HZ
lamp Power:
15V-150W environmentally friendly halogen tungsten lamp
 Illumination:
70000LX (using special measuring tools)
Color Temperature:
3000~7000K
Air Pump Pressure:
30-60kpa Air Flow: 4/L/min-10L/min (Quiet pump)
Electric switch :
Air Pump Pressure:

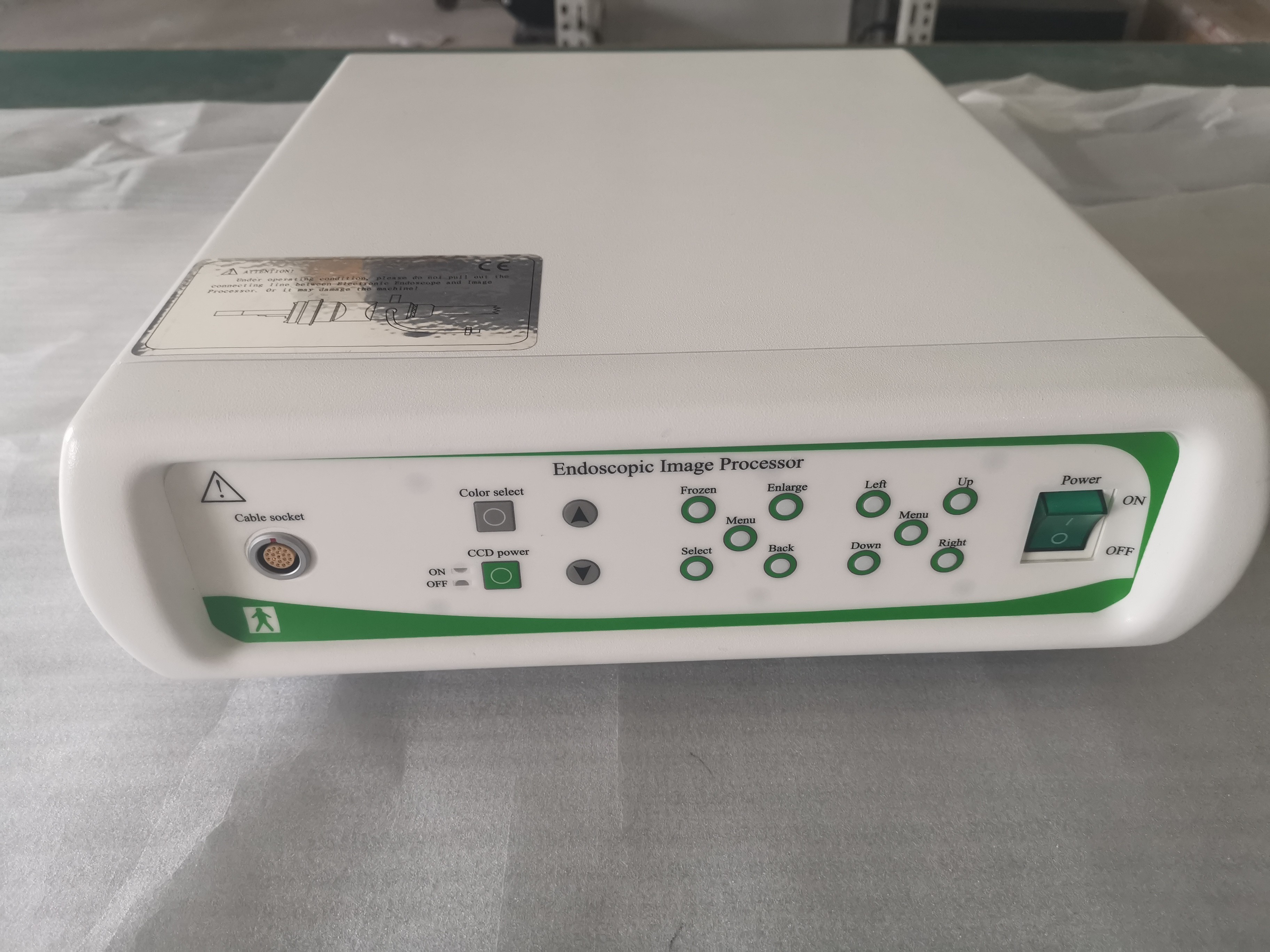

Camera System
Image regulation : Automatic regulate light, keep the image EMVat its best
Video processor : DSP-Digital image processor with powerful multi-function , Brightness / color / contrast adjustable 0-100 level, Svideo / AV output.
Reverse function :Black and white reversed.
White balance : Auto white balance , manual white balance.
Manual white balance :Manual white balance can be calibrated color, color adjustable (Red, Blue).
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 5
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 6

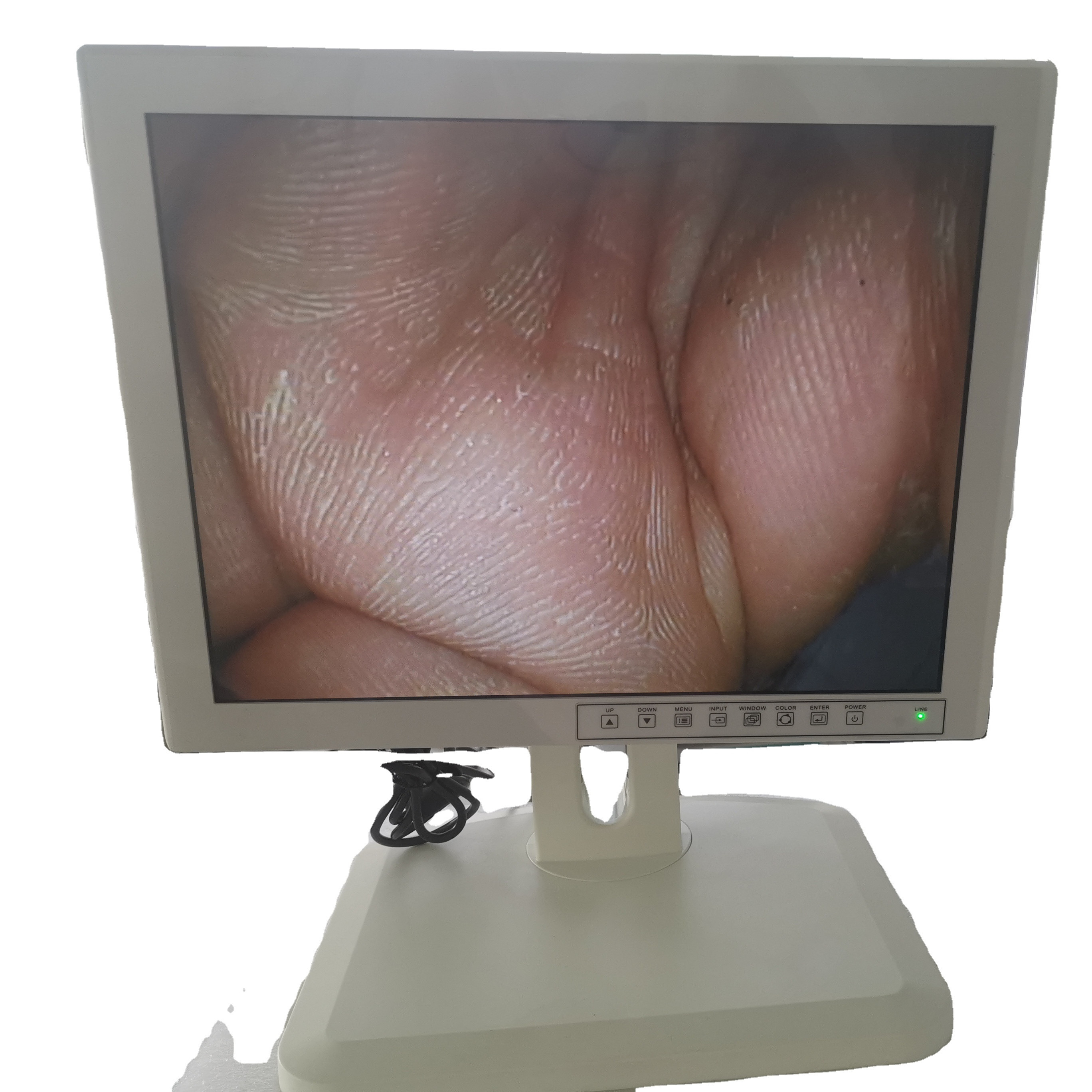

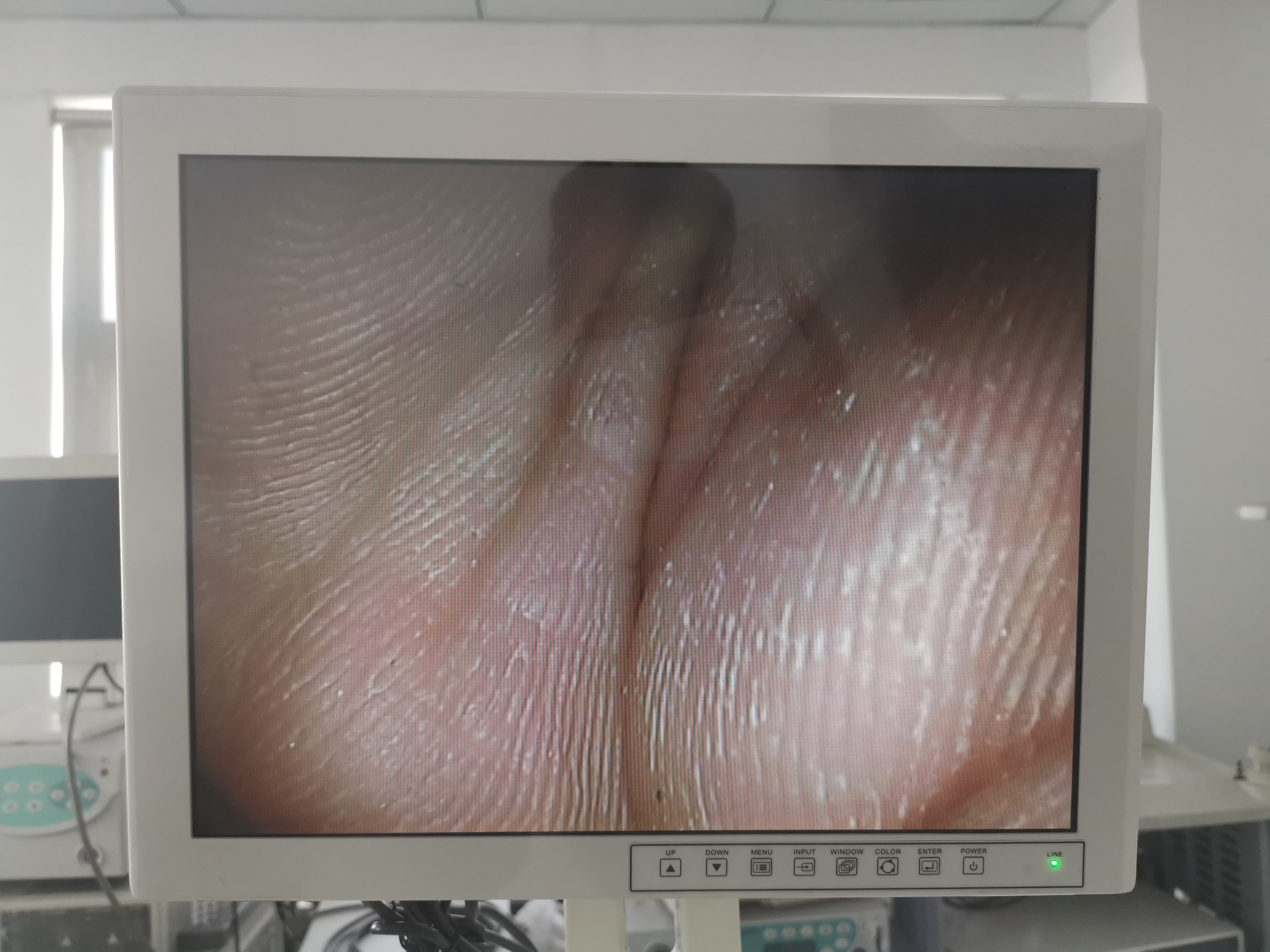

LCD Display
1. Display size: 15"
2. Power Supply:External Power Supply 12V
3. Resolution:1024X768
4. Display Ratio:4:3
5. Color:16.7M
6. Camoration Brightness:180±10 cd/㎡
7. Max.Brightness :400 cd/㎡
8. Contrast Ratio:700 : 1
9. Viewing Angle:120/140Response Time:8ms
Package size : 44*36.5*16.5cm (G.W.:6.0kgs)
Detailed Images
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 7
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 8
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 9
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 4
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 11
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 12
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 5
Japan technology Trolley type Digital Fiber gastroscope Colposcope with video SY20 6
