Factory 50kw 630ma High Frequency Digital X ray Machine DR System in Stock Medical Imaging Equipment

Name: Factory 50kw 630ma High Frequency Digital X ray Machine DR System in Stock Medical Imaging Equipment
Brand: SUCE
SKU: HX04
Price: 7 USD
Availability: InStock
Rating: 5 (167 reviews)

Minimum Order Quantity :	1pc	Price :	$7,000.00 - $7,899.00/Units
Packaging Details :	PACKING: STANDARD EXPORT PACKAGE	Delivery Time :	about 10 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	3000 Unit/Units per Month

Place of Origin:	China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	HX04

Detail Information
Power Source:	Machinery	Warranty:	3 Years
After-sale Service:	Online Technical Support	Material:	Metal
Shelf Life:	3 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	EN 149 -2001+A1-2009
Properties:	Medical X-ray Equipments & Accessories	Application:	For Both Human And Animals
Type:	Fixed Type	Power:	20kW, 32kW, 50kW
MAs:	0.1~630mAs	Exposure Time:	0.0025s~6.4s (2.5ms~6400ms)
Anode Heat Capacity:	140KHU	Large Focus:	2.0mm
Small Focus:	1.0mm	Package:	Package

Product Description

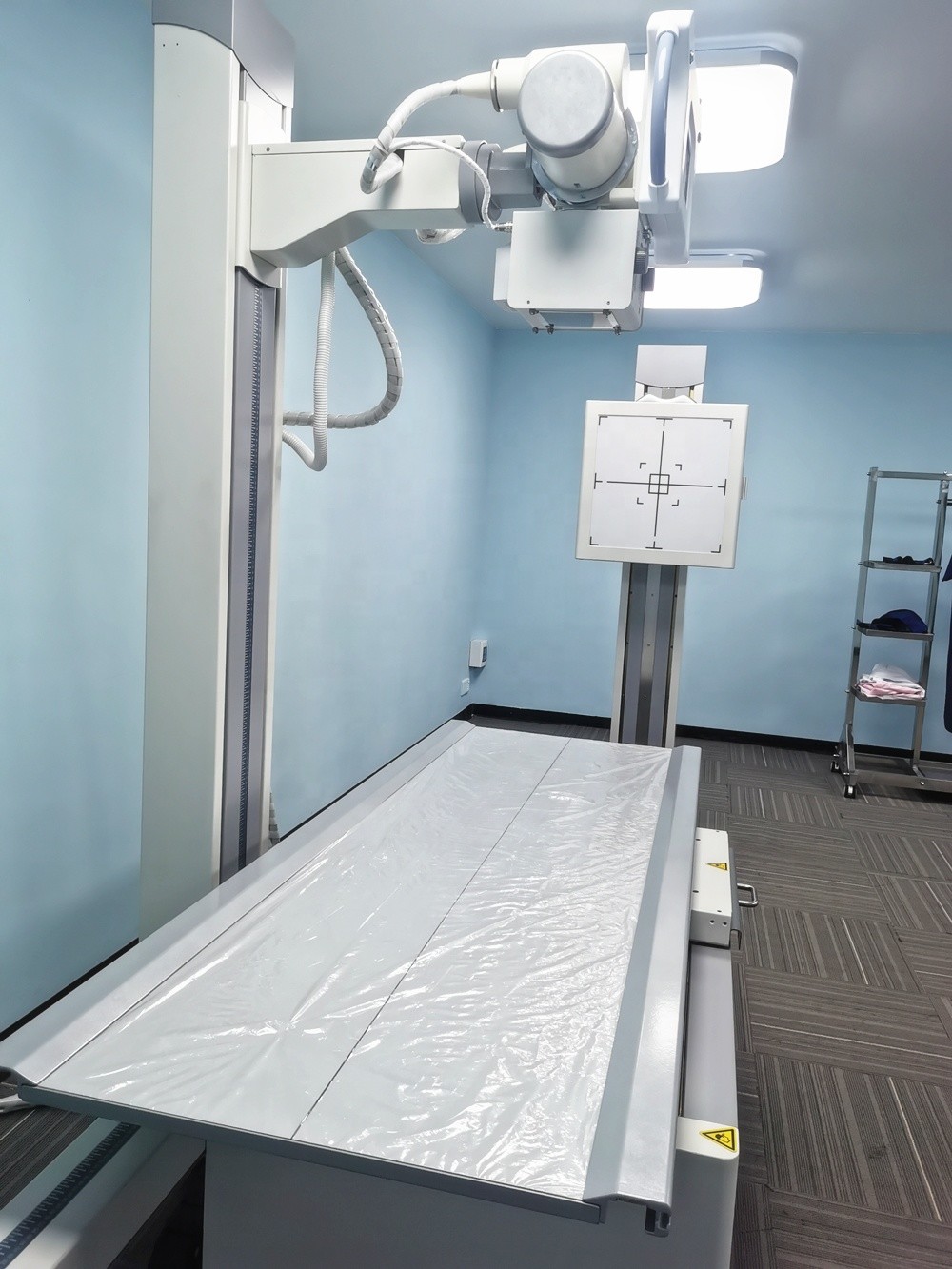

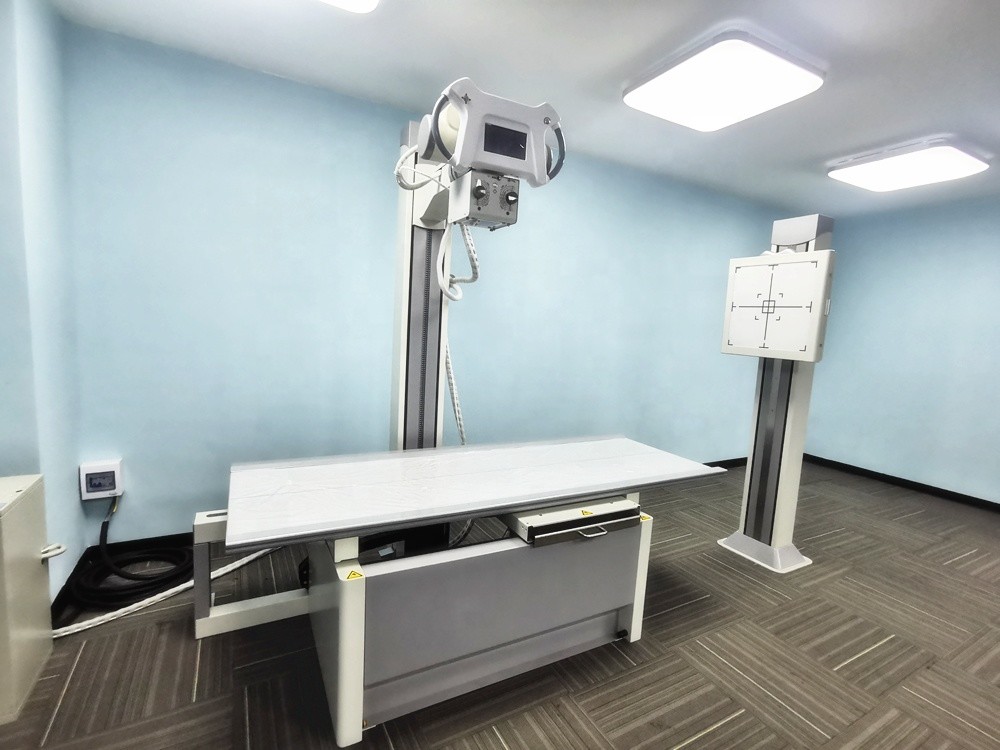

Hospital Medical Equipment High Frequency Digital X-ray Machine

Fixed type digital X ray machine price HX04

50kw 630ma, 32kw 400ma, 20kw 200ma

New Design

Main configurations:

1. High frequency high voltage generator (including control console)
2. X-ray tube
3. Focus: small focus:1.0mm, large focus:2.0mm
4. Anode thermal capacity:140khu

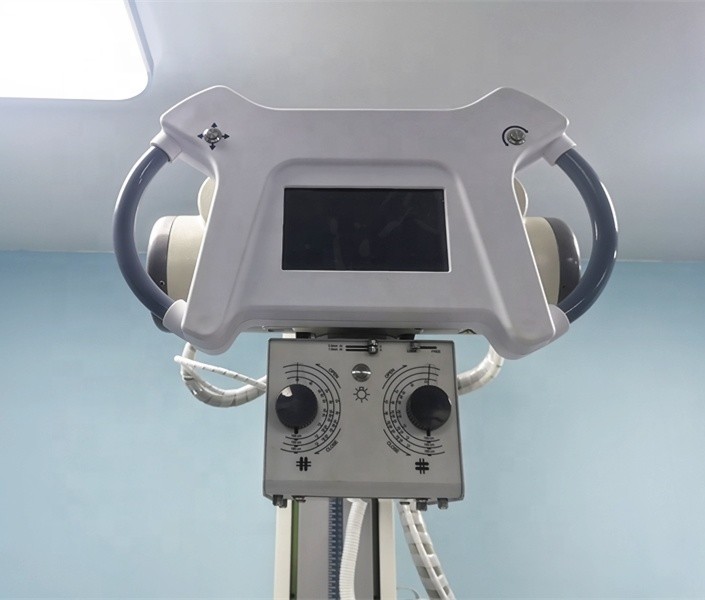

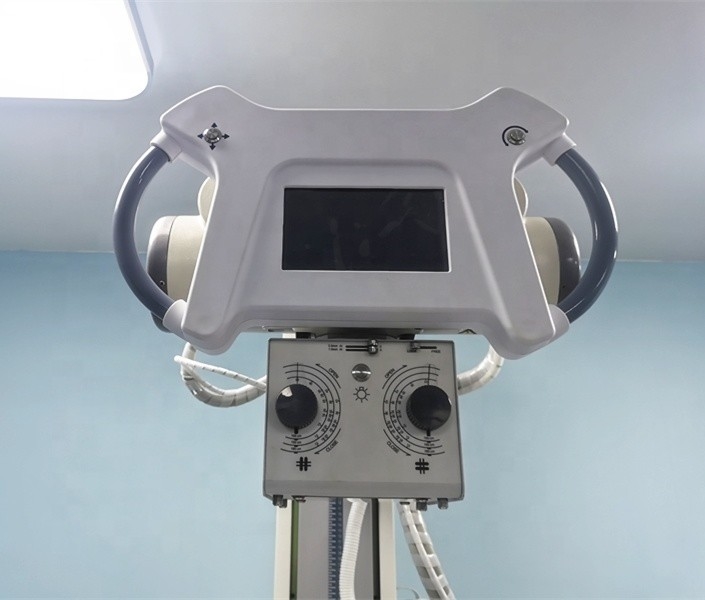

5. Collimator power supply:ac24v
6. Radiography bed
7. X-ray components supporting frame
8. Braking mode:elecrtomagnetic brake, braking force>=98N,
9. Buttor operation filter:N40,r10,11,stationary type,size:14”*17”
10. Bed size: L2000mm*w760+H685mm
11. Vertical moving range: >=825
12. Horizontal moving range: >=250mm

Applications & Advantages

Applicable to orthopedics, emergency room, operating room, etc., As human head, limbs, chest, spine, lumbar spine for medical diagnosis.

Detailed Parameters

Parameter	20kw 200mA	32kw 400mA	50kw 630mA
Intermittent mode	100kV ,200mA,20kW	100kV ,630mA,50kW
Power Voltage	Three-phase five wires 380V±38V
tube current	Radiography16mA~200mA	Radiography16mA~630mA
Output Voltage	Radiography 40-125KVstep 1kV
resistance power	less than 0.5Ω
Output power	20kW	32kW	50kW
Exposure Time	Radiography 0.0025s~6.4s adjustable
Nominal Frequency	≥30kHz
Anode speed	2800r/min
Anode heat capacity	140KHU
Focus	Small focus:1.0mm Large focus:2.0mm
LWH of bed surface	2100mm×825mm×650mm
Horizontal moving range	≥250mm
Vertical moving range	≥825mm
grid density	≥40 lines/cm.
grid ratio	10:01
Focus Distance	100cm
Cassette size	5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″

Main Parts

X-ray generator

Rich DR upgrade reserve interface Fault self-diagnosis and protection Automatic calibration of tube current X-ray tube has the function of filament dormancy AEC function, different ionization chamber as optional Analog一digital double一loop control, simple operation, high intelligence High kV, high current, high power,strong penetration,able to handle obese patients

Filming bed

Lengthways moving range: 1000mm Transverse moving range: 230mm Moving range of flat panel detector holder: 350mm Load-bearing of the filming bed: no less than 150kg Thickness of filming bed board: 8mm solid carbon fiber plate

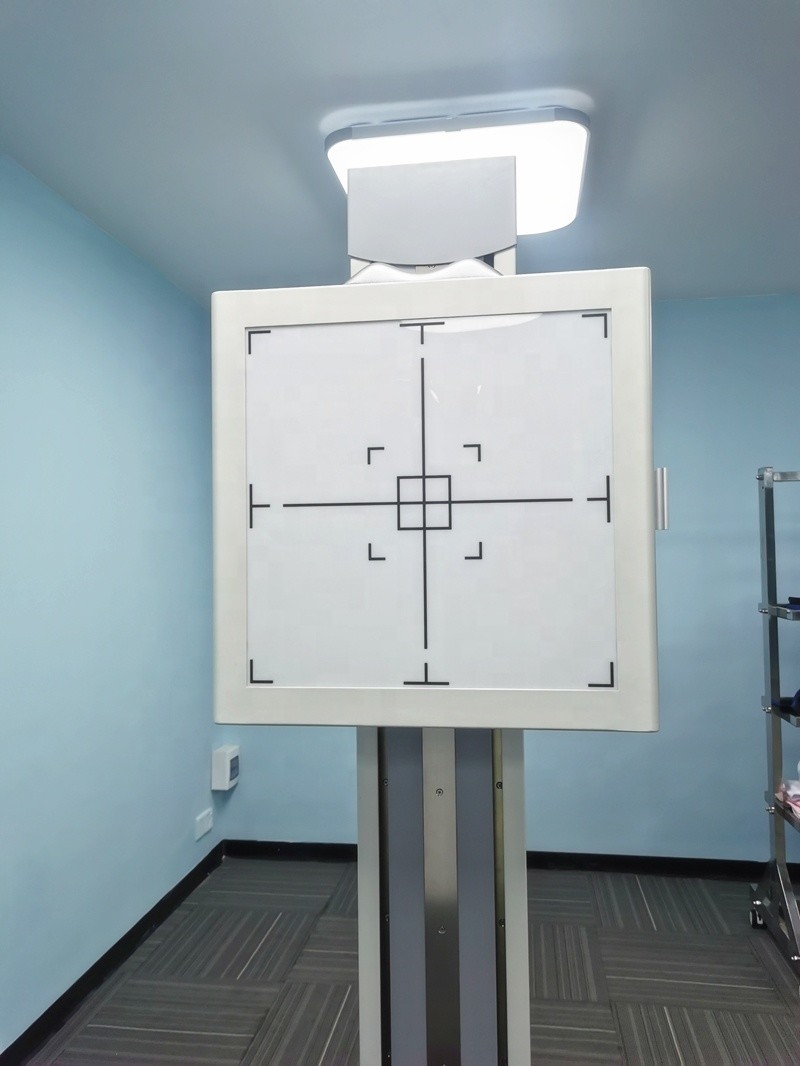

Vertical Type Filming Rack

Height of vertical type filming racks: 1920mm
Up-and-down motion range of flat panel detector:1300mm( manual operation)
