Class I Hospital Emergency Equipment Ceiling Operating Lamp 80000Lux 160000 lux
Contact Person : JUCCY
Phone Number : 0086-17717698563
WhatsApp : +8617717698563
| Minimum Order Quantity : | 1pc | Price : | $13999.00 - $14,999.00/Pieces |
|---|---|---|---|
| Packaging Details : | Standard export package | Delivery Time : | about 10 days |
| Payment Terms : | T/T, Western Union,Payoneer | Supply Ability : | 100 Piece/Pieces per Week |
| Place of Origin: | China | Brand Name: | SUCE |
|---|---|---|---|
| Certification: | CE,ISO13485 | Model Number: | DR09 |
|
Detail Information |
|||
| Warranty: | 2 Years | After-sale Service: | Online Technical Support |
|---|---|---|---|
| Instrument Classification: | Class II | Properties: | Medical X-ray Equipments & Accessories |
| Name: | Digital X-ray Machine | Flat Panel Detector: | Amorphous Silicon Flat Panel Detector |
| Mechanical Structure: | Mobile DR X Ray Machine | High Voltage Generator: | Smart Network Voltage Real-time Monitoring System(smart Monitor) |
| X-ray Tube: | Focus Size:≤0.6mm/1.2mm | Filter Grid: | Ratio:≥10:1 |
| LED Collimator: | Time Limit Of Indicator :30±3s | Workstation: | DELL 5040MT,Intel Pentium G4400 Processor |
| Software Function(patient Management): | Remote Direct Access Patient Information In RIS With Worklist Protocol | Software Function(image Processing): | Supports Dual Or Multi-screen Images Display |
Product Description
|
Item
|
|
Specification
|
|
|||
|
1.X- ray High voltage generator
|
|
|
|
|||
|
1.1
|
|
Standard output power:40kW
|
|
|||
|
1.2
|
|
mA range:10-400mA
|
|
|||
|
1.3
|
|
Tube voltage range:40-150kV
|
|
|||
|
1.4
|
|
mAs range :0.1-250mAs
|
|
|||
|
1.5
|
|
Load time range:0.001s～6.3s
|
|
|||
|
1.6
|
|
Input voltage:450VDC/48VDC±10%
|
|
|||
|
1.7
|
|
High voltage output master frequency:50kHz±5%
|
|
|||
|
1.8
|
|
High voltage transformer structure:The power frequency
|
|
|||
|

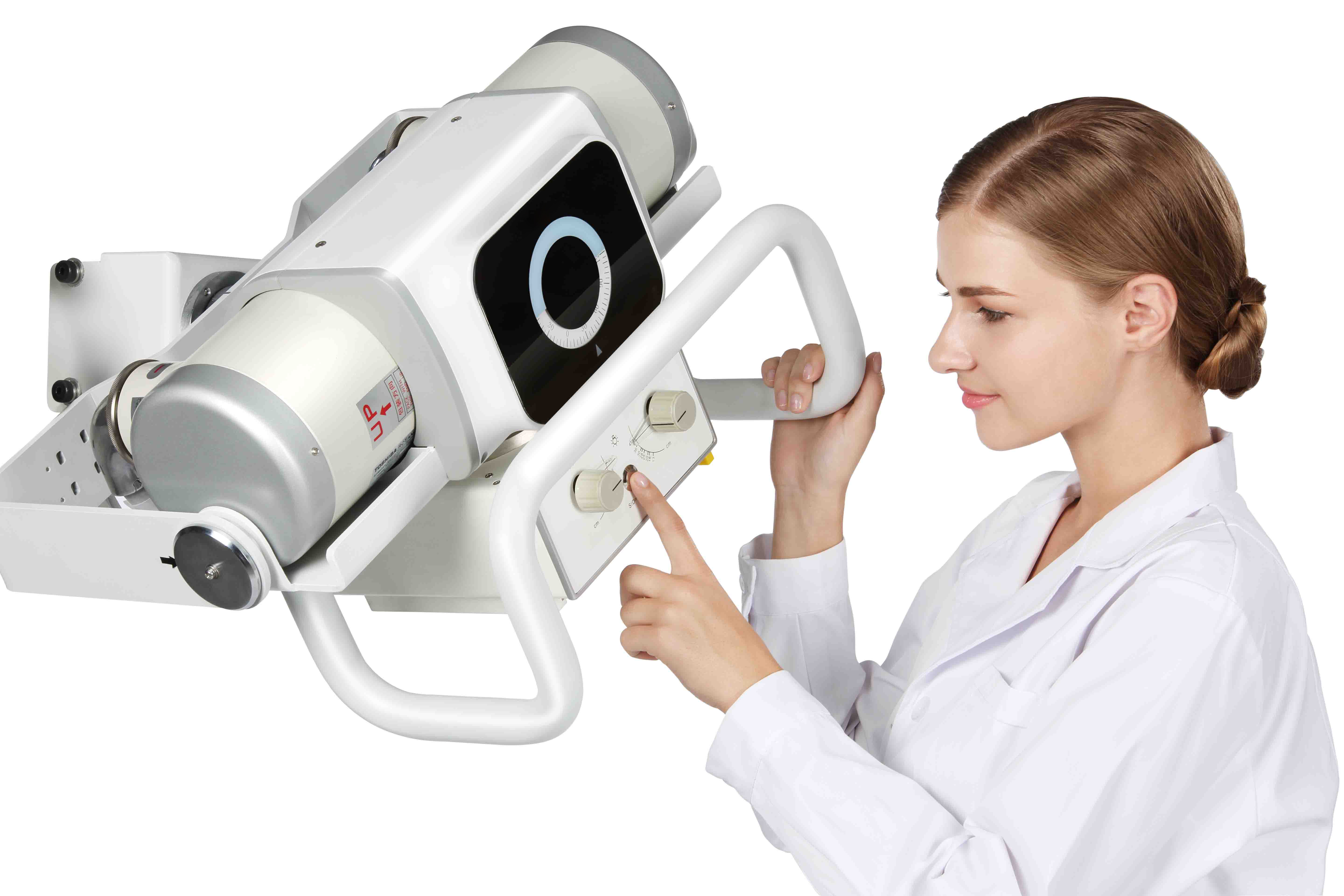

2.X-ray tube ( 配置1) E7843
|
|
|
|
|||
|
2.1
|
Focus range:0.6/1.2mm
|
|
|
|||
|
2.2
|
Anode heat capacity :150kHu
|
|
|
|||
|
2.3
|
Anode types: rotating anode, maximum speed: 3200 revolutions per minute
|
|
|
|||
|
2.4
|
Pipe sleeve heat capacity: 1250kHu
|
|
|
|||
|
2.4
|
The maximum voltage:150kV
|
|
|
|||
|
2.5
|
The anode input power:Big focus:50kW ,Small focus:22kW
|
|
|
|||
|
2.6
|
Anode angle 12°
|
|
|
|||
|
2.7
|
The inherent filtration:1.3mm Al/75kV
|
|
|
|||
|
3. Collimator
|
|
|
|
|||
|
3.1
|
The inherent filtration:1.0 mm Al /75 kV；
|
|
|
|||
|
3.2
|
Collimator is equipped with LED lights(Bright 30S are automatically extinguished)
|
|
|
|||
|
3.3
|
Collimator is built into measuring ruler
|
|
|
|||
|
4. The tube bracket structure
|
|
|
|
|||
|
4.1
|
|
X-ray tube support way: Folding arm
|
|
|||
|
4.2
|
|
Tube focus distance to the ground:507㎜～2000㎜,±5％
|
|
|||
|
4.3
|
|
Arm’s Folding Range :±60°
|
|
|||
|
4.4
|
|
Tube Tilting Angle:±90°
|
|
|||
|
4.5
|
|
Tube Vertical Rotation Angle:-30°~+90°
|
|
|||
|
4.6
|
|
Collimator axial rotation :±360°
|
|
|||
|
5. Detector
|
|
|
|
|||
|
5.1
|
|
Detector:Mars1417V-PSI
|
|
|||
|
5.2
|
|
WIFI connection ,Amorphous Silicon ,whole panel technology
|
|
|||
|
5.3
|
|
Detector valid exposure size :356×432mm
|
|
|||
|
5.4
|
|
Pixel size:150 µm
|
|
|||
|
5.5
|
|
The effective camera size of the detector:14×17inch
|
|
|||
|
5.6
|
|
Gathering matrix:2560×3072
|
|
|||
|
5.7
|
|
Spatial resolution≥3.4 lp/mm
|
|
|||
|
5.8
|
|
Pixel gray level:14bit
|
|
|||
|
5.9
|
|
Detector cooling mode: natural cooling
|
|
|||
|
6. Digital image workstation
|
|
|
|
|||
|
6.1
|
|
CPU frequency:CORE i3
|
|
|||
|
6.2
|
|
Memory capacity:4GB
|
|
|||
|
6.3
|
|
Hard drive capacity :500 GB
|
|
|||
|
6.4
|
|
Display size: 17 inch LCD touch screen
|
|
|||
|
6.5
|
|
Display screen Maximum resolution≥1280×1024；
|
|
|||
|
6.6
|
|
64 bit Windows operation system
|
|
|||
|
7. Image acquisition software
|
|
|
|
|||
|
7.1
|
|
|
Patient registration: acquisition, find the patient data, to prepare for the photography
|
|||
|
7.2
|
|
|
Radio graphic examination:setting system parameters, exposure photography and get the image
|
|||
|
7.3
|
|
|
Images display, image analysis, processing and output
|
|||
|
7.4
|
|
|
Data management: managing patient data, leading in, leading out , batch file, etc in accordance with DICOM3.0
|
|||
|
7.5
|
|
|
Configure calibration: the system components such as flat-panel detector, such as tube for automatic configuration and calibration
|
|||
|
7.6
|
|
|
System diagnosis: monitoring system status, diagnosis of the system fault
|
|||
|
8. Battery
|
|
|
|
|||
|
8.1
|
|
Power supply way
|
|
|||
|
8.1.1
|
|
Lithium battery power supply
|
|
|||
|
8.1.2
|
|
The rated capacity:46.8V,18.9Ah(Lithium battery meets UN38.3 standard requirements)
|
|
|||
|
8.1.3
|
|
Battery capacity: 200 exposures, chest image dosage (exposure conditions: 120 kV, 100 mA, 20ms )
|
|
|||
|
8.2
|
|
Dual power supply,exposure under either wall current or lithium battery
|
|
|||
|
8.3
|
|
Maximum charging 4 hours
|
|
|||
|
8.4
|
|
Can support hand switch and remote control
|
|
|||
|
9. The machine parameters
|
|
|
|
|||
|
9.1
|
|
Appearance size
|
|
|||
|
9.2
|
|
Whole machine width:650 mm
|
|
|||
|
9.3
|
|
Whole machine length::1560 mm
|
|
|||
|
9.4
|
|
Whole machine height:1490 mm
|
|
|||
|
9.5
|
|
Whole weight (include detector):220kg
|
|
|||
|

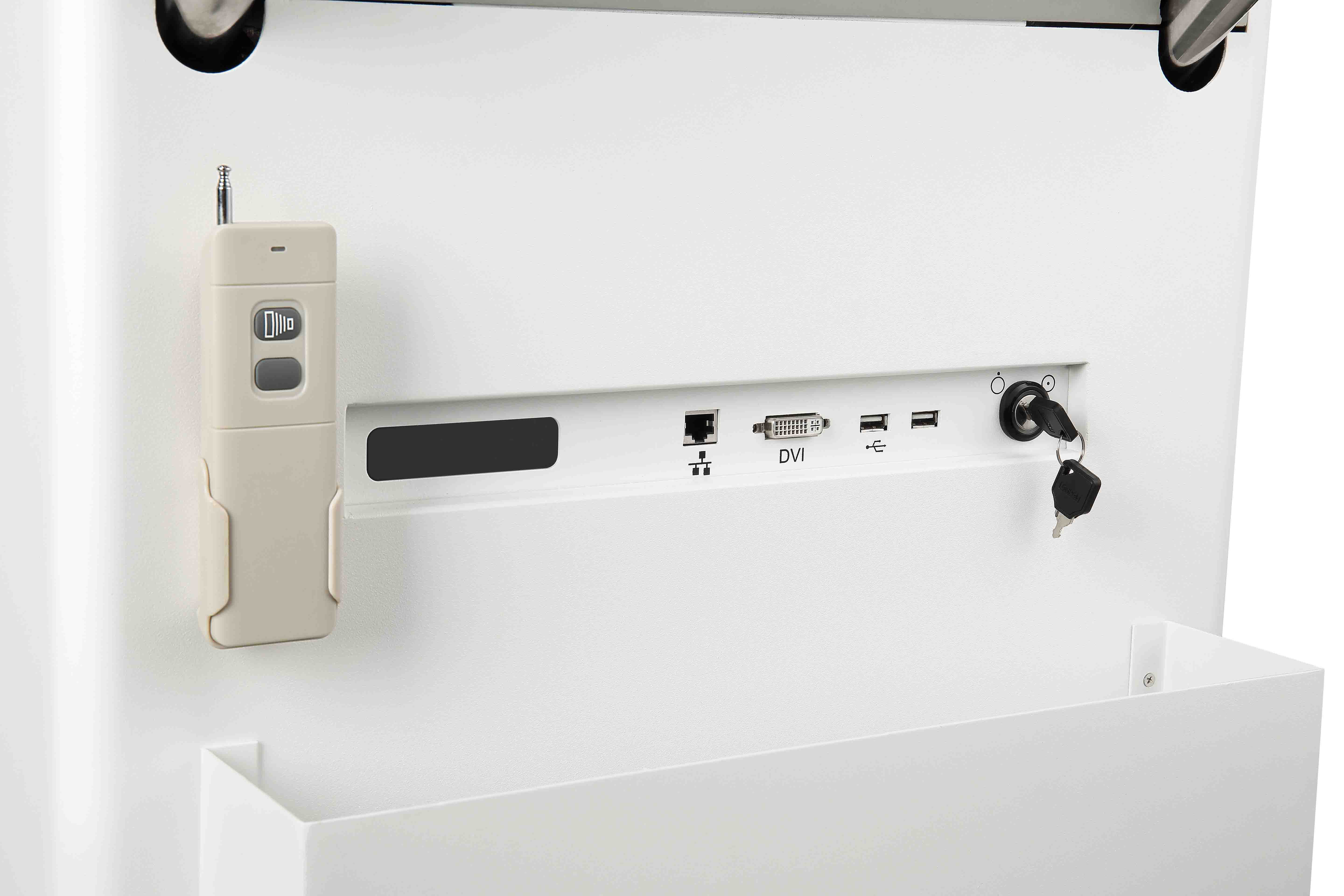

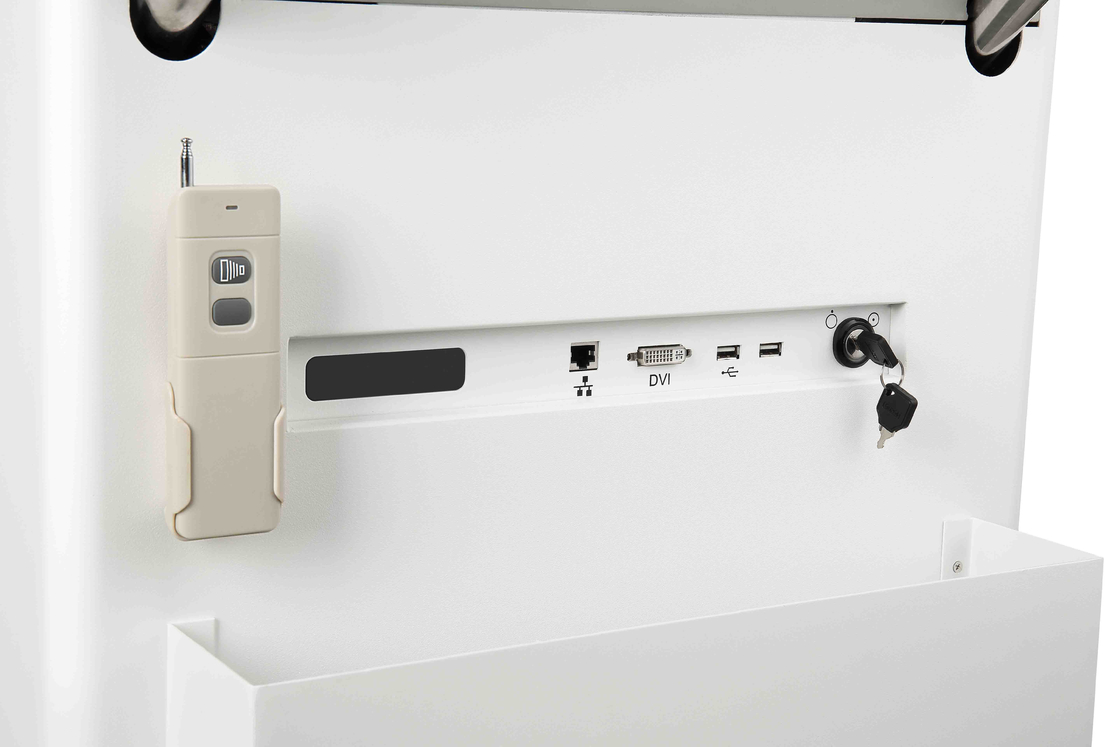

10. External interface
|
|
|
|
|||
|
10.1
|
|
|
Display interface(DVI)
|
|||
|
10.2
|
|
|
Wireless network data transmission(WIFI)
|
|||
|
10.3
|
|
|
Cable network interface
|
|||
|
10.4
|
|
|
USB(2个)
|
|||
|
10.5
|
|
|
Choose a chest rack
|
|||
|
10.6
|
|
|
The selection of moving flat bed
|
|||
|
11. Aftersale service
|
|
|
|
|||
|
11.1
|
The machine warranty 1 year
|
|
|
|||
|
11.2
|
1 set of complete operation and maintenance manual
|
|
|
|||
|
11.3
|
Provide site application and service training
|
|
|
|||
|
11.4
|
Free service hot line
|
|
|
|||
|
12. copyright certificate
|
|
|
|
|||
|
12.1
|
DR service control application software
|
|
|
|||
|
12.2
|
mobile Dr embedded system software
|
|
|
|||
|
12.3
|
mobile Dr generator control software
|
|
|
|||
