Class I Hospital Emergency Equipment Ceiling Operating Lamp 80000Lux 160000 lux
Contact Person : JUCCY
Phone Number : 0086-17717698563
WhatsApp : +8617717698563
| Minimum Order Quantity : | 1pc | Price : | $7,999.00 - $8,999.00/Sets |
|---|---|---|---|
| Packaging Details : | carton package | Delivery Time : | about 10 days |
| Payment Terms : | T/T, Western Union,Payoneer | Supply Ability : | 5000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | SUCE |
|---|---|---|---|
| Certification: | CE,ISO13485 | Model Number: | GT03E |
|
Detail Information |
|||
| Instrument Classification: | Class I | Properties: | Medical X-ray Equipments & Accessories |
|---|---|---|---|
| Name: | DSA Injector | Electrical Requirements: | A.c.220V, 50Hz, 800VA |
| Operation Interface: | Selectable In English, French, German And Chinese | Flow Rate: | 0.1 ML/sec. To 10 ML/sec. In 0.1 ML/sec. Increments |
| Volume: | 0.1 Ml To Max. Syringe Capacity | Hold Capability: | More Than 30 Minutes |
| Storage Capabilities: | 100 Protocols | Injection Or Scan Delay: | 0 To 3599 Seconds In 1 Sec. Increments |
| Syringe Capacity: | 150ml | Multi-Phase: | 1-8 Phases Per Injection |

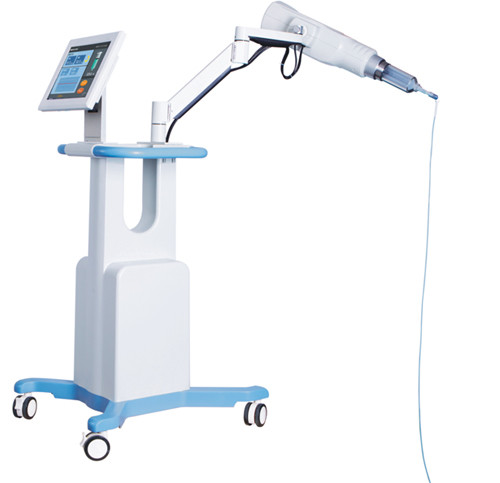

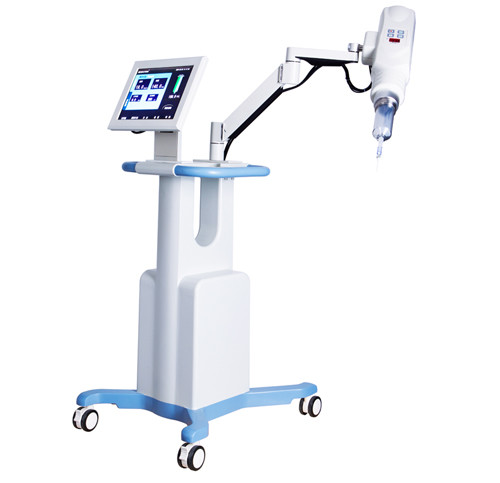

Product Description
|
Length: 27.6 ″ (70.0cm) Width: 21.3 ″ (54.0cm) Height: 53.6 ″(136.0cm)
|
|
|
Weight
|
27.5kg
|
|
Control Room Console (Optional)
|
Dimension: Length: 4.55″(11.55cm) Width: 12.68″(31.8cm) Height:9.77″(24.81cm)
Weight: 4.1 Kg |
|
Electrical Requirements
|
a.c.220V, 50Hz, 800VA
|
|

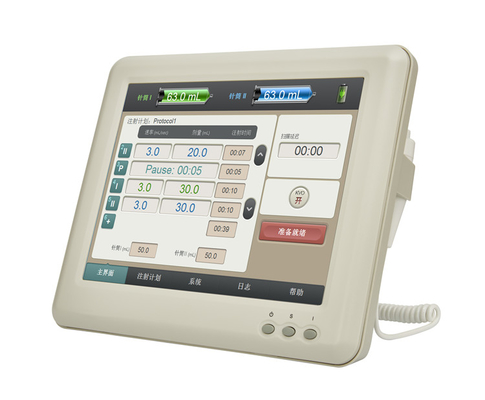

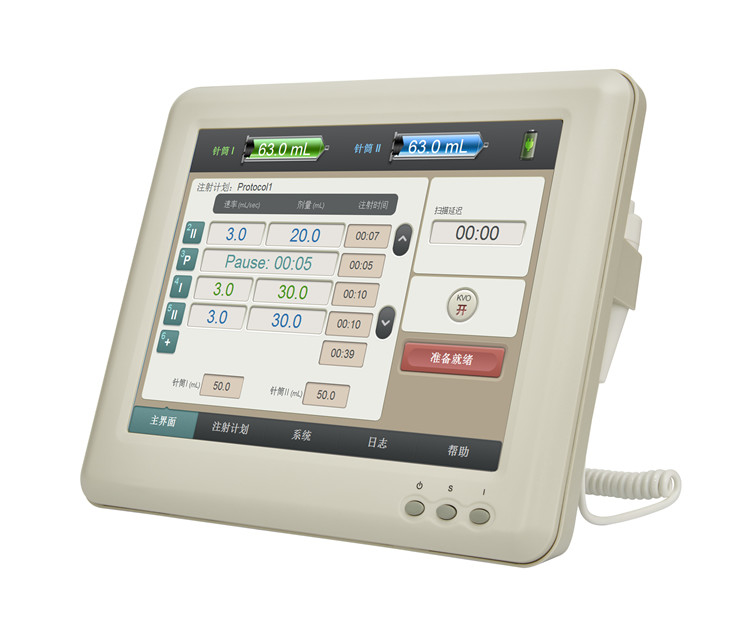

Console
|
Color Touch Screen
|
|
Operation Interface
|
Selectable in English, French, German and Chinese
|
|
Flow Rate
|
0.1 to 50 ml/sec. in 0.1 ml/sec. increments
|
|
Volume
|
0.1 ml to max. syringe capacity
|
|
Rise Time
|
0.1~1.0 sec., in 0.1 ml increments
|
|
Syringe Capacity
|
150ml
|
|
Pressure Limit
|
settable from 300 psi to 1200 psi (2070~8280kPa) in 1 psi increments
|
|
Pressure Display
|
display real-time pressure curve
|
|
Pressure Threshold:
|
automatically stop injection when pressure over the threshold
|
|
Pressure warning
|
alarm and stop injection when over preset pressure limit
|
|
Injection or Scan Delay:
|
0 to 3599 seconds in 1sec. increment
|
|
Autofill
|
settable flow rate from 3ml/sec. to 8ml/sec., volume from 10ml to syringe capability
|
|
Multi-Phase
|
1-8 phases per injection
|
|
Pause
|
0~999 sec. in 1 sec. increments
|
|
Hold Capability
|
More than 30 minutes
|
|
Storage Capabilities
|
100 protocols
|
