CPAP Pediatrics Instruments For ICU PICU NICU High Flow Nasal Cannula

Contact Now

CPAP Pediatrics Instruments For ICU PICU NICU High Flow Nasal Cannula

Minimum Order Quantity :	1pc	Price :	$4,500.00/Sets 1-4 Sets
Packaging Details :	Carton Box	Delivery Time :	about 5 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	10000pcs/month

Place of Origin:	Guangdong, China	Brand Name:	Lifotronic
Certification:	CE,ISO13485	Model Number:	Hi-800

Detail Information
Power Source:	Hydraulic	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	Metal, Plastic, Steel
Shelf Life:	1years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	ISO13485
High Light:	CPAP Pediatrics Instruments , Hydraulic high flow nasal cannula , ICU PICU NICU Pediatrics Instruments

Product Description

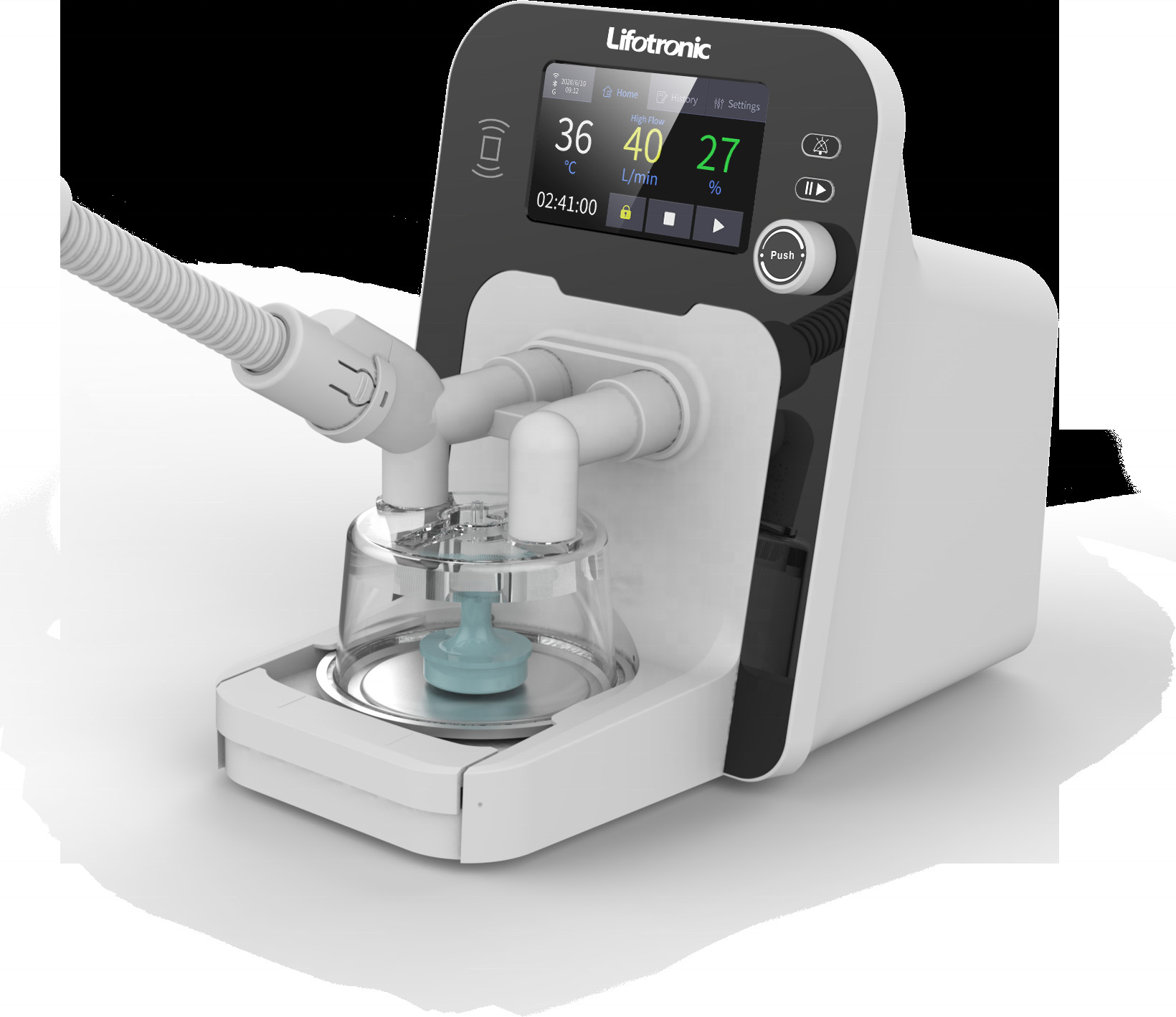

Medical HFNC machine CPAP home therapy infant cpap for ICU PICU NICU High Flow Nasal Cannula

Product Description

What is high flow nasal cannula(HFNC)?

The high flow nasal cannula (HFNC) is a device used to deliver fixed supplemental oxygen or airflow to a patient in need of respiratory help.

HFNC oxygen therapy was introduced, accompanied by heated humidification systems to prevent the associated drying or upper airway mucosa and to increase patient comfort.

HFNC is an emerging technique designed to provide oxygen at high flows (above 30 l/min) with an optimal degree of heat and humidification via an interface consisting of a silicone cannula that fits, without occluding, the nose. This offers better comfort, compared with NIV, and a more efficient oxygenation than COT.

HFNC was first introduced into clinical practice in the early 2000s as a noninvasive system to manage apnoea in premature neonates and since then its use in paediatrics, particularly in respiratory failure caused by bronchiolitis, is well established.

Successively, HFNC has been investigated in adults with acute respiratory failure, gaining increasing popularity among intensivists. More recently, the use of this new device has spread out of intensive care units (ICUs), particularly the respiratory units where it is widely and increasingly used, often replacing NIV in the management of respiratory failure from a variety of aetiologies.

Decrease Breathing Workload

The high-flow can reach or exceed the maximum inspiratory flow rate of the patient's active inhalation, reducing inhalation resistance and breathing work, and reducing oxygen consumption; The inhaled gas of HFNC is the ideal inhaled gas, which replaces the humidification function of the patient’s upper airway and reduces the metabolic work of the respiratory tract.

Dead space washout

Recent studies show that nasal high flow (NHF) therapy can support ventilation in patients with acute or chronic respiratory disorders. Clearance of dead space has been suggested as being the key mechanism of respiratory support with NHF therapy.

HFNC VS NIV

HFNC is the only noninvasive respiratory support that does not increase dead space.

The simplicity and excellent tolerance of the system is attractive.

Functional residual capacity enhancement 25% with HFNC

FRC:Functional residual capacity

Why Choose Us

✔ Optimal heat

Multiple temperature settings (31-37℃, increment 1℃)

✔ Optimal humidity

Active humidity humidified at 44 mg H2O/L

^{✔ No mouth or nasal drying}

^{✔ No mask removal}

^{✔ Better communication}

^{✔ Different Size Nasal Cannula Choosable}

Multiple measures to prevent cross infection

No disinfection necessary. the patient circuit is disposable and detachable.

One way valve design to avoid gas back to the unit.

Carry out disinfection cycle with disinfection tube.

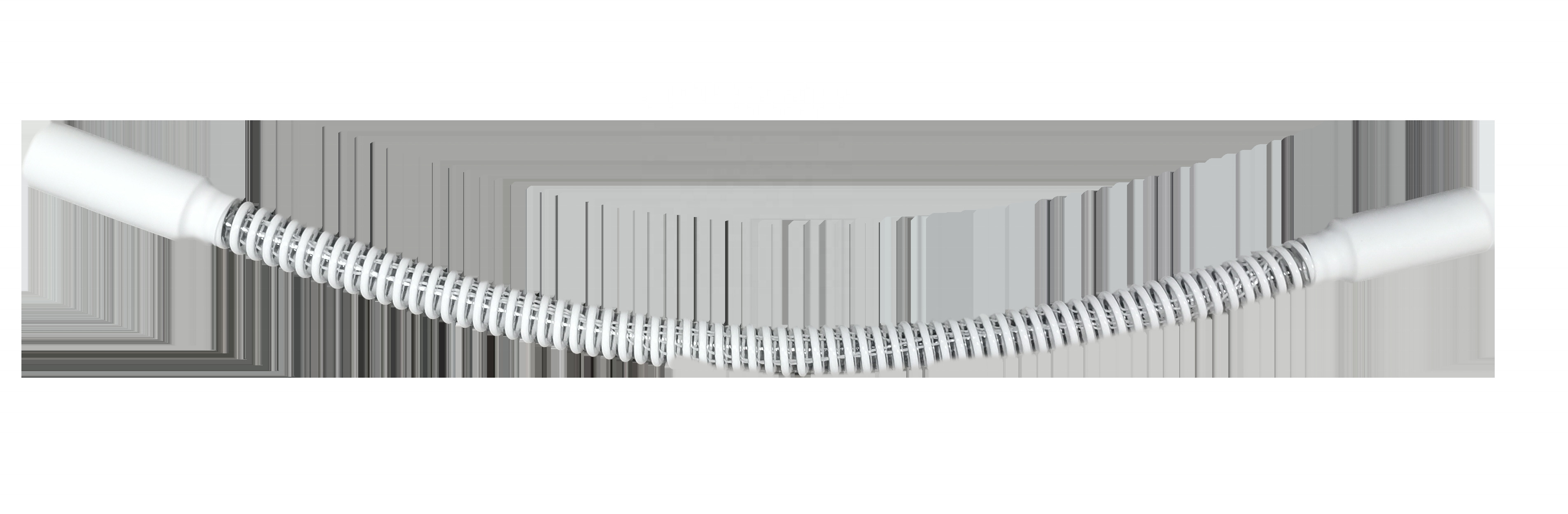

Heating tube and water chamber

★ Dual spiral heater wires (reduces heat loss and reduces condensation) ★ Unique integrated temperature sensor ★ Lightweight, flexible delivery tubing

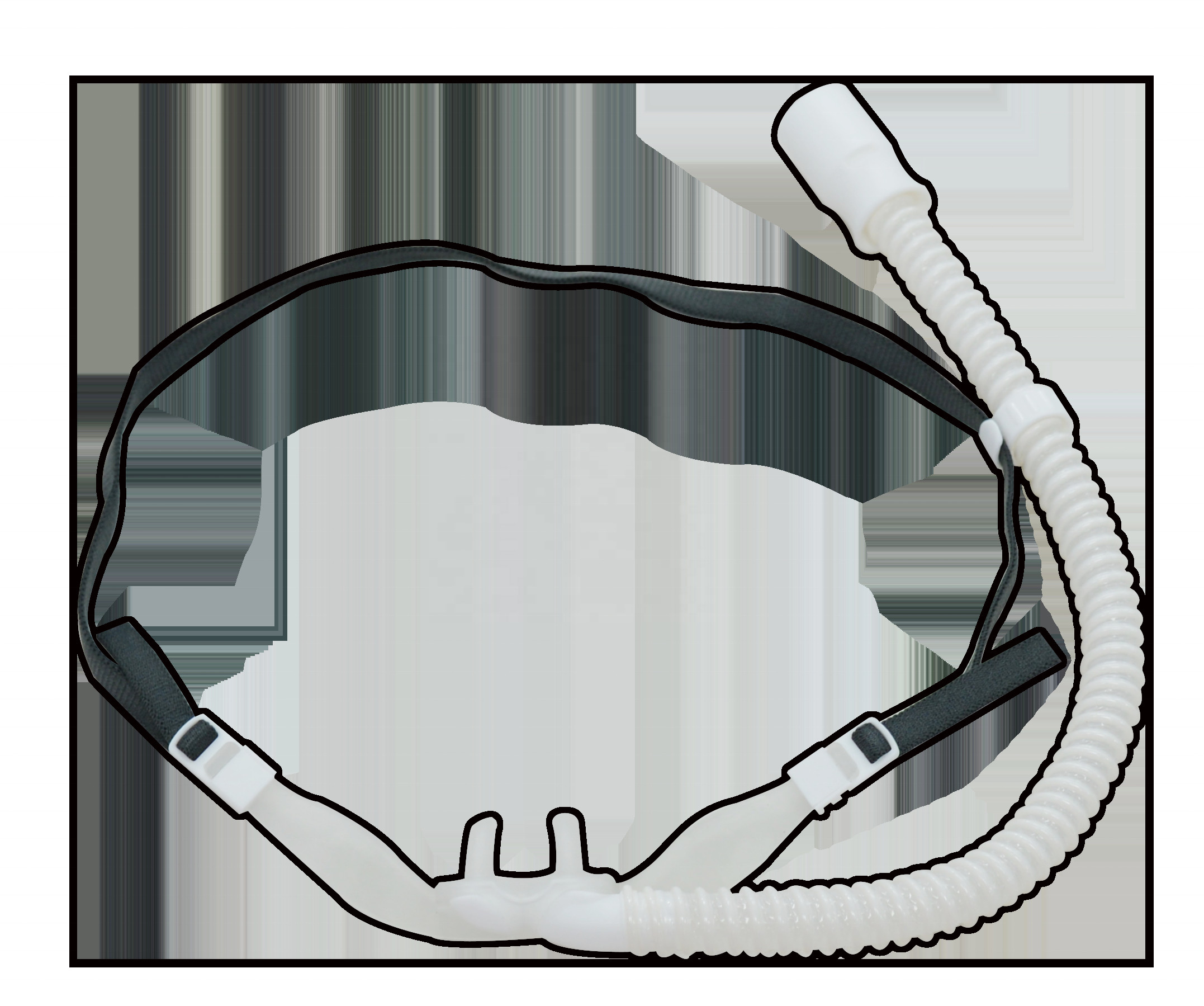

Nasal Cannula

★ Soft and flexible nasal prongs ★ Wide-bore design reduces gas jetting ★ Prongs contoured to the patient’s nose ★ Adjustable head strap (Easier readjustment) ★ Improves prong stability in the nostrils

Specification

Model	Hi-800
Device Classification	Class II
Purposes	Warmed and humidified respiratory gases
Flow rate range	2-80L/min
Oxygen percentage range	21%-100%
Adjustment method of oxygen concentration	Built-in electronic flow meter and controllers
Temperature range	31℃-37℃,increment 1℃
Interface	5-inch color LCD touch screen
Humidity	≥33mg/L at 37℃ target
Water chamber	Volume: ≥90mL
	Automaticly fill liquid to the required level and retain the level
Session time	0-24h
Disinfection tube	Yes
Length of heating tube	1.9m
Alarms	12 types of alarms
Accessories(Sold Separately)	Water chamber, heating breathing tube, nasal cannula(adult, infant),tracheostomy interface
Lifetime of the unit	10 years
Power Cord	Hospital Grade Plug
Controller Dimensions	Height: 28.4cm Width: 39.4cm Depth: 21.2cm
Controller Weight	3.75kg
Power Supply	100-240 VAC, 550VA, 50/60 Hz
Shipping Case Dimensions	Height: 43.5cm Width: 45.5cm Depth: 30.0cm
Shipping Case Weight	6.0kg
Noise Max.	50dB
Operating Conditions	Temperature: 18°C to 28°C Relative Humidity: 80% Maximum, non-condensing Atmospheric Pressure: 750 mbar to 1060 mbar
Transport & Storage Conditions	-20°C (-4°F) to 55° C (131°F) If the user suspects that the environment conditions for transport and storage have been exceeded, return the unit for service.

Certificates
