2020 Professional Portable Diagnostic Ultrasound System
2020 Professional Portable Diagnostic Ultrasound System 2020 Professional Portable Diagnostic Ultrasound System
Contact Now

2020 Professional Portable Diagnostic Ultrasound System

Minimum Order Quantity : 1PCS Price : $1,500.00/Sets >=1 Sets
Packaging Details : portable diagnostic ultrasound system packing:Dimension:35.5*36.6*7.5 CM. Delivery Time : 5-8 work days
Payment Terms : T/T, Western Union Supply Ability : 50 Set/Sets per Week portable diagnostic ultrasound system
Place of Origin: Guangdong, China Brand Name: SUCE
Certification: CE Model Number: UBox-10

Detail Information
Warranty: 1 Year After-sale Service: Return And Replacement
Instrument Classification: Class II Name: Portable Diagnostic Ultrasound System
Other Name: 2020 Portable Diagnostic Ultrasound System Weight: 1.2kg
Dimension: 230mmx200mmx64mm Monitor: Windows XP(Best) Or Windows 7
Work Time: 3 Hours Warrany Time: 1 And A Half Years
Standard Configuration: Convexarray Probe Aplication: Private Clinic , Hospital
Battery Volume: No Type: Portable Ultrasonic Diagnostic Devices
Port: Guangzhou

Product Description

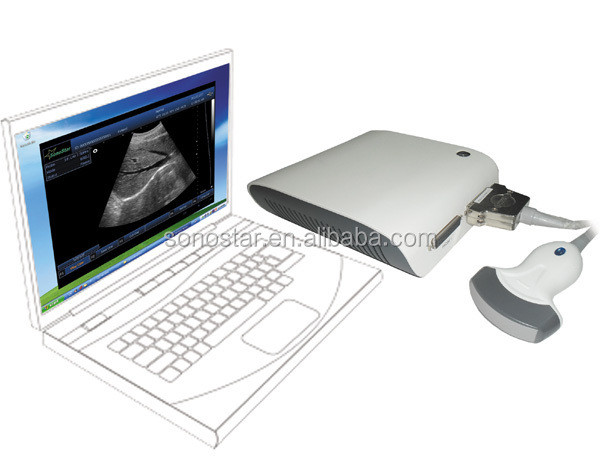

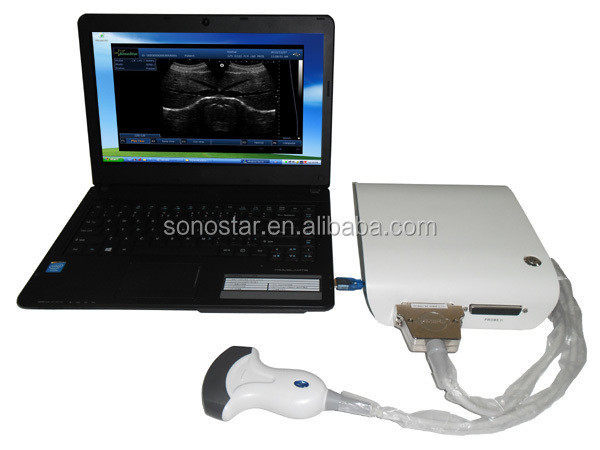

UBox-10 Ultrasound Box is easy to use, only need to connect it to computer by USB cable and install the software in the computer. Then can realizable the function as a computer based ultrasound B Scanner.
The keyboard is use the computer keyboard, by software you can define your own computer keyboard keys to a certain function button. Such as the "Space" key can be defined as "Freeze" button, the "+" and "-" can set to value increase and decrease, all by your define.



Feature:
-Use computer of user's, lost cost to get ultrasound scanner
-Small and light
-PC based, powerful function, large volume storage
-Full digital, clear image
-3D image function(option)
-Silica gel waterproof ultrasound keyboard(option)
-Print by computer’s USB laser/inkjet printers
-Can work with external battery(option)
-Multiple language:  English, French, German, Spanish,  Russian, Italian, Portuguese, etc.

Specification:
-Operation system: windows XP(Best) or windows 7
-D-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop::max. 1024 frames
-Scann mode: B, 2B, B/M, M, 4B, 9B, ZOOM(Real-time zoom on B mode)
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
  enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Measurement and calculation(human):
  B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
  M mode: heart rate, time, distance, slope and stenosis;
  Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
  Obstetric: gestation age, fetal weight, AFI;
  Cardiology: LV, LV function, LVPW, RVAWT;
  Urology: transition zone volume, bladder volume, RUV,   prostate, kidney;
  Small parts: optic, thyroid, jaw and face.
-Measurement and calculation(veterinary): Cattle: BPD, CRL, TD;
  Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD
-Image store: by computer hardisk or USB disk
-Print: by USB laser/inkjet printers with computer
-DICOM3.0, medical digital imaging and communication
-3D image function(function): can get rebuilt 3D image by any probe
-Dimension: 230mm×200mm×64mm
-Weight: with one probe around 1.2kg
-Work time by battery(optional): about 3 hours
-Probe Connector::2

Standard Configuration:
Ultrasound Box, USB connect cable, Convex probe(R60, 3.5MHz), Power adapter,
CD with ultrasound software, Manual.

Optional:
Linear, Trans-vaginal, Micro-convex, Rectal Probe; Ultrasound keyboard; Computer; Battery; Bag.




Certifications

2020 Professional Portable Diagnostic Ultrasound System 0


Our Services
1.  We offer 18 months warranty period, 24 hours calling service.
2. There is OEM&ODM service for distributor.
3. Support iOS, Android, Windows connection, APP belongs to Sonostar, free for lifetime use.
4. 100% Calibration before Shipment.
5. All products will be shipped within 1-3 working days upon payment.
6. After-service: Support return or replacement.
