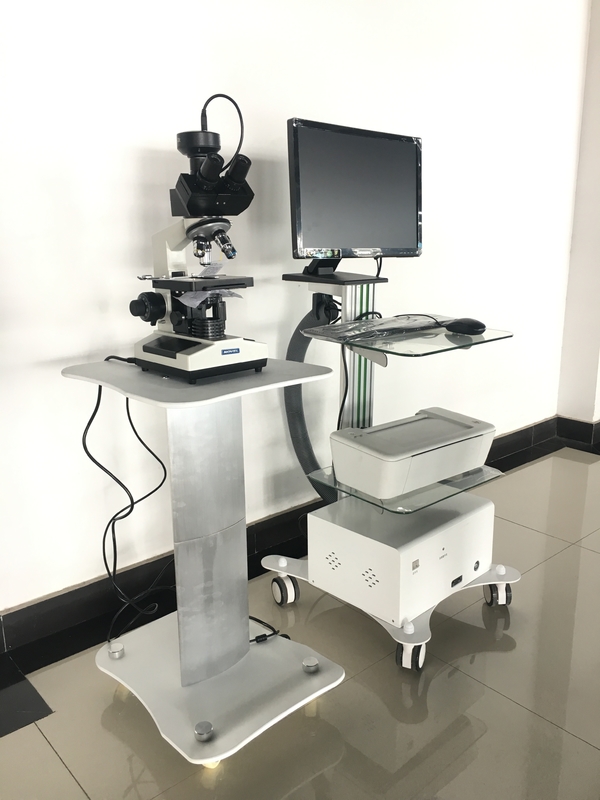

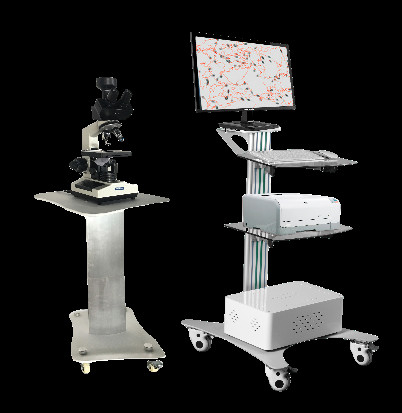

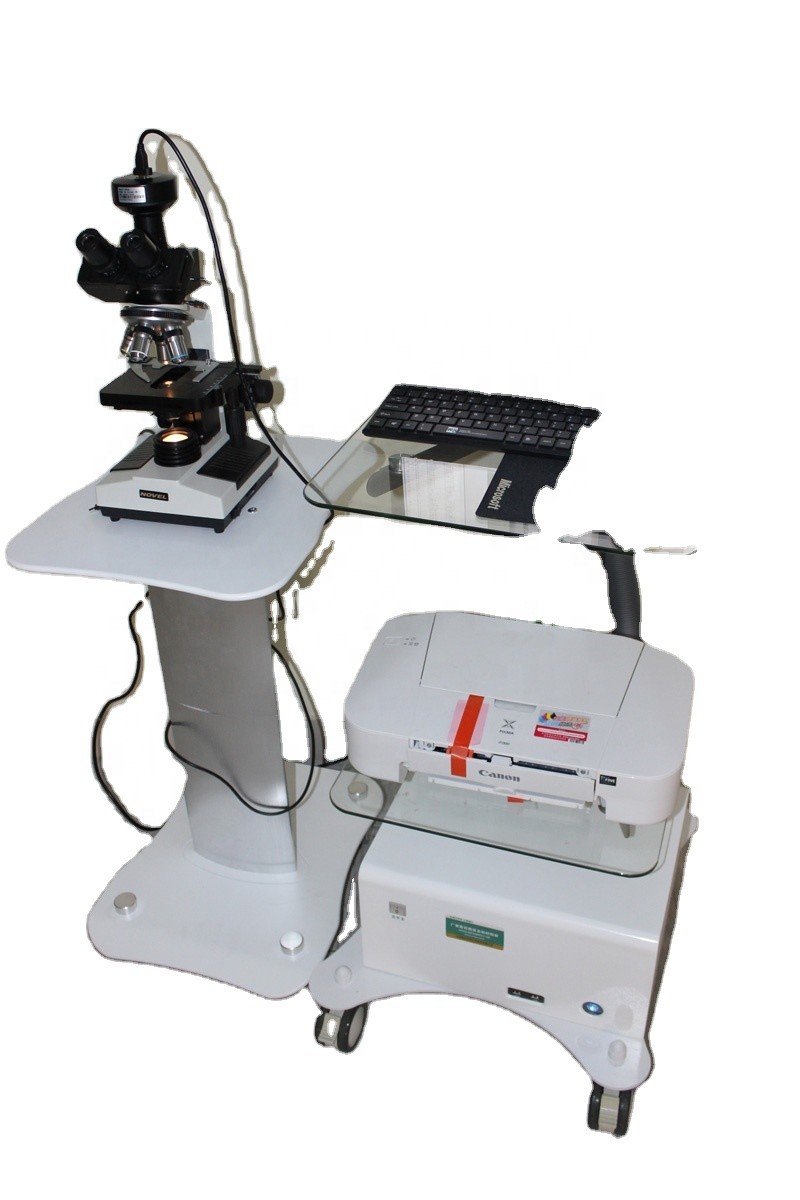

High Resolution Clinical Lab Instruments Sperm Analyzer Semen Analyzer With Trolley

Minimum Order Quantity :	1pc	Price :	$999.00 - $1,299.00/Sets
Packaging Details :	standard exporting packgae	Delivery Time :	about 10 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	5000 Set/Month

Place of Origin:	China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	OEM

Detail Information
Type:	Bacteria Analysis System	Instrument Classification:	Class II
Warranty:	1 Year	After-sale Service:	Online Technical Support
Product Name:	Sperm Analyzer	Carton Size:	6760111 Cm
Gross Weight:	65.50 Kg	Microscope Objective Lens:	10x.20x.40x.100x
Range Of Test Speed:	0-180 Um/s	Frame Number Of Picture:	0-75
Analysis Time:	1-5 Seconds Or Longer	Group Number Of Collected Images:	1-15 Groups
High Light:	Clinical Lab Instruments Class II , High Resolution Sperm Analyzer , Semen Analyzer With Trolley

Product Description

Recommend Products

Clinical Equipment High Resolution Sperm Analyzer Semen Analyzer with Trolley

Product Description

General Introduction:

Intelligent product used in modern reproductive medicine with the combination of computer image processing technology and advanced artificial intelligence technology. It can be used for automatic identification of sperm and automatic tracking of sperm movement fast, finish the analysis for a number of parameters in conformity with the WHO international standards and take comprehensive quantitative analysis of sperm activity and static characteristics. It is suitable for clinical semen test, providing an important scientific basis for male fetility.

Apparatus Features:

●Can filter out all kinds of impurities which
are different from sperm to ensure the test accuracy.

●Scatheless test can ensure the sperm's natural motion state and monolayer
sampling.

●All the data and dynamic and static images of sperm examination for patients are digitally stored. It can used for variedly querying, modifying, adding up, and printing inspection reports, and also be shared to within the networking freely.
●Advanced morphological analysis software, clearly and intuitively colorful picture.

Examination Items ●Sperms density, survival rate of the sperms, the movement locus of sperms, and distribution curve of sperms movement ●Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the curvilinear motion of the sperms ●Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the rectilinear motion of the sperms ●Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the average path motion of the sperms ●Graded speed of sperms motion: the survival rate of A rapid motion forward, B slow motion forward, C non travel forward, D hyperslow or motionless of the sperms ●The side-way amplitude of sperms, sperms wing, whipping frequency of sperms, the rate of rectilinear motion, total number ●Linear speed, average speed of motion, the sperms' number of linear motion

Specification

Maximum of the tested sperms	1000
Range of test speed	0-180um/s
Group number of collected images	1-15 groups
Microscope objective lens	10x.20x.40x.100x
Frame number of picture	0-75
Resolution of particle diameter	0-150μm/s
Analysis time	1-5 seconds or longer
Displayed content of sperm test system is no less than	1) distribution curve of static sperms, 2) the features data of semen and statistical data from analysis of all the main functions, 3) sperm dynamic trajectory curve, 4) display various sperms motion speed and energy is arrhythmic map of sperms, 5) case information for management such as patients' name;
Output content from sperms test system is no less than	1) the main technical data of sperms, 2) sperm dynamic trajectory curve, 3) analysis and determinant histogram 4) case information for management such as patients' name
