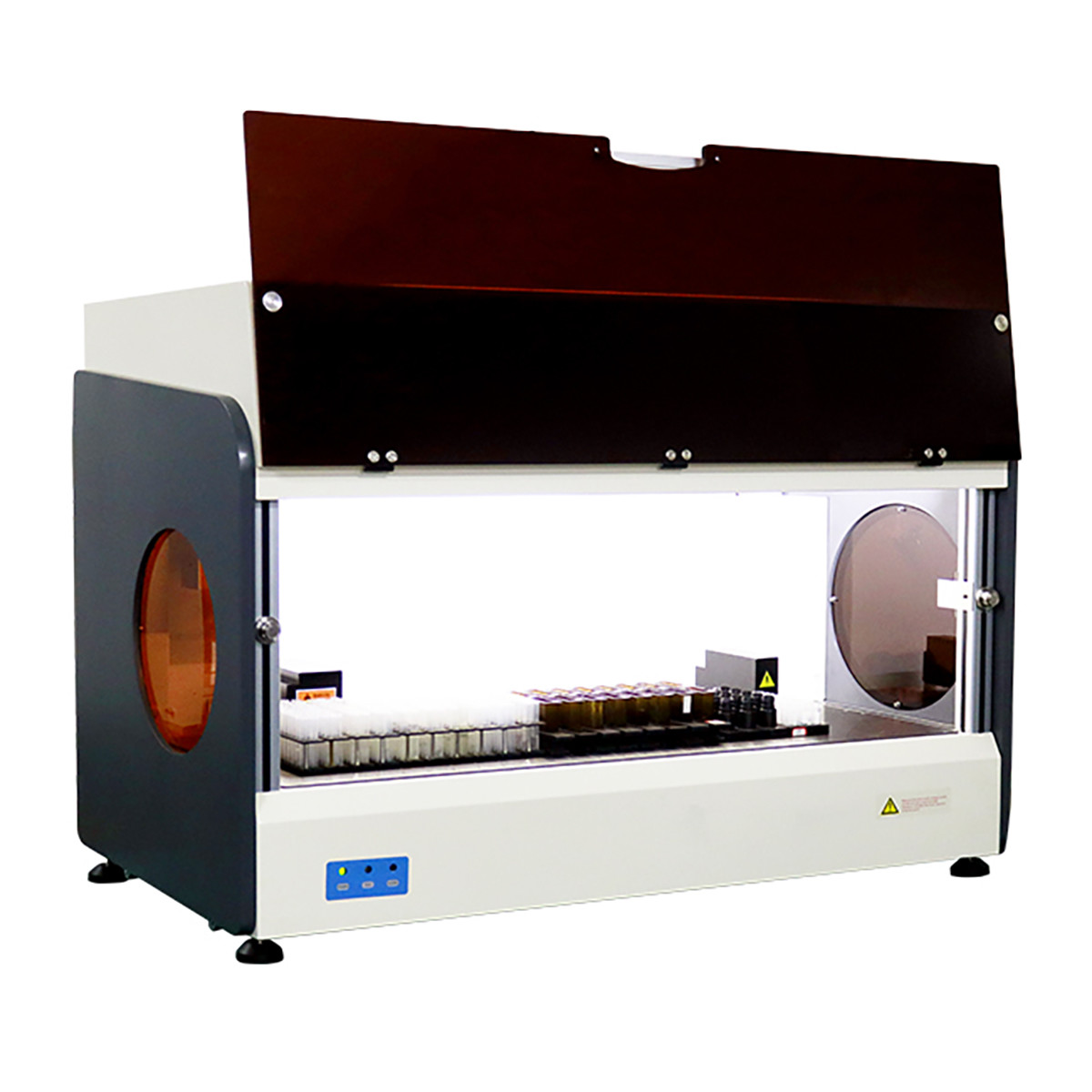

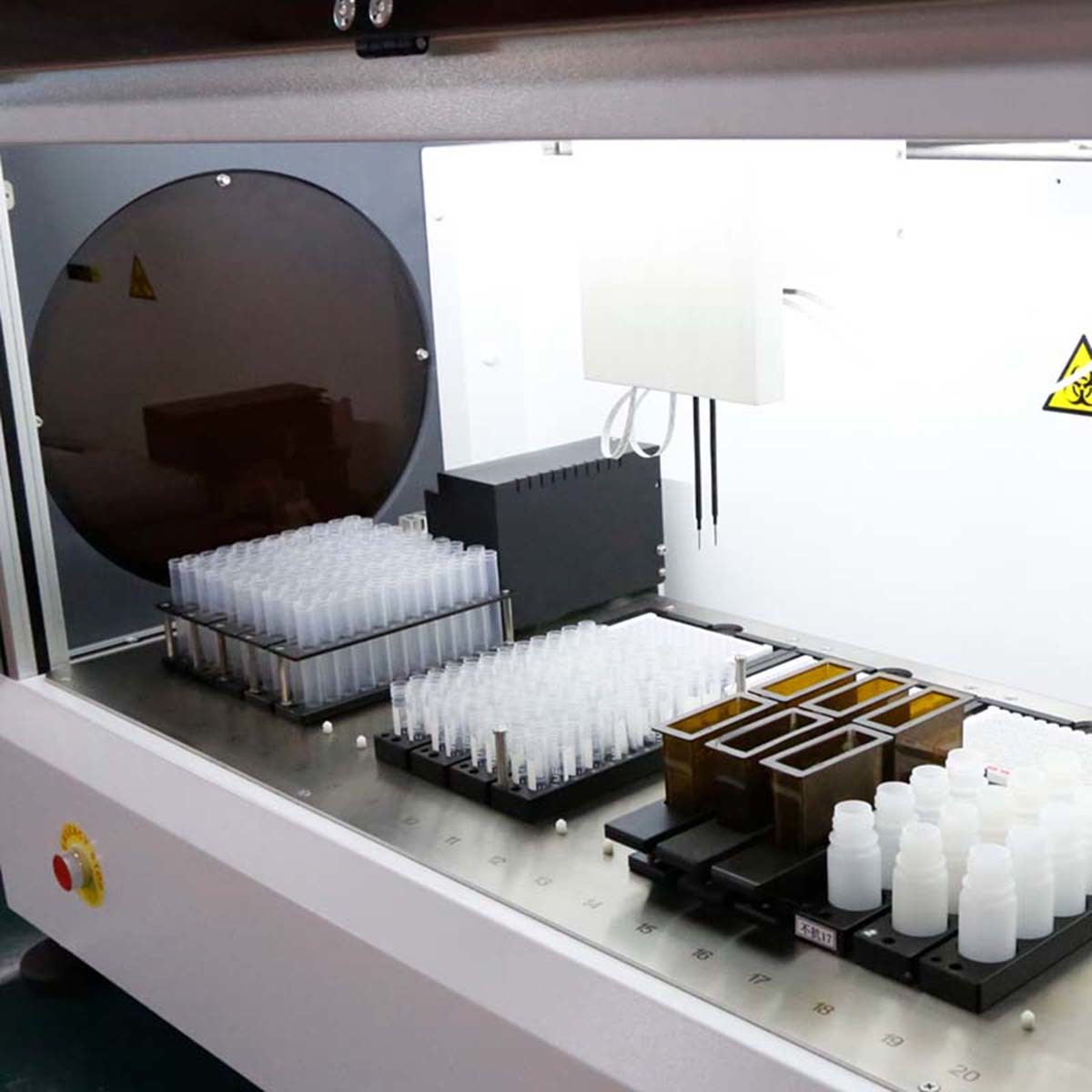

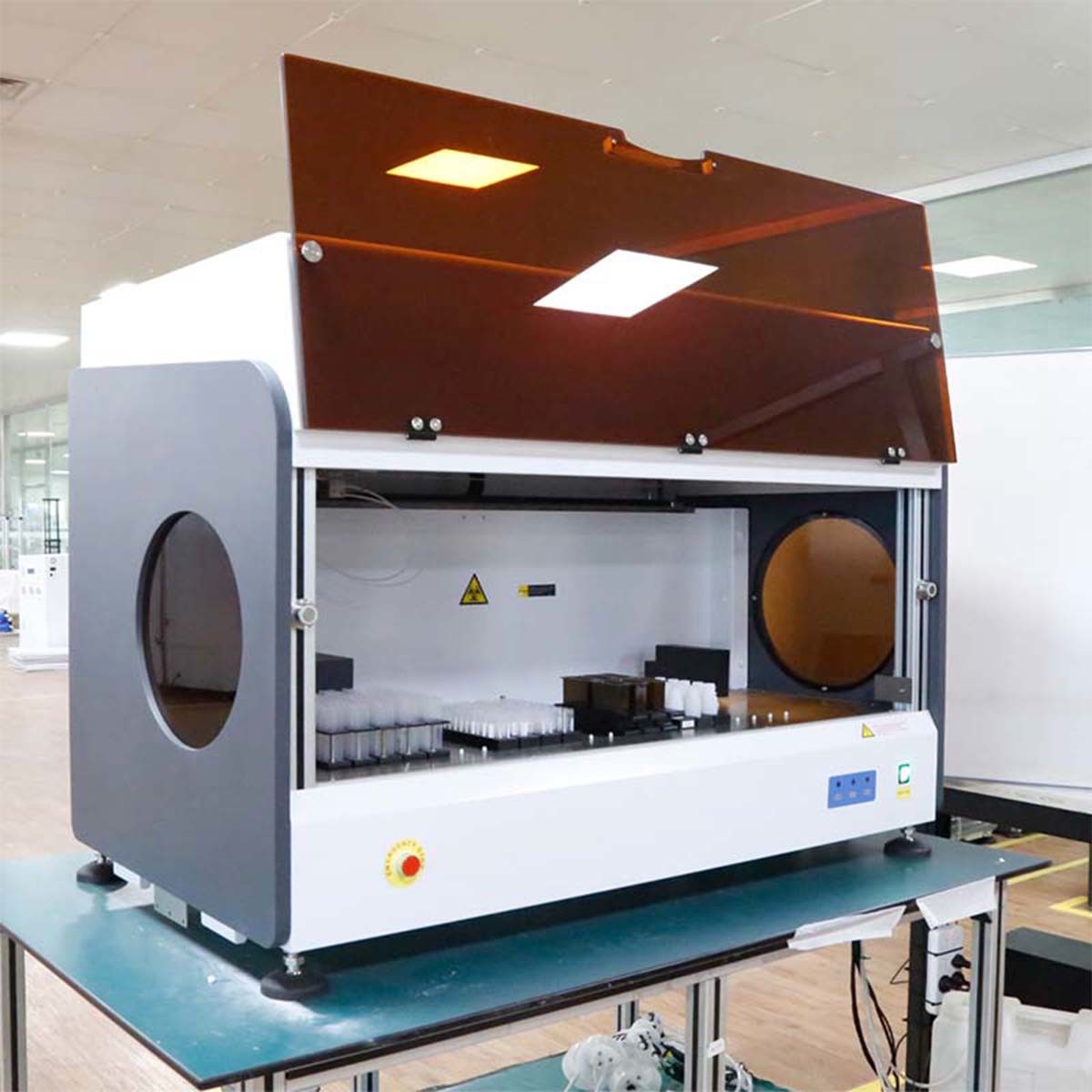

Fully Auto Clinical Lab Instruments ELISA Processor Automated ELISA Analyzer

Sample Unit

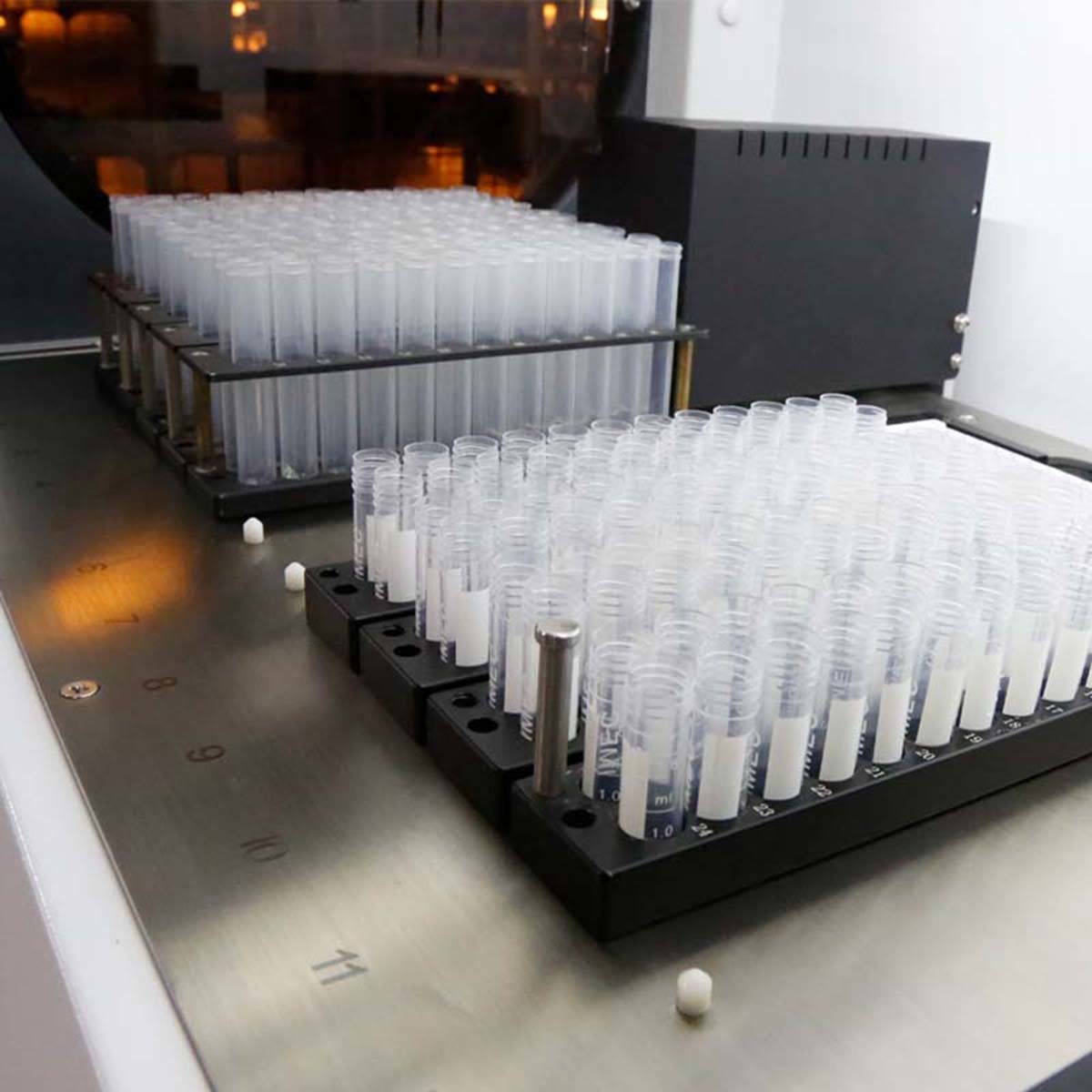

Sample Racks

552 sample positions(tubes 13mm)

Pipetting

8~1000ul

Dispensing system

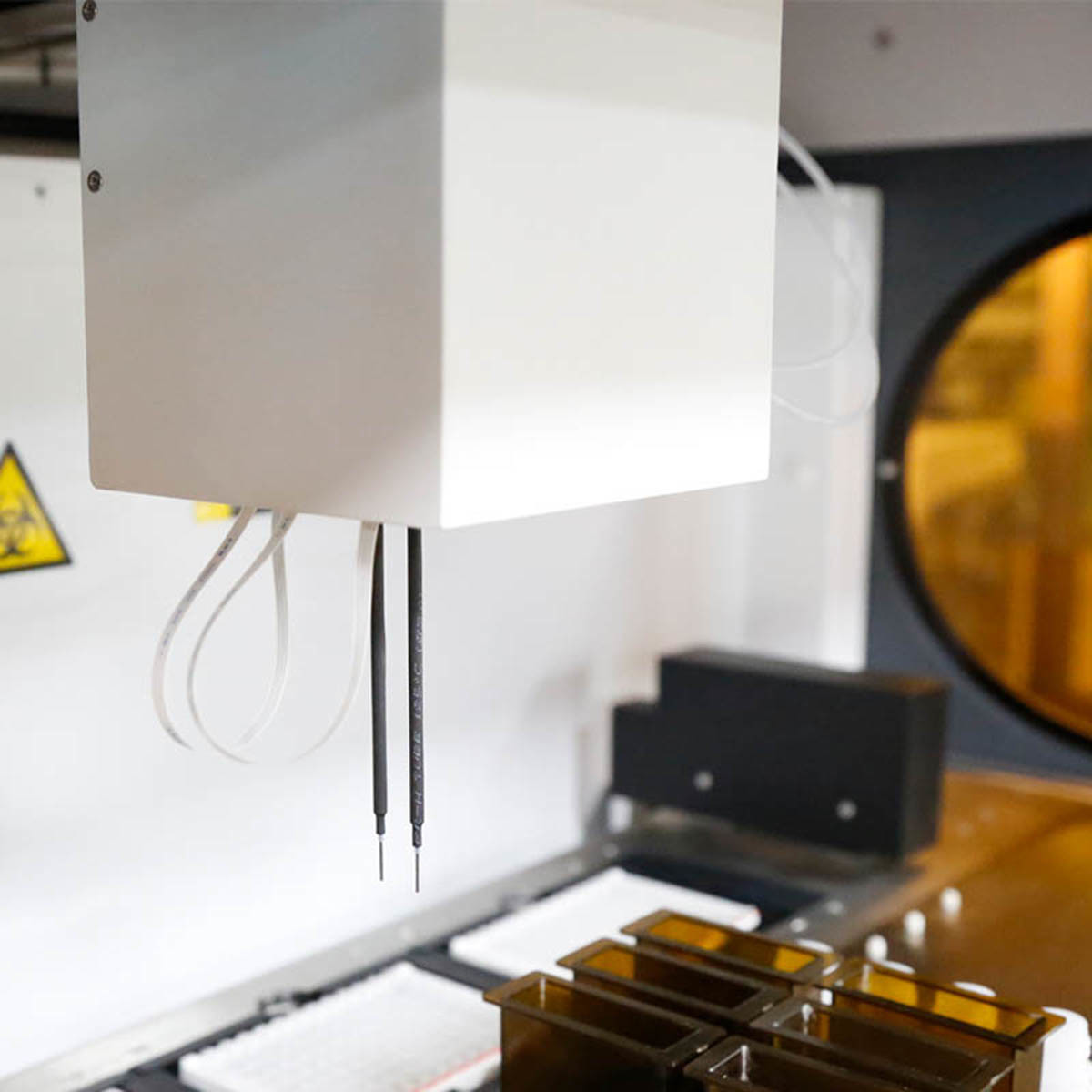

2 aspirating-dispensing probe( X-Y-Z movement)

Reagent Unit

Reagent Position

23 reagent racks, editable

Pipetting Range

8~1000ul, 1ul stepping

Pipetting Precision

(100ul )CV≤0.5%

Washing Unit

Dispensing Time

4 minutes to whole 96 to microplates

Washing Probes

Two line 8-nozzle manifolds

Wash Containers

Cleaning fluid(15L),waste water(25L),Buffer 1(5L), Buffer 2(2L),

 Buffer 3(2L), Buffer 4(2L),

with liquid level-sensing,

 liquid shortage and full alarm

Waste Containers

25L with waste full sensor

Washing Residual

<2μl

Reading Unit

Reading Channels

8 independent photometric channels, mono

anddichromatic reading

Absorbance

0.0~3.0 OD

Spectral Range

400-700nm

Optical Filters

2standard filters (450,630nm); 2 more on request (405nm/450nm/492nm/630nm)

Reading Accuracy

±1% from 0.0~1.5 OD, ±2% from 1.5 to 3.0 OD

Data Management

Software System

Windows 7

LIS System

Bi-direction,support HL7 protocol

Results

Absorbance and results reviewable by software

Printer

External optional

Working Conditions

Power Supply

AC220V±10%,50/60Hz, 110V±10%,60Hz, 400W

Temperature

10~30℃

Humidity

30-80%

Size & Weight

External Size (W*D*H)

1235*710*880mm

Net Weight

146kg

Package Size (W*D*H)

1380*860*1435mm

Gross Weight

220kg
