12.1 inch big screen Multi Parameter patient monitor ICU

Minimum Order Quantity :	1	Price :	USD410-460/PC
Packaging Details :	carton package	Delivery Time :	5-8 days
Payment Terms :	D/A, D/P, T/T, Western Union, MoneyGram,Paypal,Payoneer	Supply Ability :	10000pcs/month

Place of Origin:	CHINA	Brand Name:	KONSUNG
Certification:	CE,ISO13485	Model Number:	Aurora-12 (STANDARD)

Detail Information
Product Name:	Aurora-12 12.1-inch Big Screen Multi Parameter Patient Monitor With Big Font And Drug Calculation Suit For ICU	Warranty:	2 Years
Size:	370370280mm	N/G Weight:	5/6kg
Function:	5 Standard Parameters: ECG, NIBP, SpO2, RESP, Temp	Display:	12.1 Inch LCD Display
High Light:	big screen Multi Parameter patient monitor , Portable icu patient monitor , 12.1 inch Multi Parameter patient monitor

Product Description

Aurora-12 12.1-inch big screen Multi Parameter patient monitor with big font and drug calculation suit for ICU

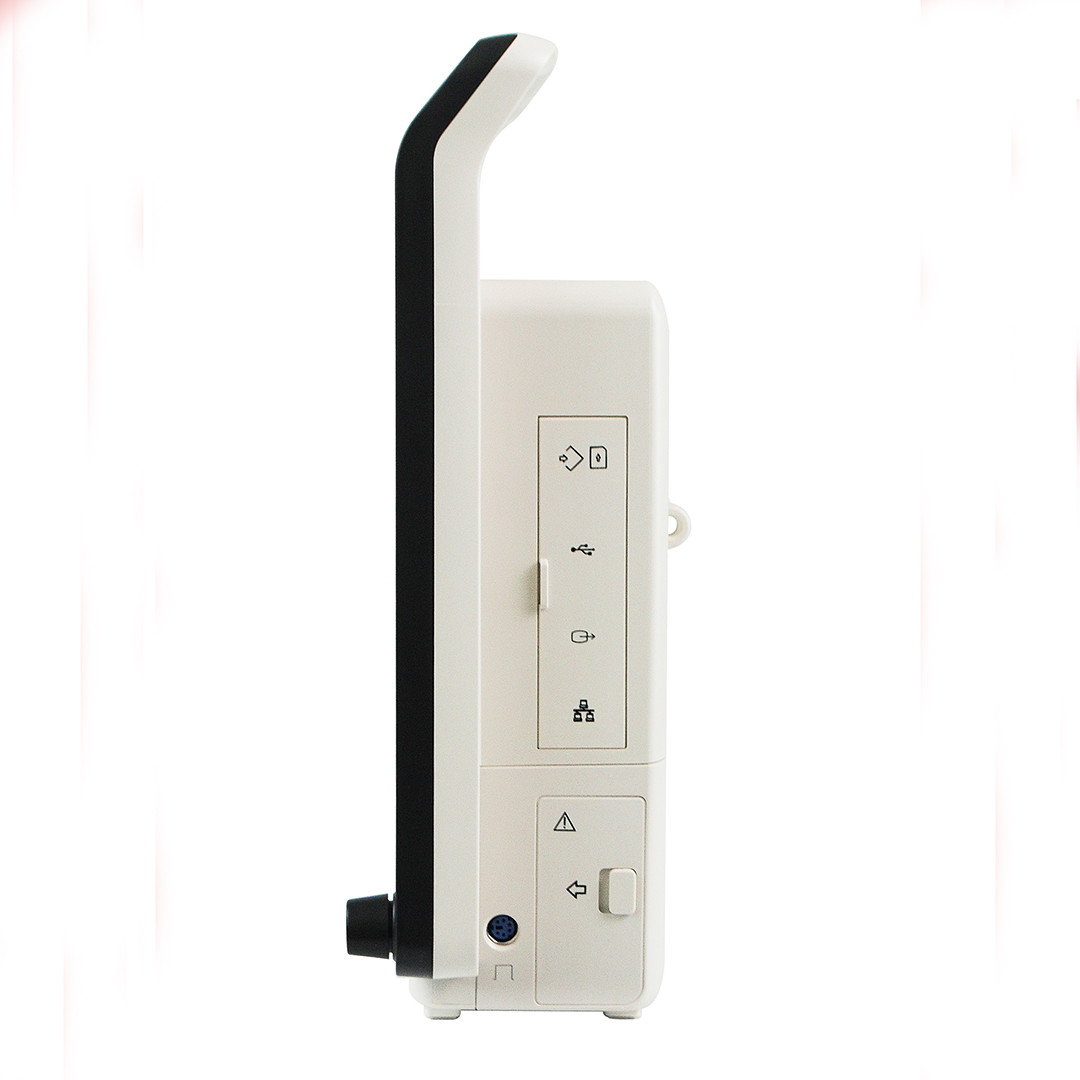

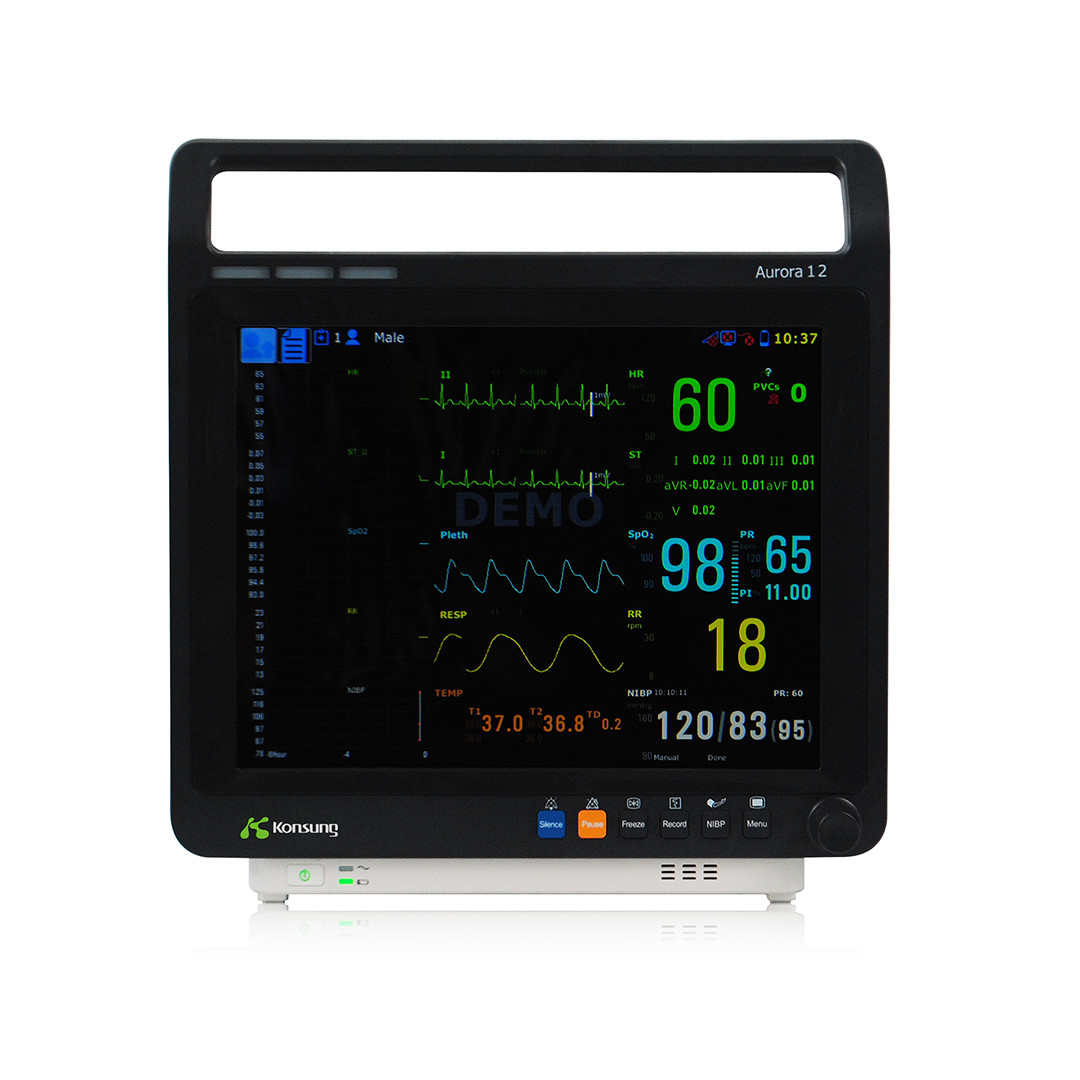

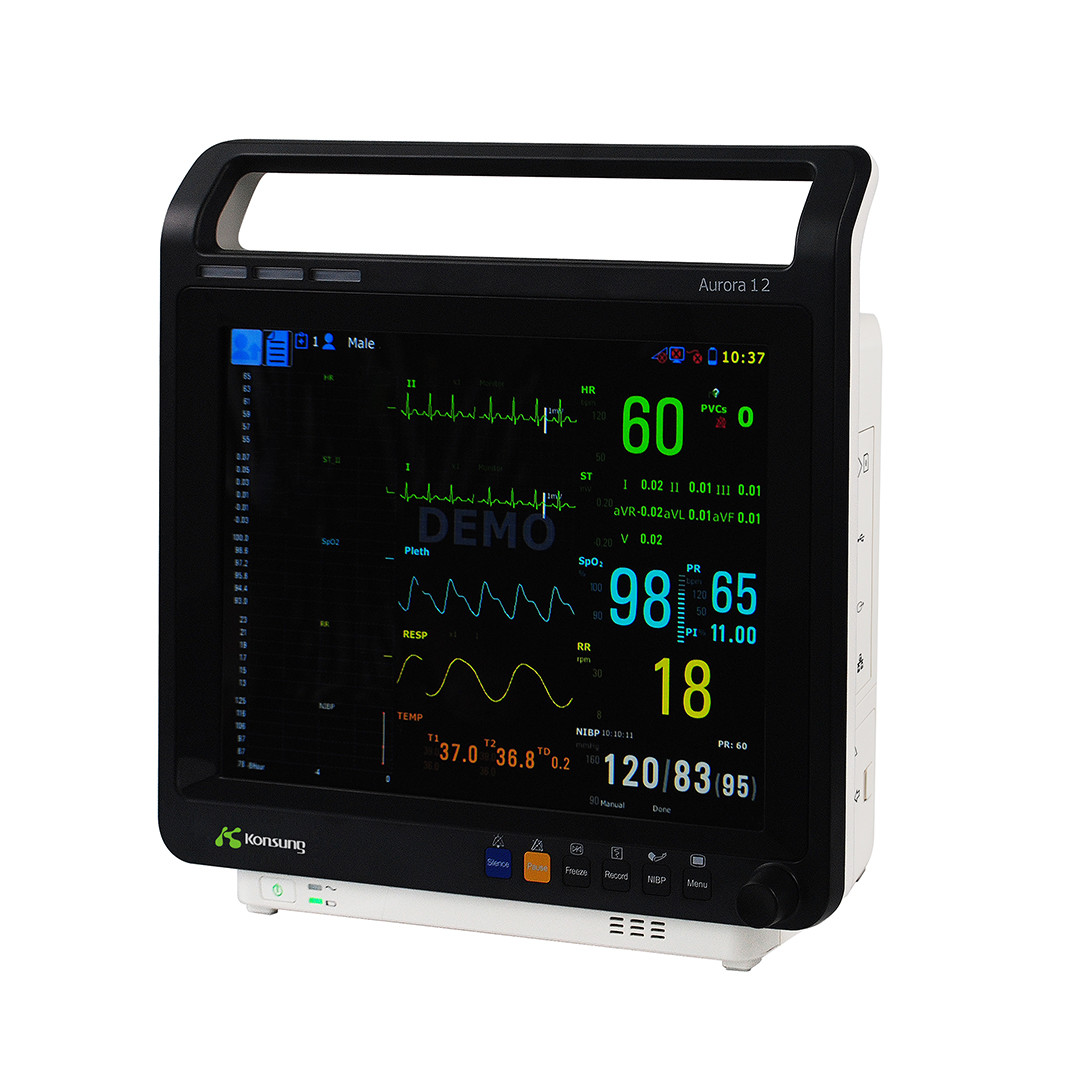

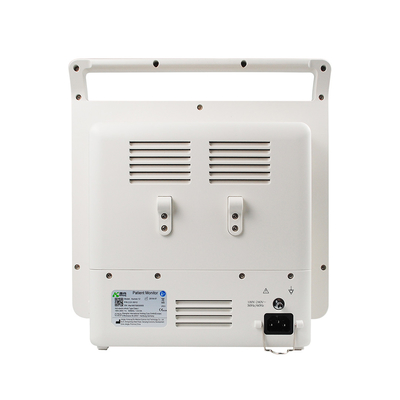

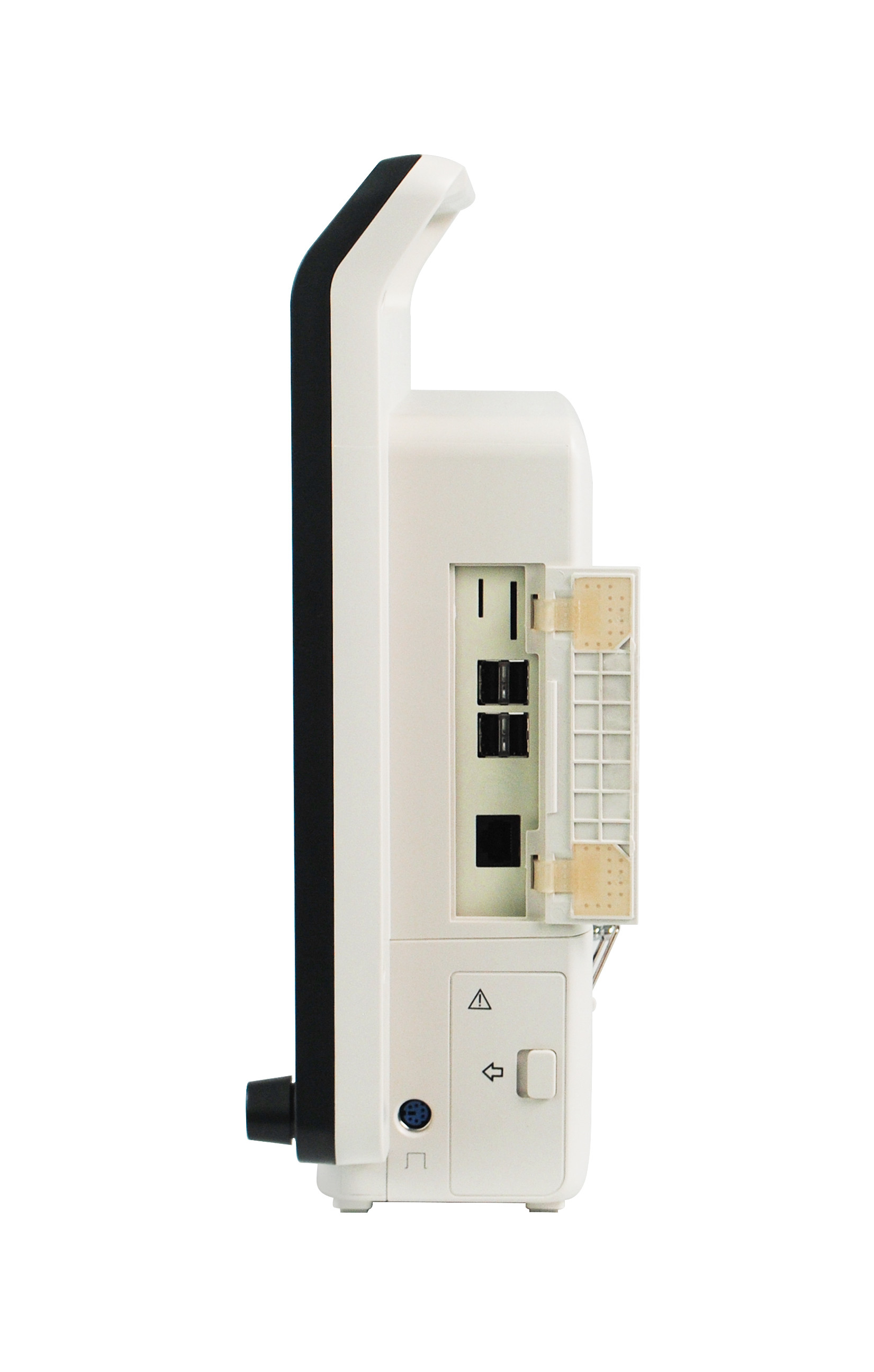

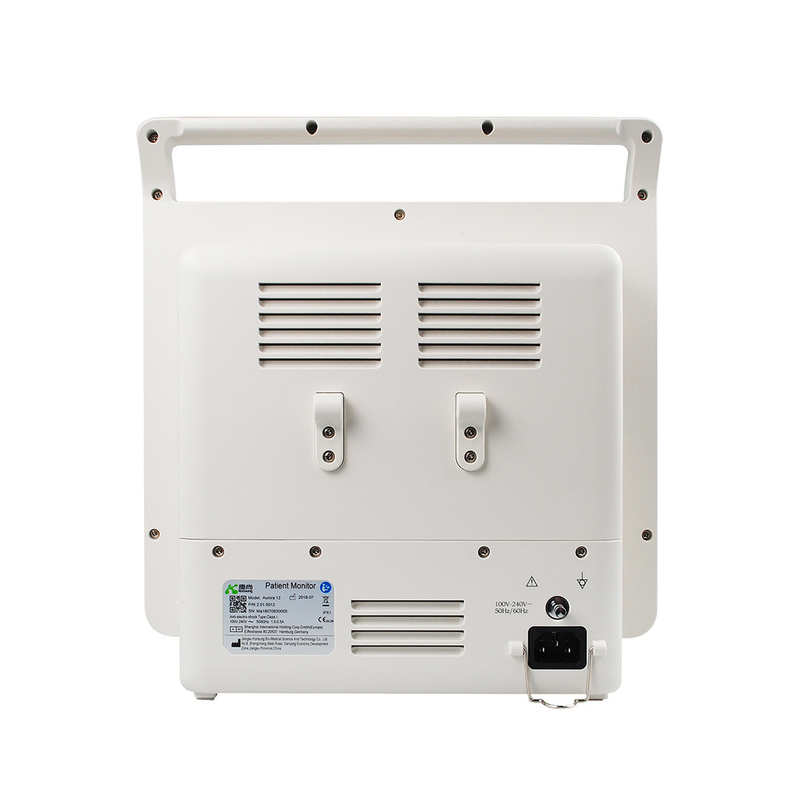

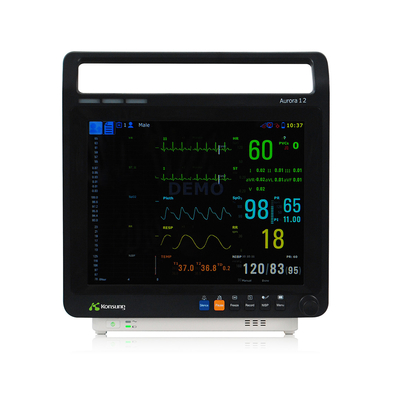

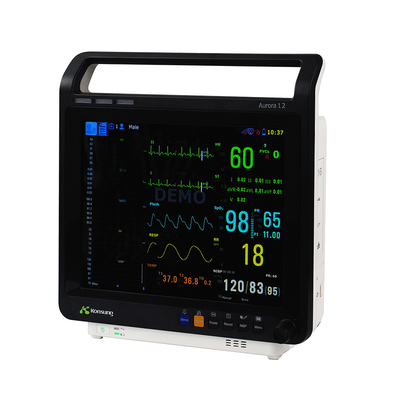

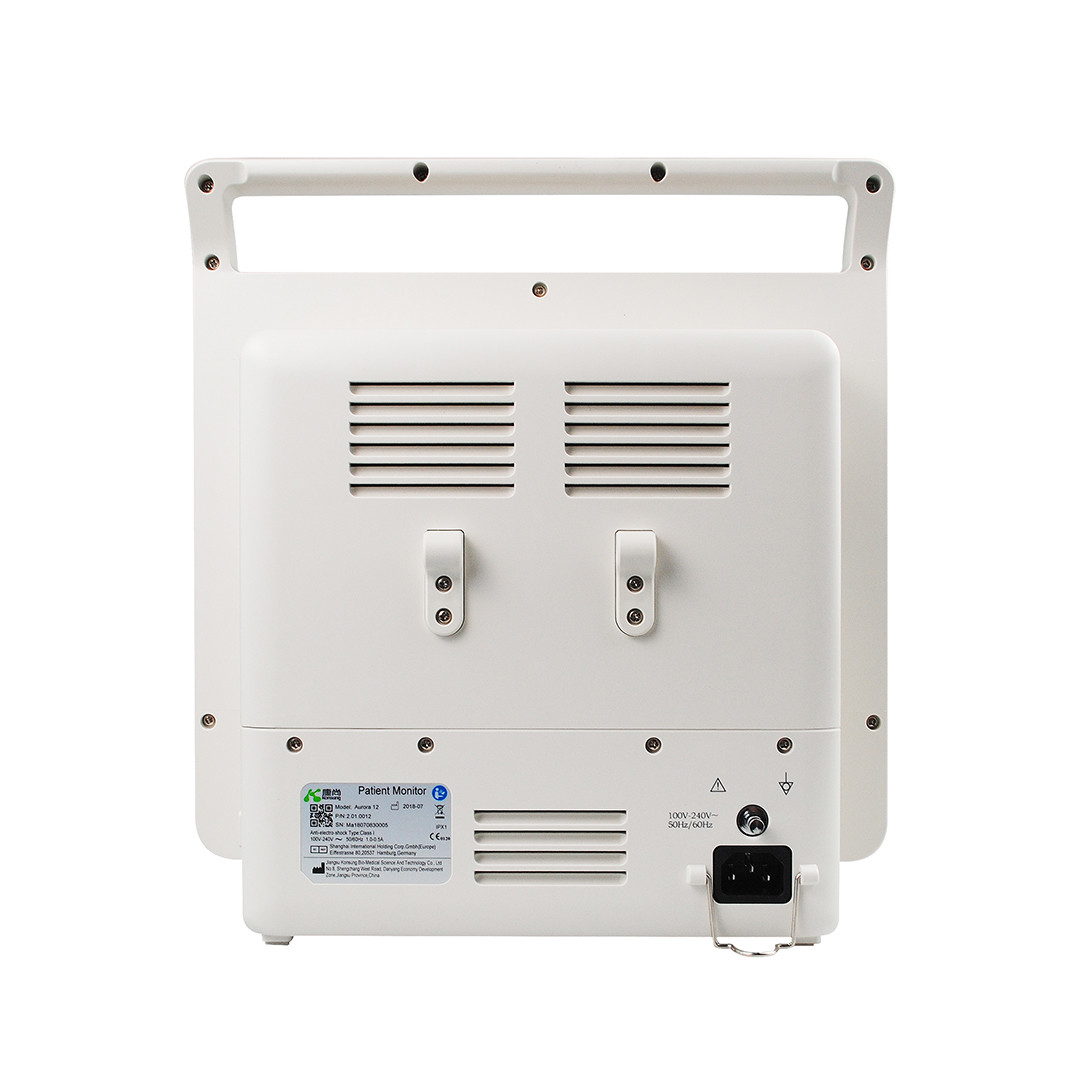

12.1 inch big screen Multi Parameter patient monitor ICU 0

12.1 inch big screen Multi Parameter patient monitor ICU 1

Patient monitor

◆5 Standard parameters: ECG, NIBP, SpO₂, RESP, Temp

◆12.1-inch high resolution industry color TFT LCD display

◆Real time S-T segment analysis, pace-maker detection

Product Detail:

◆Indication of incorrect manipulation and malfunction analysis

◆Patient info input management function

◆Multi-lead ECG waveforms display in phase

◆Large volume of tabular and graphic trends information storage and easy to recall

◆Capture dynamic waveforms

◆Up to 2.5 hours working capacity of built-in rechargeable lithium battery

◆Unique accessory management cabinet

Networking capacity

◆Option: EtCO₂, 5AH Lithium battery, wireless communication module (WIFI, GPRS), touch screen, IBP, AG.

Accessories:

Technique parameters

Standard configuration
Screen
Display Type	12″ color TFT LCD
Resolution	800×600 pixels
Waveforms	Up to 7
ECG
Input	3/5 wire ECG cable
Lead section	I II III aVR, aVL, aVF, V
Gain selection	0.25, 0.5, 1, 1.2
Sweep speed	6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range	15-30bpm
Calibration	±1mv
Accuracy	±1bpm or ±1% (select the bigger data)
NIBP
Test method	Oscillometer
Philosophy	Adult, Pediatric and Neonate
Measurement type	Systolic Diastolic Mean
Measurement parameter	Automatic, Continuous measurement
Measurement method Manual	mmHg or ±2%
SPO₂
Display Type	Waveform, Data
Measurement range	0-100%
Accuracy	±3% (between 70%-100%)
Pulse rate range	20-300bpm
Accuracy	±1bpm or ±2% (select the bigger data)
Resolution	1bpm
2-Temperature (Rectal & Surface)
Number of channels	2 channels
Measurement range	0-50℃
Accuracy	±0.2℃
Display	T1, T2, ☒T
Unit	ºC/ºF selection
Refresh cycle	1s-2s
Respiration (Impedance & Nasal Tube)
Measurement type	0-150rpm
Accuracy	±1bm or ±5%, select the bigger data
Resolution	1rpm
Optional configuration
EtCO₂-Plug & Play
Measurement type	Side stream
Measurement range	0-10.0%; 0-76mmHg
Accuracy	＜5.0%, ±0.28kPa; ±2mmHg
Accuracy	＞5.0%, ±10%
2-IBP (optional)
Measurement range	10～300mmHg
Number of channels	1 or 2 channels
Accuracy	±1mmHg or ±2%, select bigger data
Pressure tag	ART, CVT, RVP, LAP, RAP, PAP, ICP, LVP
12 leads ECG (optional)
Input	3/5/10 wires ECG cable
Lead section	I, II, III aVR, aVL, aVF, V(V1-V6)
Heart rate range	15-380bpm
Calibration	±1mv
