Portable Syringe Hospital Infusion Pump With Drug Library

Name: Portable Syringe Hospital Infusion Pump With Drug Library
Brand: SUCE
SKU: IS01plus
Price: 150.00 USD
Availability: InStock
Rating: 4.8 (183 reviews)

Minimum Order Quantity :	1PC	Price :	$150.00 - $350.00/Units
Packaging Details :	Standard shipping package	Delivery Time :	about 5 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	5000 Unit/Units per Month

Place of Origin:	Guangdong, China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	IS01plus

Detail Information
Power Source:	Electric, AC 100V~240V, 50/60Hz/Internal Rechargeable Li Battery	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	Plastic
Shelf Life:	2 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	None
Name:	Single Channel Syringe Pump	Special Function:	With Drug Library
Mechanical Precision:	Within ±2%	Volume Limit:	0.1ml~9999.9ml
Flow Rate Accuracy:	Within ±3% (after Correct Calibration)	KVO Rate:	1ml/h
IP Classification:	IPX4	Dimension:	280mm210mm130mm
Net Weight:	2.2kg	Port:	Guangzhou
High Light:	Portable Syringe Infusion Pump , Hospital Infusion Pump 100V , Syringe Infusion Pump 60Hz

Product Description

IS01PLUS Single Channel Syringe Pump with Drug Library

IS01plus Serial Syringe Pump is a kind of micro syringe pump with certain rate and constant volume. It implements its injection function through a microprocessor which accurately controls the stepping motor to produce the horizontal movement force through a mechanical transmission device to drive the piston rod of syringe. There are various kinds of sensors in the pump which can accurately control the injection rate of syringe and monitor the injection process. Therefore, it is a kind of high-precision intelligent syringe pump.

Application

IS01plus Serial Syringe Pump is especially suitable for clinical treatment that needs long-time accurate control of injection rate and supervision of injection process. It can be widely applied in traditional intravenous, anesthetic, anticoagulant injection and chemotherapy for patients. It can also be applied in ICU and CCU etc.

Features

* Drug Library.
* Separate operation between the two single channels.
* Three working modes: rate mode, time-volume mode, dosage-weight mode.
* Automatically calibration and compatible with all standard syringes of 10ml~50ml..
* Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.
* Large LCD screen displays working status.
* KVO and Bolus functions.
* Save the last infusion rate automatically when there is unpredicatable switch off.
* Transfer the message between the Nurse-call System and the pumps.

Specification

Applicable Syringe Size	10ml, 20ml,30ml,50/6oml
Rate	5ml: 0.1~100.0ml/h 10ml: 0.1~300ml 20ml: 0.1~600ml 30ml: 0.1~900ml 50/60ml: 0.1~1500ml
Bolus Rate & volume	5ml: 0.1~100ml/h 10ml: 0.1~240ml/h 0.1~5ml 20ml: 0.1~480ml/h 0.1~10ml 30ml: 0.1~720ml/h 0.1~10ml 50/60ml: 0.1~1200ml/h 0.1~10ml
KVO Rate	0.1~5.0ml/h
Injection Accuracy	within ±3%(after calibration)
Occlusion	High: 800mmHg±200mmHg(106.7kPa±26.7kPa) Medium: 500mmHg ±100mmHg (66.7kPa±13.3kPa) Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Alarms	Injection soon finish, end of injection, occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source	AC 100V～240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
Dimension	280mm (L) × 210mm (W) × 130mm (H)
Weight	2.2kg (net weight)

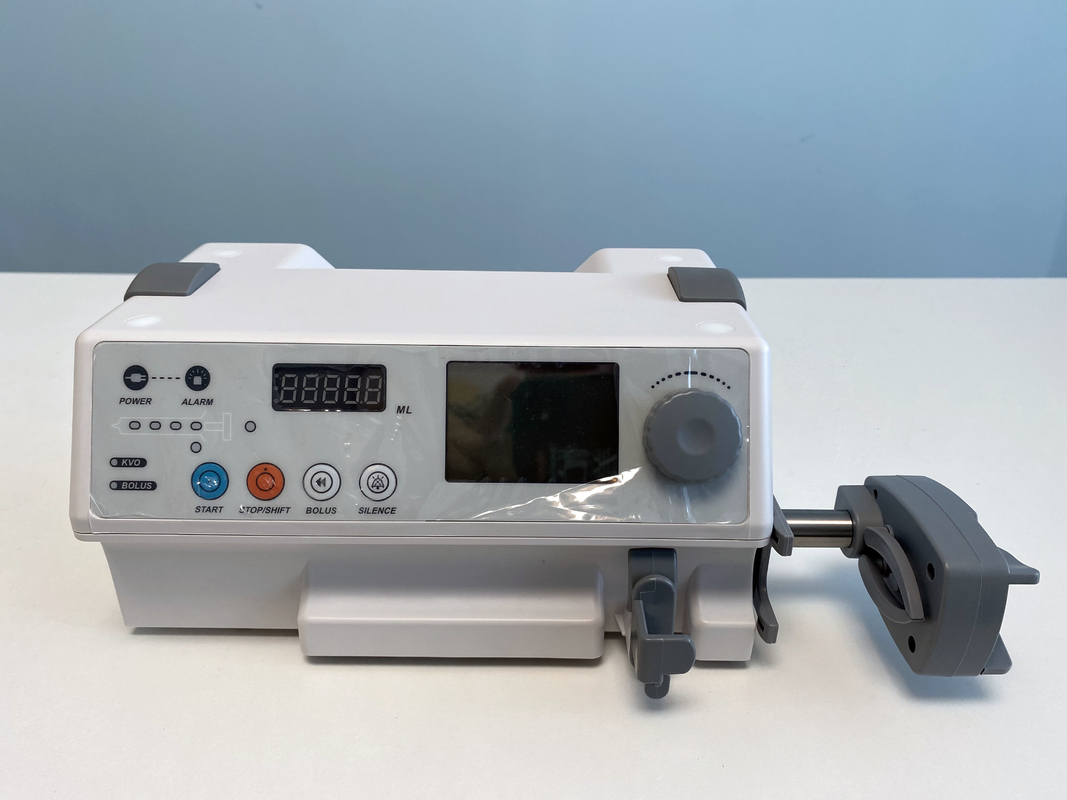

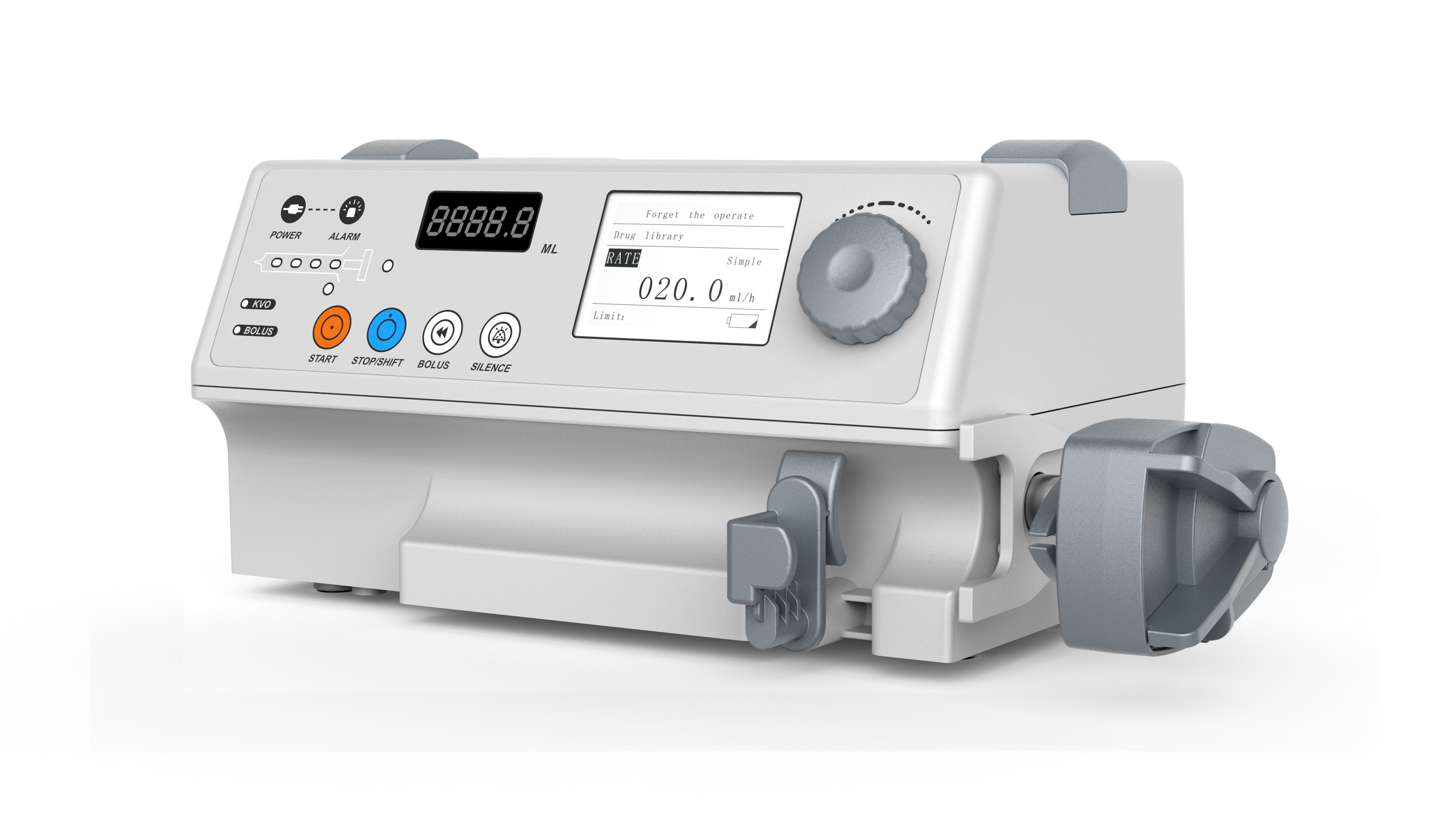

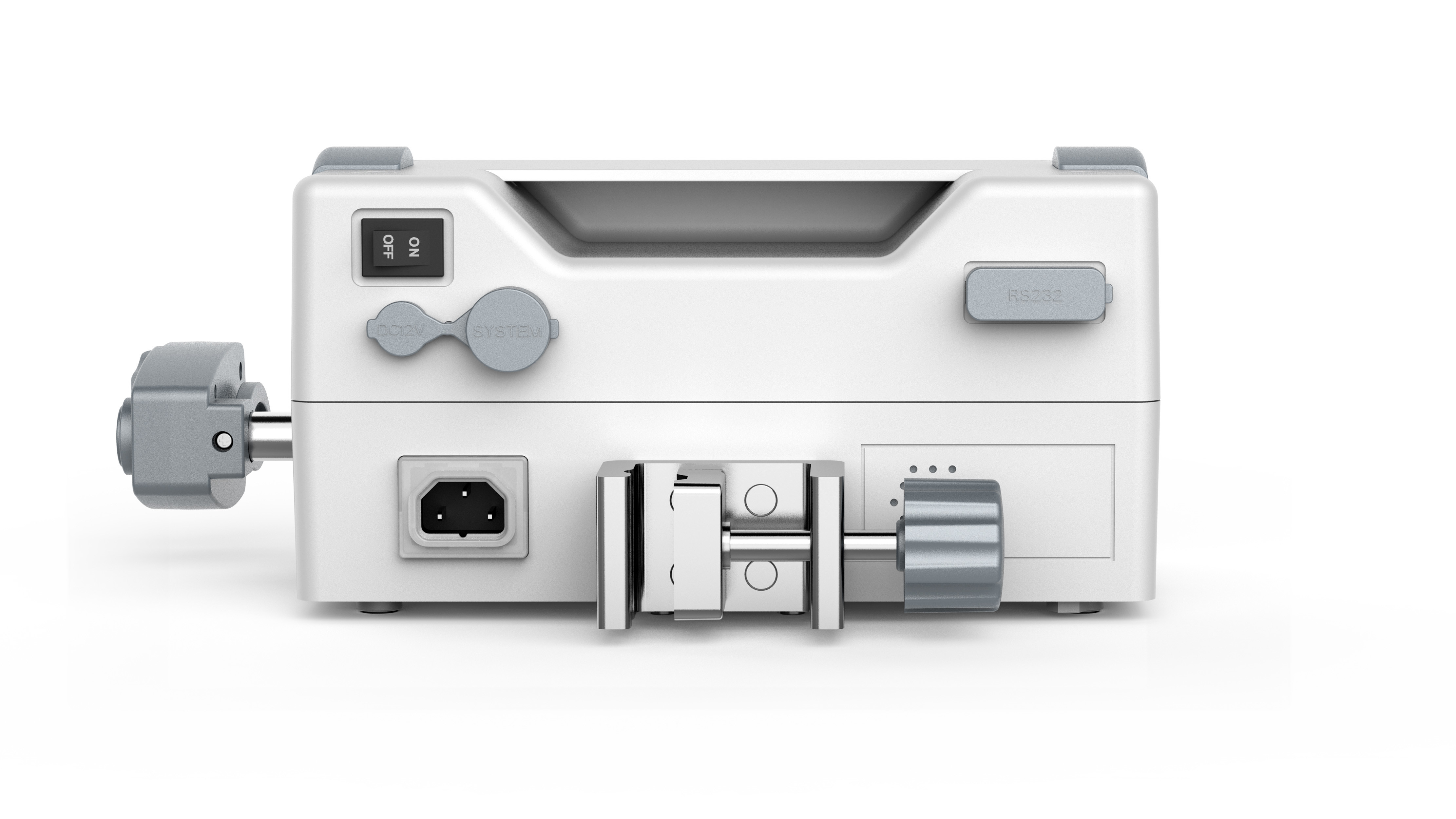

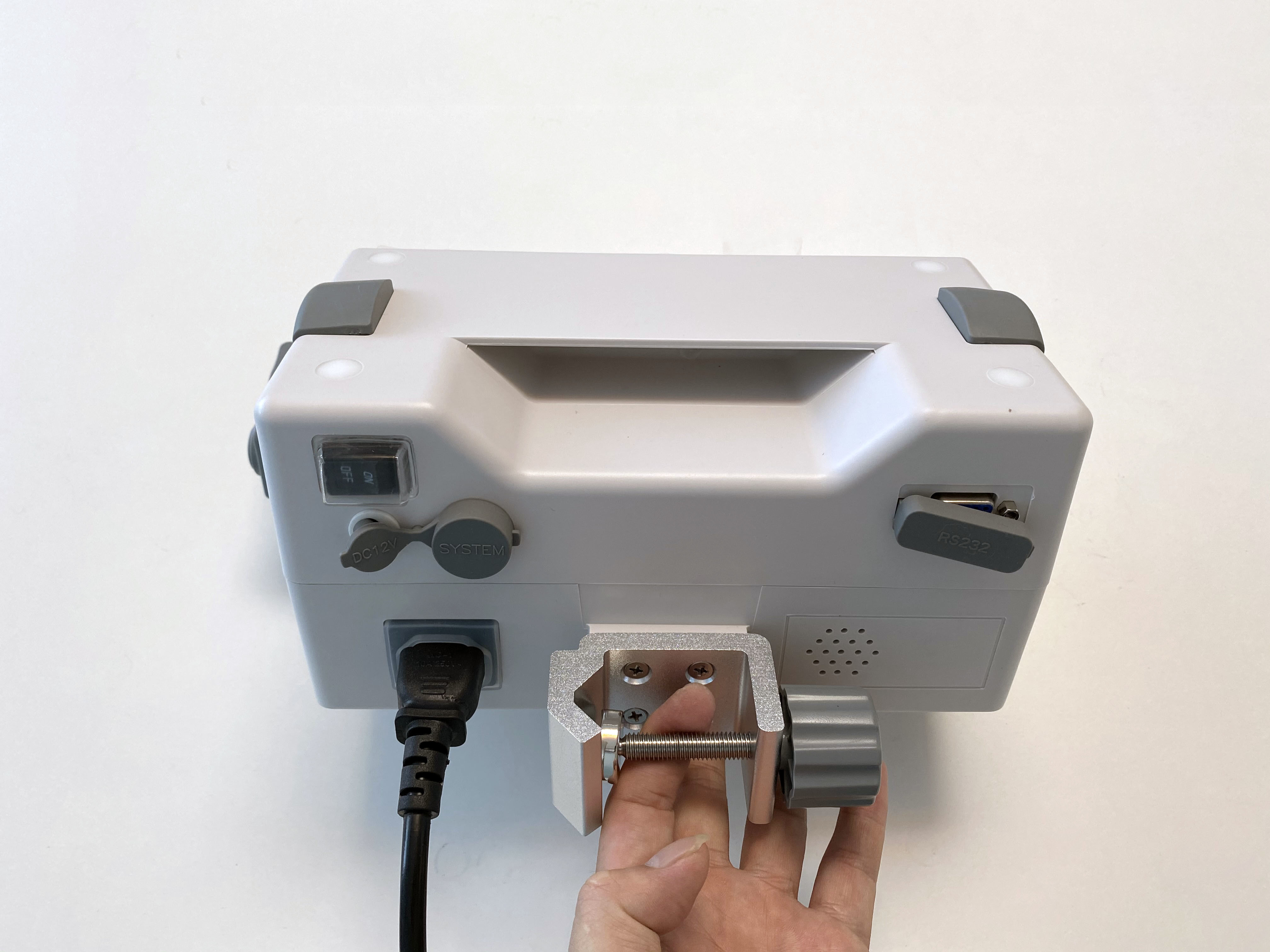

Detail images
