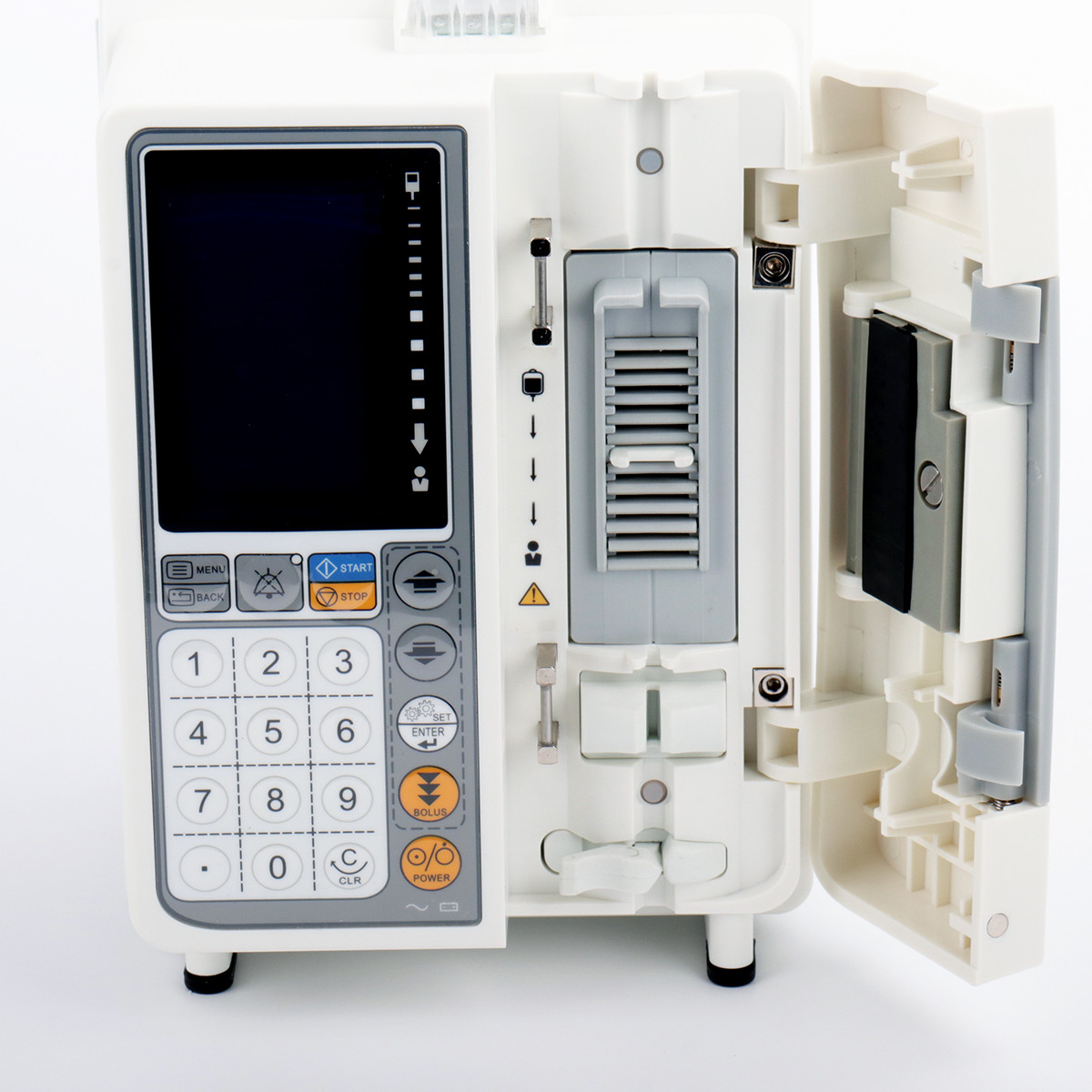

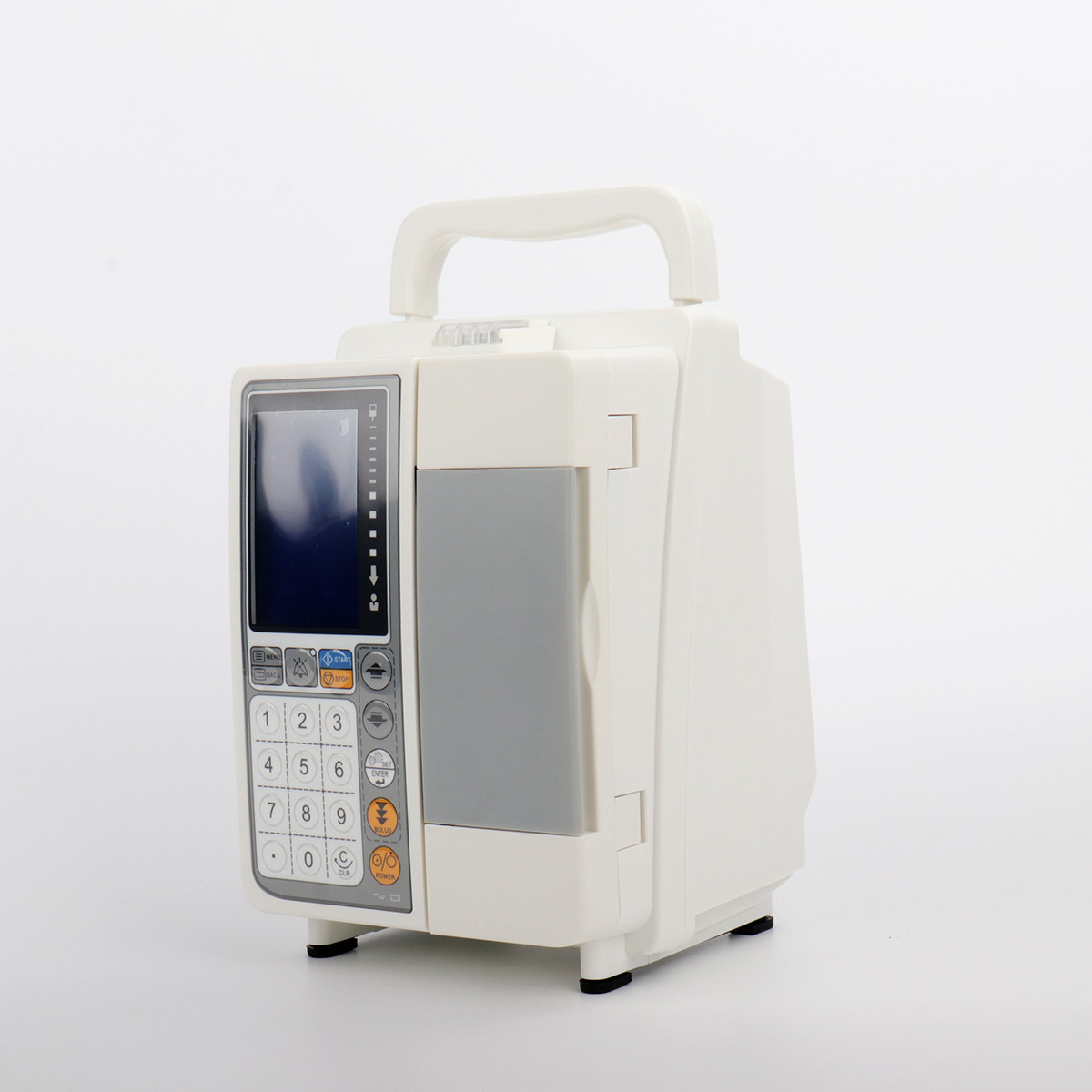

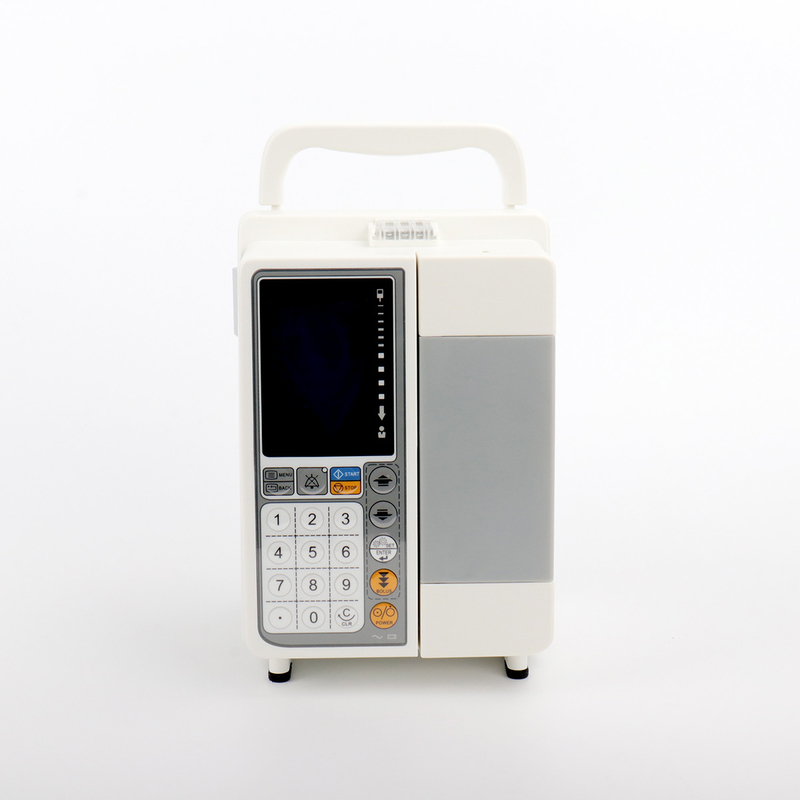

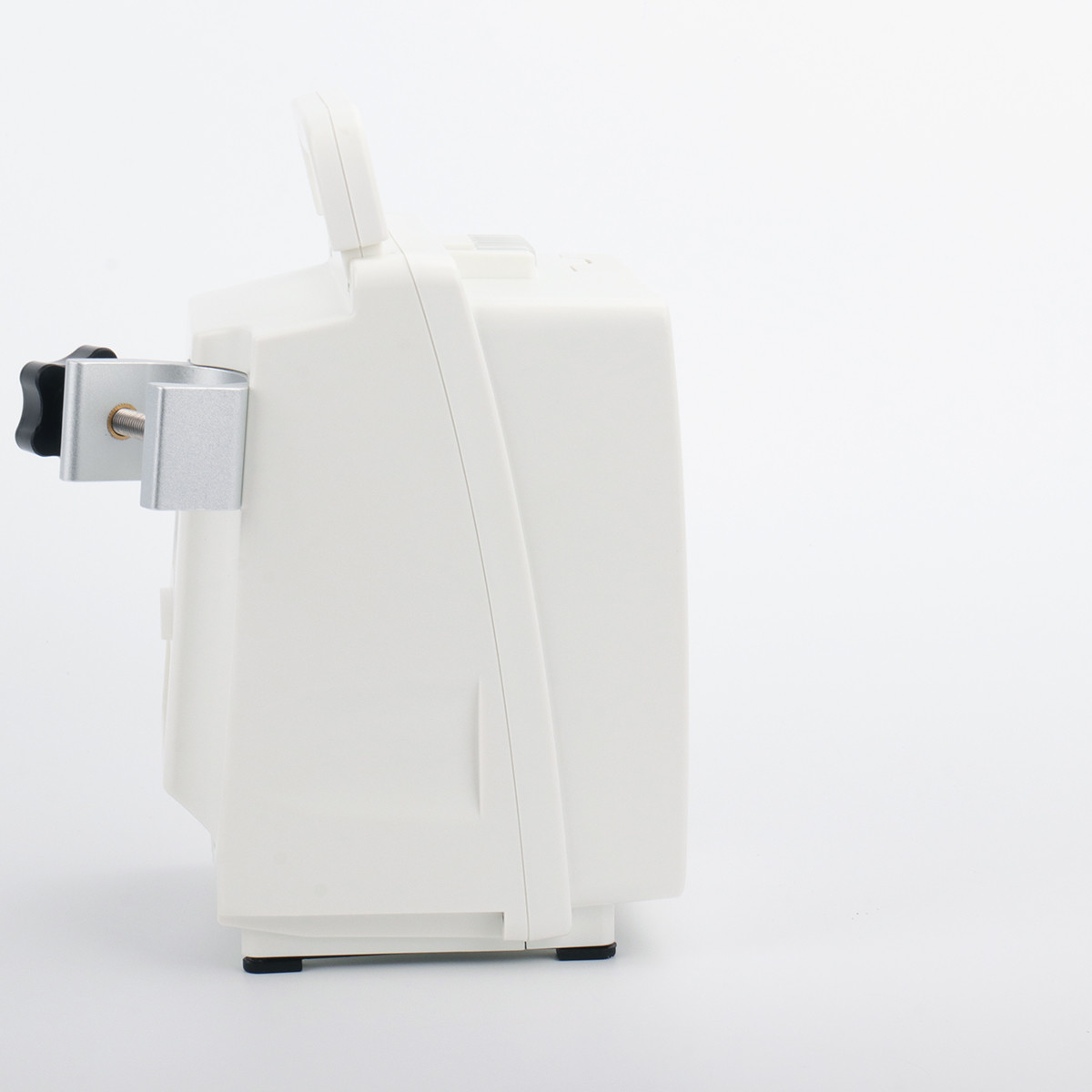

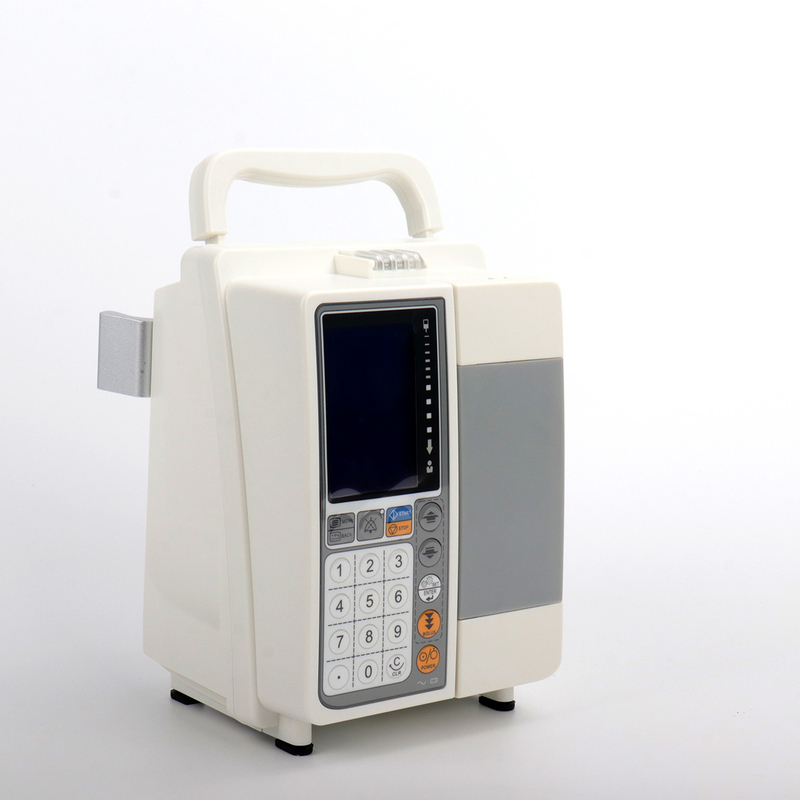

9999ml Volumetric Infusion Pump Curvilinear Peristaltic
Contact Person : JUCCY
Phone Number : 0086-17717698563
WhatsApp : +8617717698563
| Minimum Order Quantity : | 1PC | Price : | $240.00 - $350.00/Sets |
|---|---|---|---|
| Packaging Details : | standard package | Delivery Time : | about 5 days |
| Payment Terms : | T/T, Western Union,Payoneer | Supply Ability : | 5000 Set/Sets per Month |
| Place of Origin: | Guangdong, China | Brand Name: | SUCE |
|---|---|---|---|
| Certification: | CE,ISO13485 | Model Number: | VP03 |
|
Detail Information |
|||
| Power Source: | Electricity | Warranty: | 1 Year |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Material: | Metal, Plastic |
| Shelf Life: | 1years | Quality Certification: | CE |
| Instrument Classification: | Class II | Safety Standard: | GB2626-2006 |
| Product Name: | Infusion Pump Veterinary | Pumping Mechanism: | Curvilinear Peristaltic |
| IV Set: | Compatible With IV Sets Of Any Standard | Flow Rate: | 0.1-1500 Ml/h (in 0.1 Ml/h Increments) |
| Bolus Volume: | 1-20 Ml (in 1 Ml Increments) | VTBI: | 1-9999 Ml |
| Infusion Mode: | Ml/h, Drop/min, Time-based | KVO Rate: | 0.1-5 Ml/h (in 0.1 Ml/h Increments) |
| Battery: | 9.6±1.6 V, Rechargeable | Screen: | 3.2" Brightness LCD |
| Port: | Guangzhou | ||
| High Light: | Double CPU Design Volumetric Infusion Pump,Automatic veterinary infusion pump,20 ml Volumetric Infusion Pump |
||
Product Description
1. Double CPU design, infusion * plus safety!
2. Double blocked pressure sensors, real-time dynamic display of pressure change value!
3. 10 levels of pressure, bubble, and alarm sound are adjustable, which is convenient for use in different environments!
4. All-digital key operation, convenient for medical staff!
5. The battery life exceeds 10 hours!
6. The large LCD screen displays clear and intuitive content.
|
Item
|
Data
|
|
Infusion Mode
|
Volume Mode, Time mode, Drug Mode, Bolus Mode, Drip Mode
|
|
Rate Unit
|
Ml/h, volume/time, d/min
|
|
IV Sets
|
Standard single use IV sets(20 and 60d/ml, with diameter 3.4~4.5mm)
|
|
Flow Rate
|
1.0ml/h~1200ml/h; 1.0d/min~400/min
|
|
Increment
|
1.0-99.9ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h
|
|
Tipping load
|
60kN
|
|
Flow Rate Deviation
|
<±5%(after calibration)
|
|
VTBI
|
0.1~9999ml
|
|
Infused Volume
|
0~999ml
|
|
Time Setting
|
1 min to 99h59min
|
|
Purge Rate
|
600ml/h, displaying purge volume
|
|
KVO
|
0.1ml/h~5.0ml/h, adjustable
|
|
Keypad
|
Numeric Keypad, user friendly
|
|
BOLUS Mode
|
Available for Bolus mode, flow rate adjustable
|
|
Night Mode
|
Night mode, No operation for 5mins, LCD brightness lower automatically
|
|
Occlusion Pressure Detection
|
Upstream and downstream pressure detection, detection range: 40-130Kpa, 0~9 levels adjustable, dynamic pressure value display
|
|
Air bubble Detection
|
Ultrasonic detection, ≥50μL , Single bubble volume: 50~300μL , 0~9 levels adjustable
|
|
Alarm &Volume
|
0~9 levels adjustable
|
|
Anti-reverse Function
|
Anti-reverse function on motor to prevent upstream
|
|
IV Set Management
|
Open System, Can accept all kinds of IV Set after calibration
|
|
Self-Testing
|
Self-Testing when start up and during infusing
|
