9999ml Volumetric Infusion Pump Curvilinear Peristaltic
Contact Person : JUCCY
Phone Number : 0086-17717698563
WhatsApp : +8617717698563
| Minimum Order Quantity : | 1PC | Price : | $499.00 - $599.00/Sets |
|---|---|---|---|
| Packaging Details : | standard package | Delivery Time : | about 5 days |
| Payment Terms : | T/T, Western Union,Payoneer | Supply Ability : | 5000 Set/Sets per Month |
| Place of Origin: | Guangdong, China | Brand Name: | SUCE |
|---|---|---|---|
| Certification: | CE,ISO13485 | Model Number: | IS50 |
|
Detail Information |
|||
| Power Source: | Electricity, AC 100V~240V, 50/60Hz | Warranty: | 1 Year |
|---|---|---|---|
| After-sale Service: | Onsite Training | Material: | Plastic |
| Shelf Life: | 1years | Quality Certification: | Ce |
| Instrument Classification: | Class II | Safety Standard: | GB/T18830-2009 |
| Product Name: | Double Channel Syringe Pump | Special Function: | With Drug Library |
| Volume Limit: | 0.1ml~9999.9ml | Flow Rate Accuracy: | Within ±3% (after Correct Calibration) |
| Mechanical Precision: | Within ±2% | Total Injection Volume: | 0.1ml~9999.9ml (0.1ml Step) |
| KVO Rate: | 1ml/h | Fuse: | F1AL/250/60V, 2pcs Inside |
| IP Classification: | IPX4 | Port: | Guangzhou |
| High Light: | Automated dual channel infusion pump,single channel infusion pump,dual channel infusion pump Tci Standard |
||
Product Description

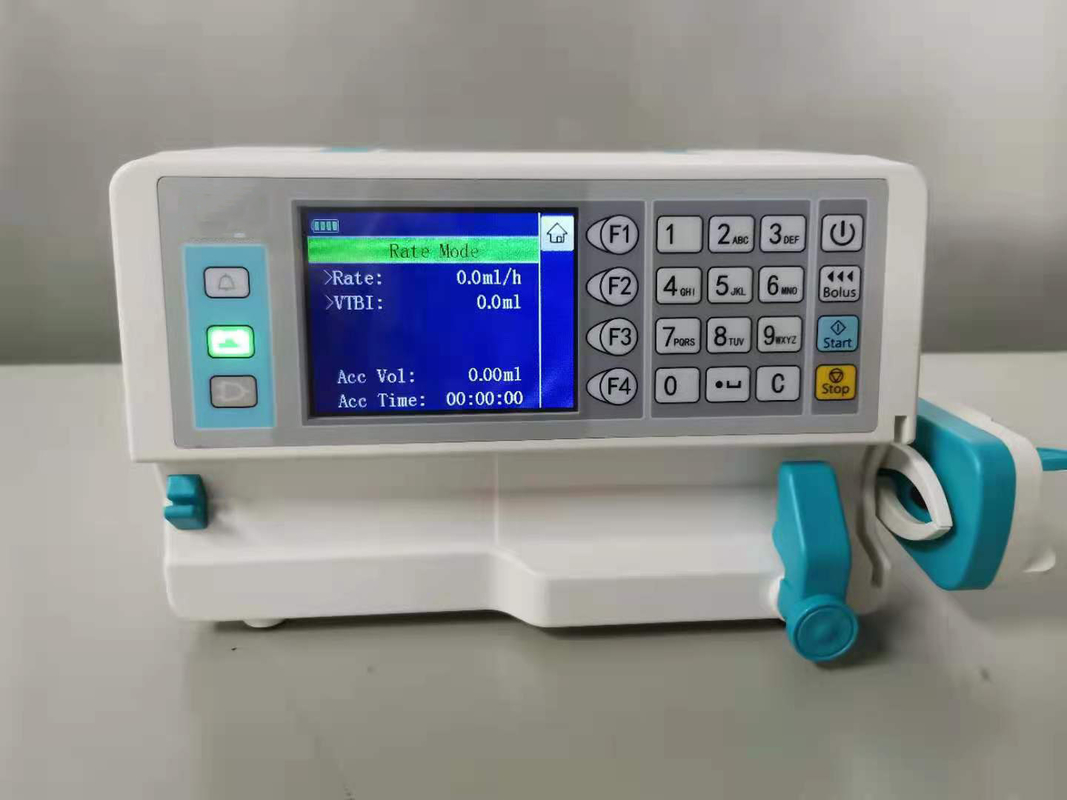

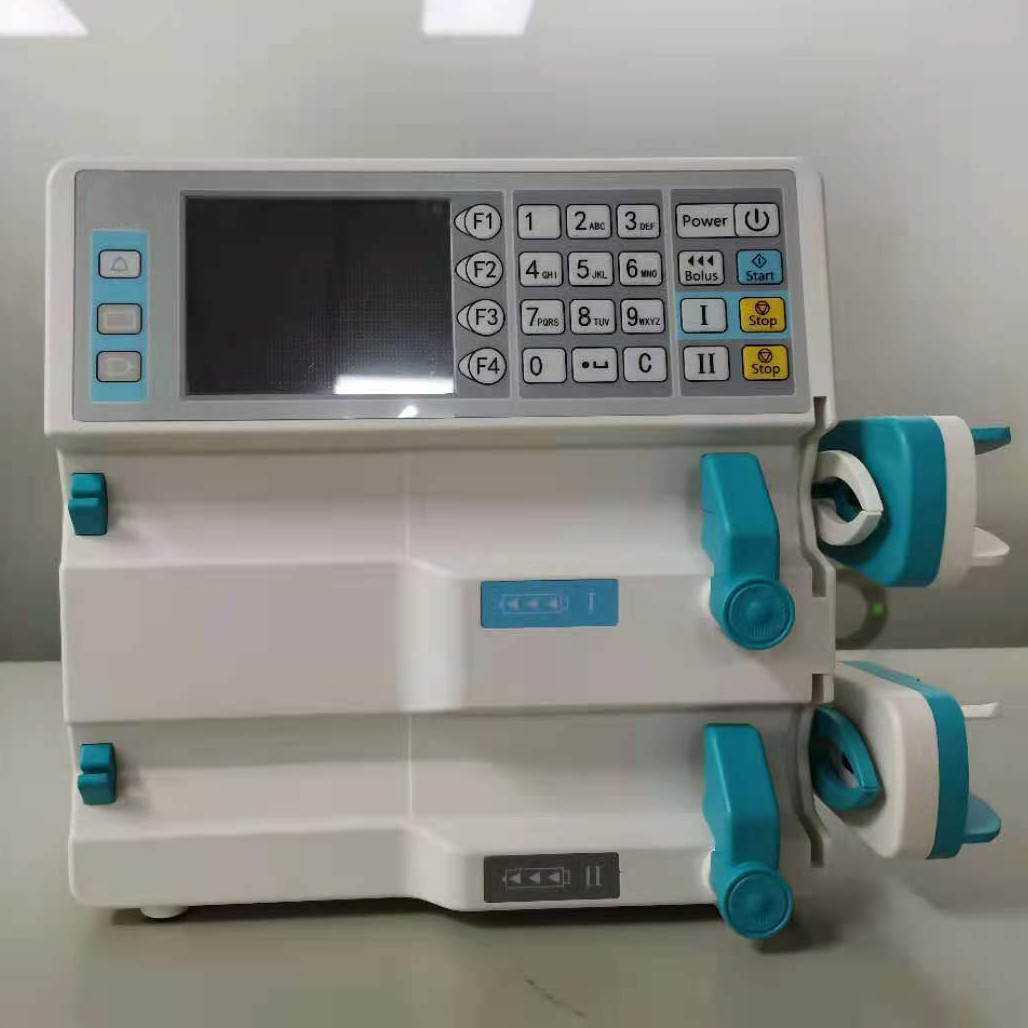

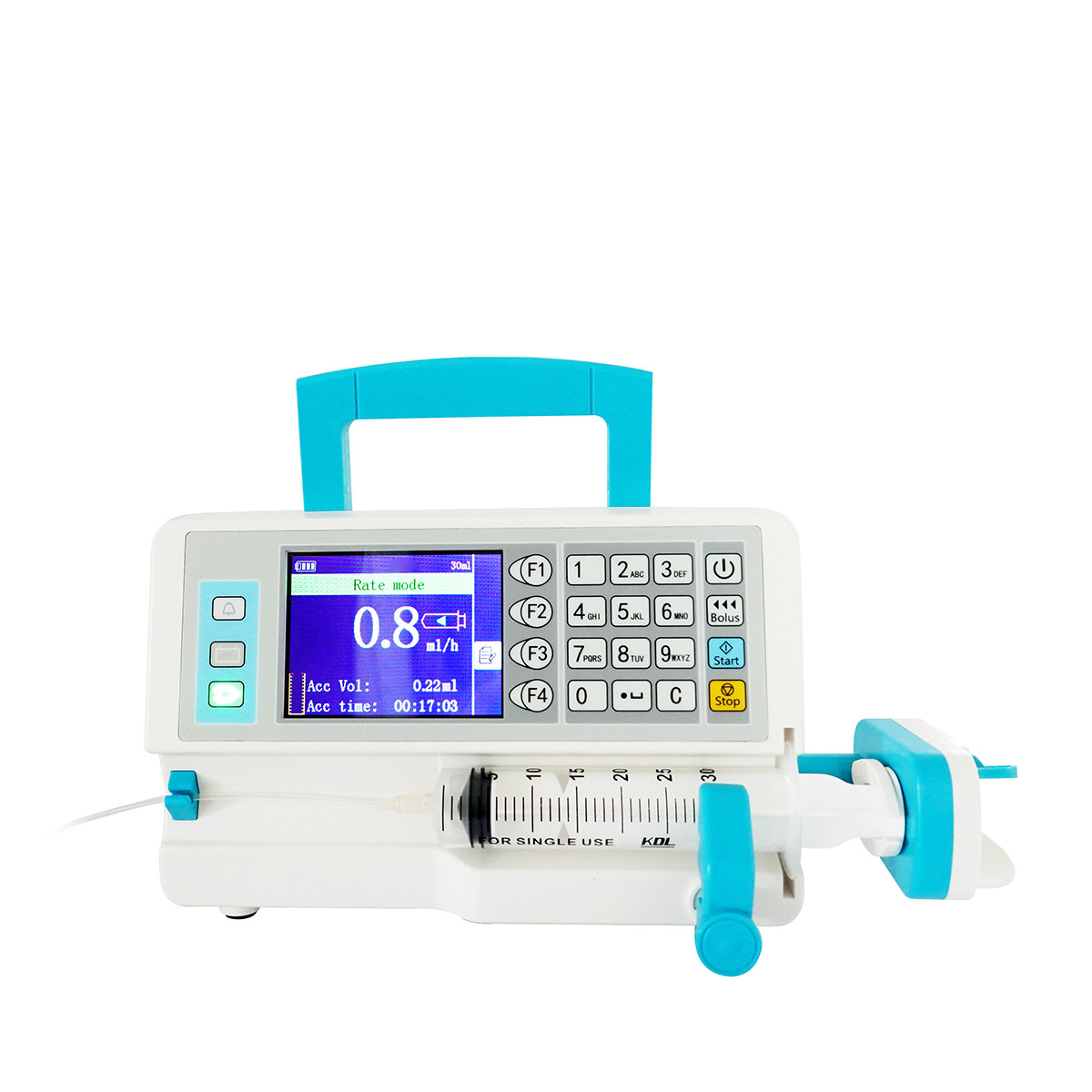

Automated single channel Double channel infusion pump tci standard with drug library IS50
|
Special function
|
With drug library
|
|
Rate:
|
50/60ml Syringe: 0.1ml/h～999.9ml/h (0.1ml/h step)
1,000ml/h～1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h～900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h～600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h～300.0ml/h (0.1ml/h step) |
|
Flow Rate Accuracy:
|
Within ±3% (after correct calibration)
|
|
Mechanical precision:
|
Within ±2%
|
|
Bolus Rate:
|
50/60ml Syringe: 1,200ml/h
30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h |
|
Purge Rate:
|
50/60ml Syringe: 1,500ml/h
30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h |
|
Volume Limit:
|
0.1ml～999.9ml
|
|
Total Injection
Volume: |
0.1ml～9999.9ml (0.1ml step)
|
|
Occlusion:
|
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa
Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) |
|
Alarms:
|
Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose
etc. |
|
Power Source:
|
AC 100V～240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
|
|
KVO rate:
|
1ml/h
|
|
Fuse:
|
F1AL/250/60V, 2pcs inside
|
|
Power Consumption:
|
30VA
|
|
IP Classification:
|
IPX1
|
|
Equipment Classification:
|
Class II, internal power supply, Type BF
|
|
Operating Condition:
|
Ambient temperature: +5℃～+40℃;
|
|
Relative humidity:
|
20～90%
|
|
Transport & Storage Condition:
|
Ambient temperature: -30℃～+55℃
|
|
Relative humidity:
|
≤95%
|
|
Dimension:
|
280mm (L) × 210mm (W) × 130mm (H)
|
|
Weight:
|
2.2kg (net weight)
|
Drug Library.
Separate operation between the two single channels.
Three working modes: rate mode, time-volume mode, dosage-weight mode.
Automatically calibration and compatible with all standard syringes of 10ml~50ml..
Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of
clinical applications.
Large LCD screen displays working status.
KVO and Bolus functions.
Save the last infusion rate automatically when there is unpredicatable switch off.
Transfer the message between the Nurse-call System and the pumps.
