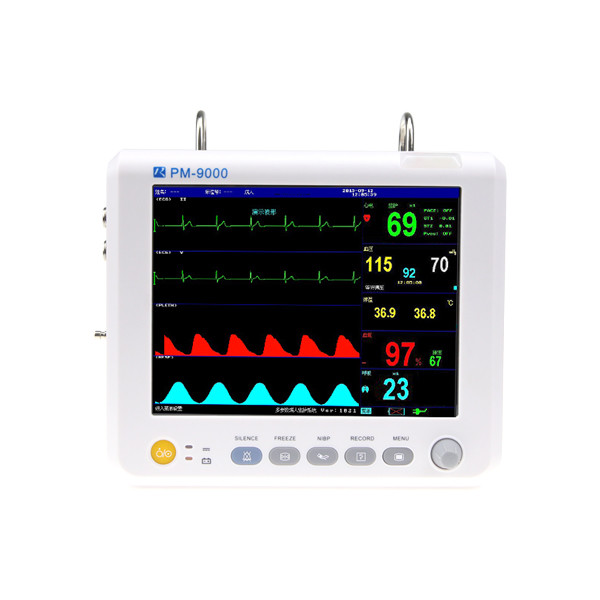

Portable 8 Inch Multi Parameter Patient Monitor Vehicle

Product Description

Portable 8 inch vehicle multi - parameter monitor

Details:



1. New high-precision module, new digital oxygen technology, more comprehensive measurement, more accurate.



2. High brightness high resolution 8 inch color TFT liquid crystal display, exquisite design, weight only 1.3kg.



3. With ST segment automatic detection, arrhythmia analysis, drug concentration drop table analysis.



4. Full-parameter trend chart data, ecg waveform storage and playback, power failure saving function.



5. Rotating shuttle operation mode, Chinese and English logo button, easy to learn, easy to operate, simple and intuitive.



6. Coexistence of standard, large font, full lead and trend chart is convenient for multi-angle remote viewing.



7. Built-in removable lithium battery, AC/DC dual-use, lightweight, energy saving and environmental protection.



8. Suitable for adults, children and newborns; It is suitable for bedside monitoring, ICU/CCU, operating room, emergency center, home monitoring, etc.



9. Optional four vehicle-mounted devices: suitable for all kinds of transport vehicle-mounted mobile environment.







Standard configuration: 1 PM-9000 8-inch vehicle monitor host, one built-in rechargeable lithium battery, one standard five-lead heart lead connection cable, one standard adult blood pressure cuff, one blood oxygen probe, one temperature probe, one power plug cable, one operating manual, one set of three certificates.







Technical parameters:



ECG ECG



Lead selection: full lead, ⅰ, ⅱ, ⅲ, aVF, aVR, aVL, V1 -- 6 chest lead display



Gain selection: ×1, ×2, ×0.25, ×0.5 four grades



Frequency: 0.5 Hz - 100 Hz



Common mode signal rejection: greater than 70dB



Scanning speed: 12.5mm/s, 25mm/s, 50mm/s three standard files



Accuracy of heart rate: ±5 beats/min



Calibration signal: 1mV (peak value, accuracy ±3%)



ST segment detection: Measurement range (-2.0mV -- +2.0mV)



Use standard: comply with ANSI/AMI EC13-2002 standard



Response time: 1S



Alarm mode: sound and light alarm



Preset range of heart rate alarm :(alarm over preset value)



The upper limit can be adjusted from 1 to 255 times/min



The lower limit can be adjusted from 0 to 254 times/min







NIBP blood pressure



Technique: oscillographic method



Measurement method: Reverse measurement data is more accurate



Measurement unit: mmHg/Kpa



Overvoltage protection: double safety protection



Measurement time: less than 45S



Cuff pressure range: 0-250mmHg



Accuracy of blood pressure measurement: mean error and standard deviation values specified in ANSI/AAMI SP10-2002



Initial charge of cuff: 180mmHg (120mmHg for children)



Cuff follow-up inflation: original systolic +30mmHg



Blood pressure measurement range and error:



Systolic pressure 60 mmHg to 250 mmHg



The average pressure is 45 mmHg to 235 mmHg



Diastolic pressure 40 mmHg to 220 mmHg



Blood pressure measurement error: ± 1.1kpa (±8mmHg) or ±10% whichever is greater



Response time: 1S



Alarm mode: sound and light alarm



Alarm prediction range and error :(alarm over preset value)



The upper systolic blood pressure ranges from 1mmHg to 255 mmHg



The lower limit ranges from 0 mmHg to 254 mmHg



The upper diastolic blood pressure ranges from 1mmHg to 255 mmHg



The lower limit ranges from 0 mmHg to 254 mmHg



Alarm error: ±1 mmHg



Standard: comply with ANSI/AAMI SP10-2002 standard







SPO2 oxygen saturation



Scope: 0-100%



Accuracy: 1%



Resolution: 1%



Pulse rate: 20-250 beats/min



Response time: 1S



Alarm mode: sound and light alarm



Alarm range and error :(alarm over preset value)



The upper limit is 1% to 100%



The lower limit ranges from 0% to 99%





TEMP temperature



Technology: high sensitivity thermistor probe



Temperature measurement range: 20℃-- 45℃



Resolution: 0.1%



Temperature accuracy: ±1℃



Response time: 1S



Alarm mode: sound and light alarm



Preset alarm range and error :(alarm over preset value)



The upper limit is adjustable between 20.1℃ and 45.5℃



The lower limit can be adjusted between 20℃ and 45.4℃



Alarm error: ±1℃







Breathe RESP



Respiratory rate range: 0-60 breaths/min



Accuracy: + / - 1 RPM



Response time: 1S



Gain selection: ×1, ×2, ×0.5, ×0.25 four grades



Alarm mode: sound and light alarm



Preset alarm range and error :(alarm over preset value)



The upper limit is adjustable between 10-100 beats/min



The upper limit is adjustable between 0 and 99 beats/min



Alarm error: ±1rpm









System



Display: 8 inch TFT true color LCD screen



Battery (optional) : LeadAcid fully sealed and maintenance-free battery



Safety standard: LEC601-1 (INTERNATIONAL GB9706.1)
