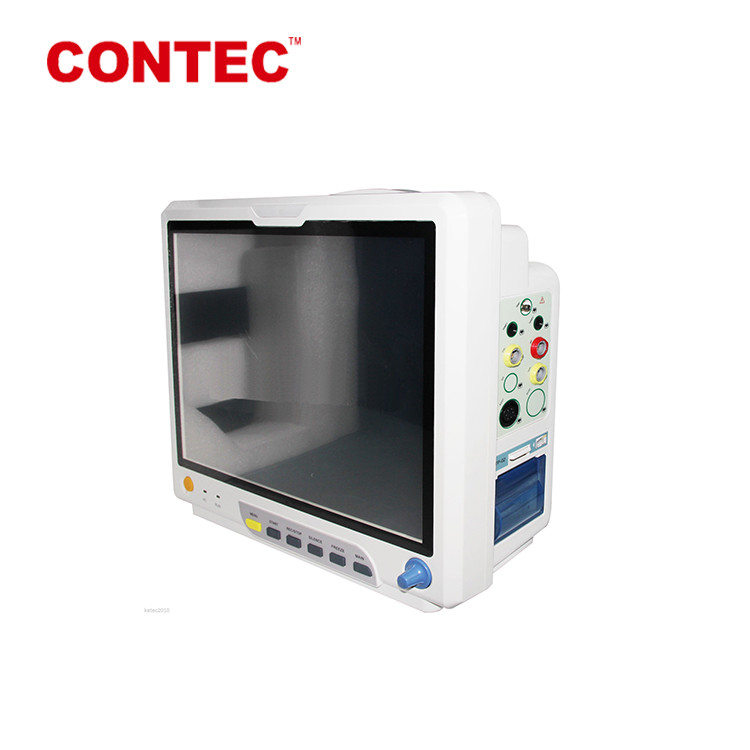

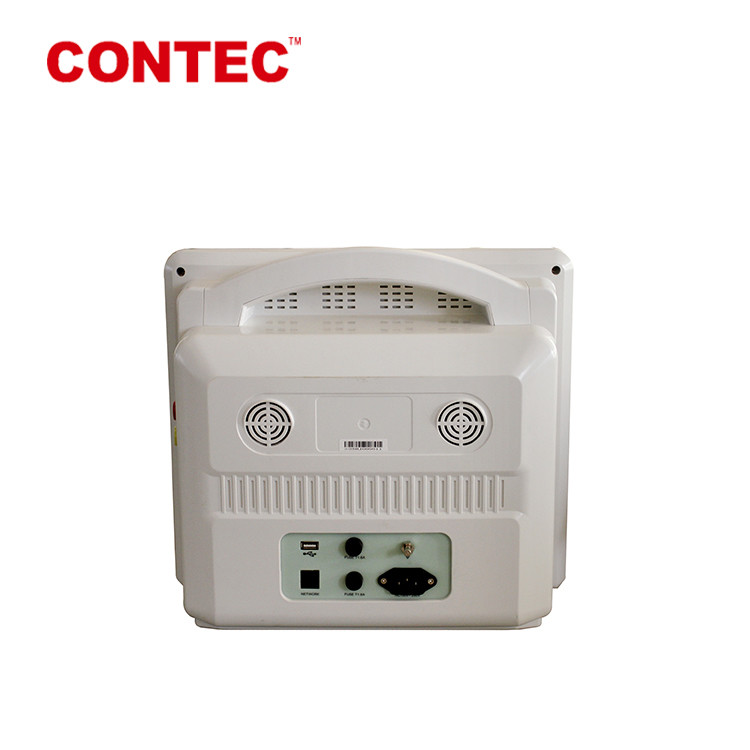

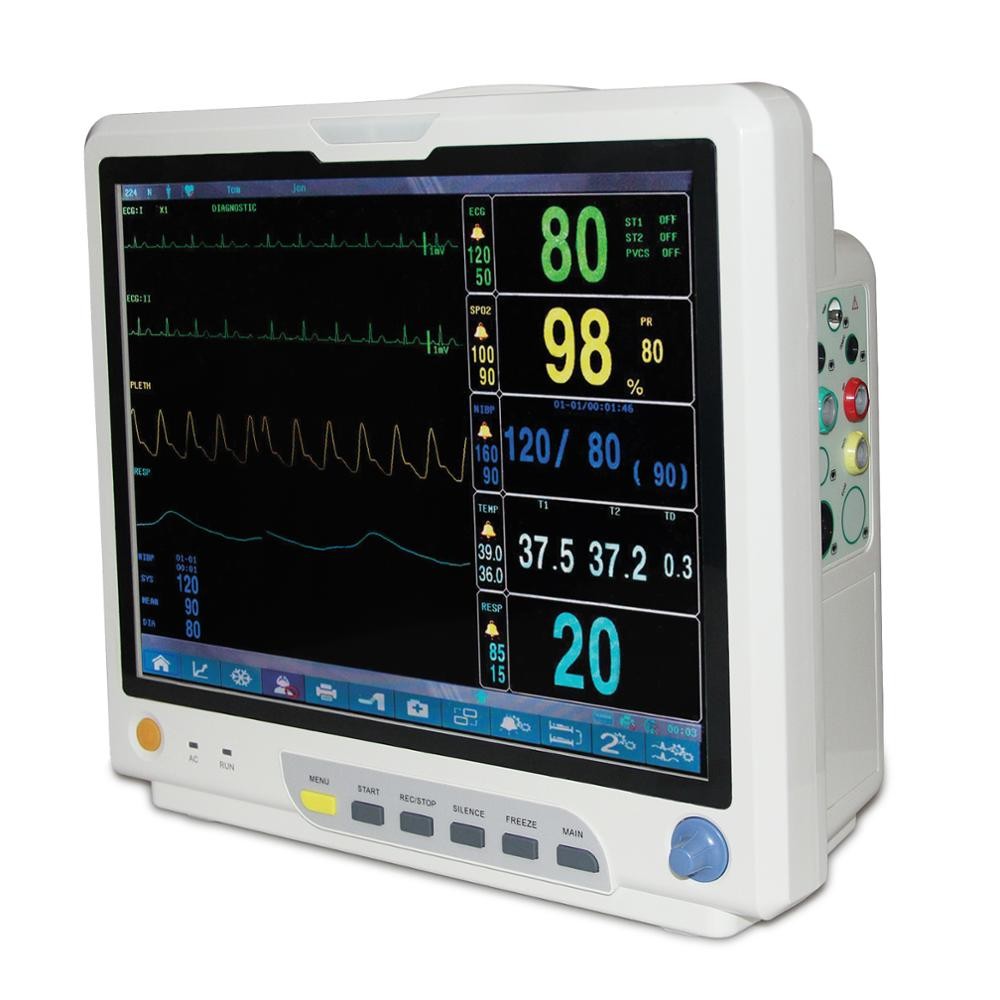

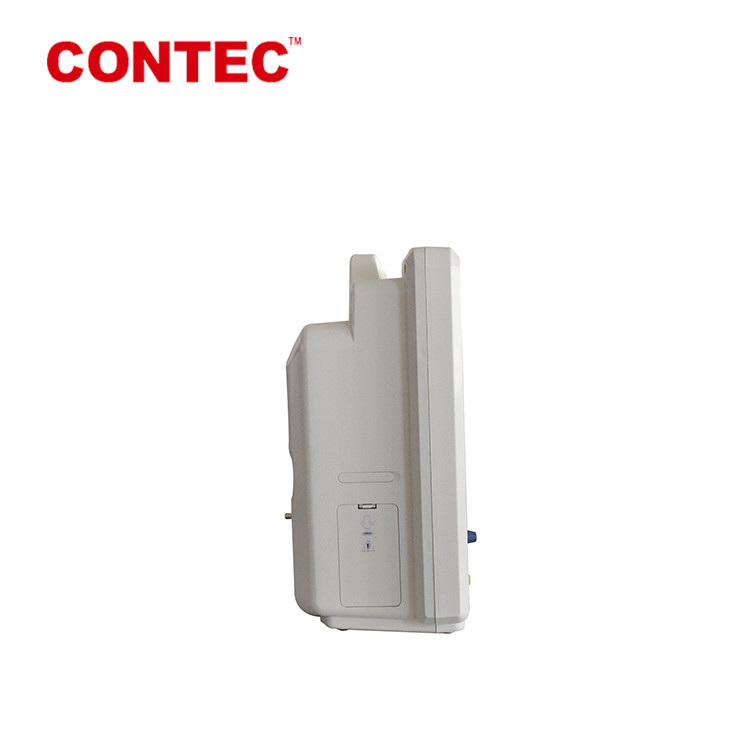

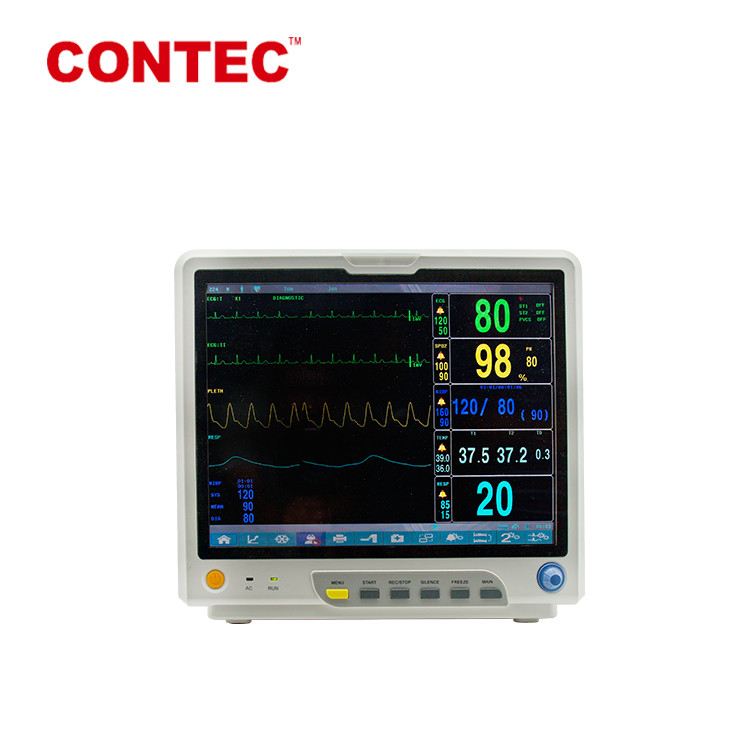

15" Color Large Screen Multiparameter Patient Monitor Class II

 introduction:

CMS9200 features in high cost-performance, high safety and low power consumption. To ensure monitoring quality and reduce operation risk, it adopts full-isolation(floating), ECG defibrillation-proof protection, ECG anti-high frequency surgical unit and NIBP dual-overpressure protection.

Features:

 Display mode: 15'' color TFT LCD with high-resolution.

 Be applicable for adult, pediatric and neonatal for all-round monitoring.

 Operation interface with Chinese and English.

 Waveform and data can be set optionally.

 Storage of 72-hour trend data, and review of 40-second holographic waveform.

 Full-lead ECG display.

 7-lead ECG displays in a screen, and ECG waveforms series display.

 Anti-high frequency surgical unit, defibrillation-proof(requirement for special leads).

 Adopt digital SpO2 technology, which has strong anti-interference and anti-weak filling capability.

Function of NIBP review, storage for up to 400 NIBP data.

 Network: connecting with central station, other Bed observation and software updating.

 Network connection mode: wireless and wired.

 Built-in rechargeable battery for uninterrupted monitoring.

 Standard parameters of ECG, RESP, NIBP, SpO2, TEMP and PR.

 Built-in printer(optional).

 Standard parameters of ECG, RESP, NIBP, SpO2, and TEMP.

 IBP, CO2 and thermal printer are optional.

Performance:

 ECG

Lead Mode 3-lead and 5-lead are optional

Lead Selection I, II, III, avR, avL, avF, V

Wave 5-lead: 2 channels

3-lead: 1channel

Gain ×0.25, ×0.5, ×1, ×2

HR Measuring and Alarm Range

Range 15 ~ 300 bpm

Accuracy ±1% or ±1bpm, which is greater

Alarm Accuracy ±2bpm

Resolution 1 bpm

ST Segment Monitoring

Measuring and Alarm Range -0.6 mV~ + 0.8 mV

ARR

ARR Detecting Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY,  R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC

Alarm Available

Review Available

Scan Speed for ECG Waveform 12.5mm/s, 25mm/s, 50mm/s

u Respiration (RESP)

Method R-F(RA-LL) Impedance

Measuring and Alarm Range for Resp. Rate:

Adult 0~120rpm

Pediatric and Neonatal 0~150rpm

Resolution 1 rpm

Measuring Accuracy ±2 rpm

Apnea Alarm  10 ~ 40 S

u SpO2

Measuring and Alarm Range 0 ~ 100 %

Resolution 1 %

Accuracy:

              70% ~ 100% ±2%

                     0% ~ 69% unspecified

 PR

Measuring and Alarm Range 0~250bpm

Resolution 1bpm

Measuring Accuracy ±2bpm or ±2%, which is greater

Alarm Accuracy ±2bpm

 NIBP

Method Oscillometry

Mode Manual, Auto, continuous

Measuring Interval in AUTO Mode 1 /2 /3 /4 /5/ 10/ 15/ 30 /60 /90 Min

Measuring Period in Continuous Mode 5 Min

Measuring and Alarm Range 10~270mmHg

Resolution 1 mmHg

Accuracy ±10% or ±8mmHg, which is greater

Over-pressure Protection:

Adult Mode 315±10 mmHg

Pediatric Mode 265±10 mmHg

Neonatal Mode 155±10 mmHg

 TEMP

Channel dual-channel

Measuring and Alarm Range 0 ~ 50°C

Resolution 0.1°C

Accuracy ±0.1°C

Optional

EtCO2

Method Sidestream or Mainstream
Measuring Range for CO2 0~150mmHg

Resolution for CO2:

0.1 mm Hg 0 to 69 mm Hg
0.25 mm Hg 70 to 150 mm Hg

Accuracy for CO2:

0 – 40 mm Hg ±2 mm Hg
41 – 70 mm Hg ±5%
71 – 100 mm Hg ±8%
101 – 150 mm Hg ±10%
Respiration Rate>80BPM ±12%
AwRR Range 2~150 rpm
AwRR Accuracy ±1BPM

Apnea Alarm Available

u IBP

Channel dual-channel

Label ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measuring and Alarm Range -50~350 mm Hg
Resolution 1 mm Hg

Accuracy ±2% or 1mm Hg, which is greater

Recorder

Print Mode thermal array

Recording Width 48mm

Paper Speed 25mm/s, 50mm/s

Quantity of Printing Waveform dual-channel

u Physical Characteristic:

Dimension 365 x 150 x 340 (mm)

Net Weight 4.0Kg

Accessories:

1) Adult SpO2 probe(5-pin)

2) Adult NIBP cuff

3) Extending tube for NIBP

4) ECG lead

5) ECG electrode

6) Temperature probe

7) IBP sensor(optional)

8) IBP integration module(optional)

9) IBP cable(optional)

10) CO2 module(optional)

11) CO2 collection pipe(optional)

12) Power cord

13) User Manual
