Plug In Multi Parameter Patient Monitor ICU 15.6 Inch Vital Signs Monitor

Name: Plug In Multi Parameter Patient Monitor ICU 15.6 Inch Vital Signs Monitor
Brand: contec
SKU: TS15
Price: 1 USD
Availability: InStock
Rating: 5 (166 reviews)

Minimum Order Quantity :	1PCS	Price :	$1,099.00/Units 1-99 Units
Packaging Details :	carton package	Delivery Time :	about 5 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	100000pcs/month

Place of Origin:	China	Brand Name:	contec
Certification:	CE,ISO13485	Model Number:	TS15

Detail Information
Power Source:	Electric	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	Plastic
Shelf Life:	1years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	None
Product Name:	Patient Monitor	Type:	TS15
Function:	ETCO2,IBP,ECG,NIBP,SPO2,RESP,TEMP,PR
High Light:	Plug In Multi Parameter Patient Monitor , 15.6 Inch vital signs monitor , Multi Parameter Patient Monitor 15.6 Inch

Product Description

item	value
Place of Origin	China
Brand Name	CONTEC
Model Number	TS15
Power Source	Electric
Warranty	1 Year
After-sale Service	Repair and Replacement
Power Supply Mode	Built in Battery
Material	Plastic
Shelf Life	1years
Quality Certification	ce
Instrument classification	Class II
Safety standard	None
Type	patient monitor
Place of Origin	Hebei, China (Mainland)

Specification

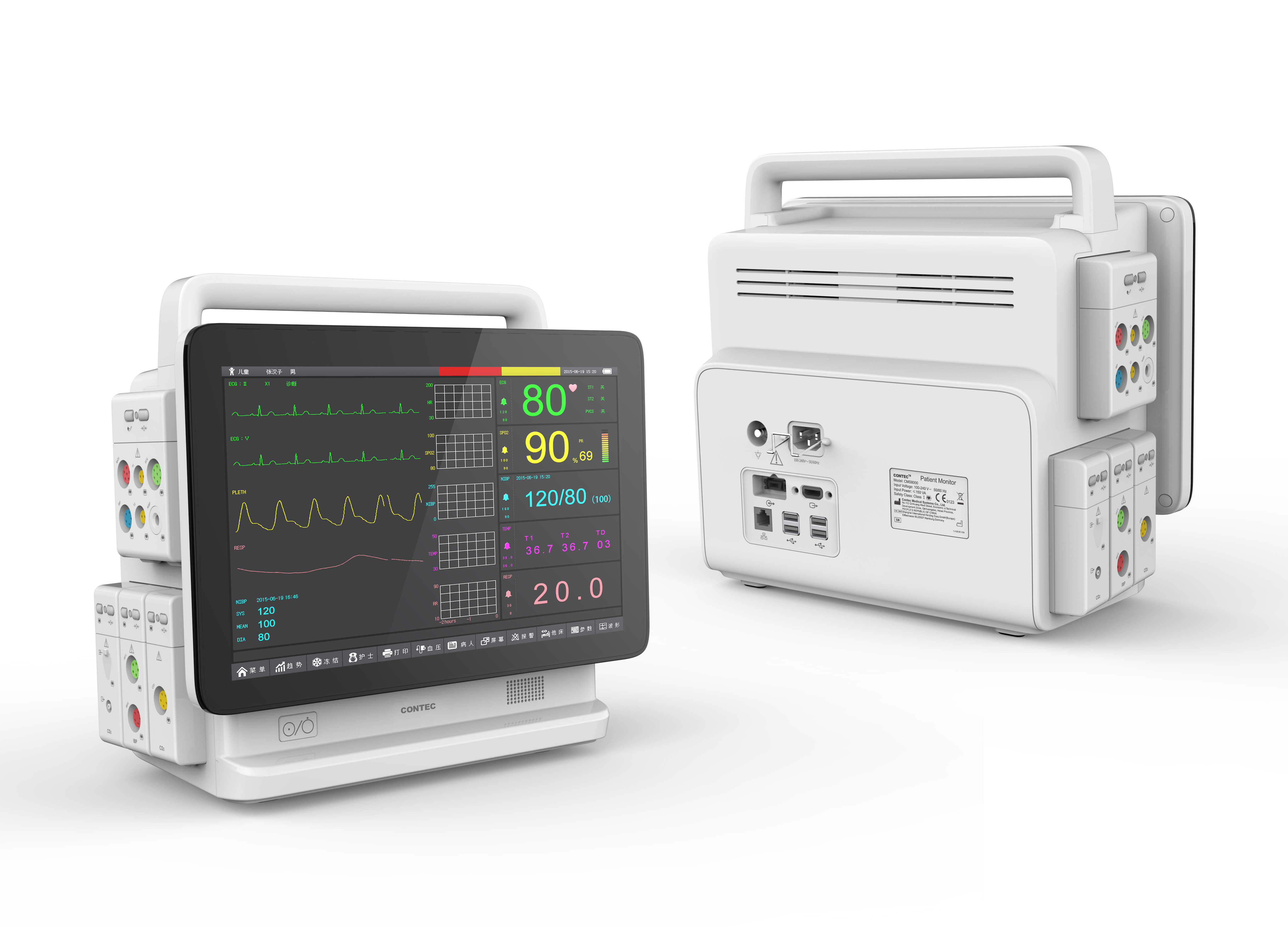

TS15 Plug-in Patient monitor

Introduction
The monitor is applicable for clinical monitoring in operating room, postoperative observation room, ICU/CCU ward, emergency room,etc. of adult, pediatric and neonate. The patient's vital parameters (ECG (including ST-segment measurement and arrhythmia analysis), RESP, SpO2, PR, NIBP, TEMP, IBP and CO2, etc.) can be monitored. Monitored information can be displayed, reviewed,printed and stored..

Function

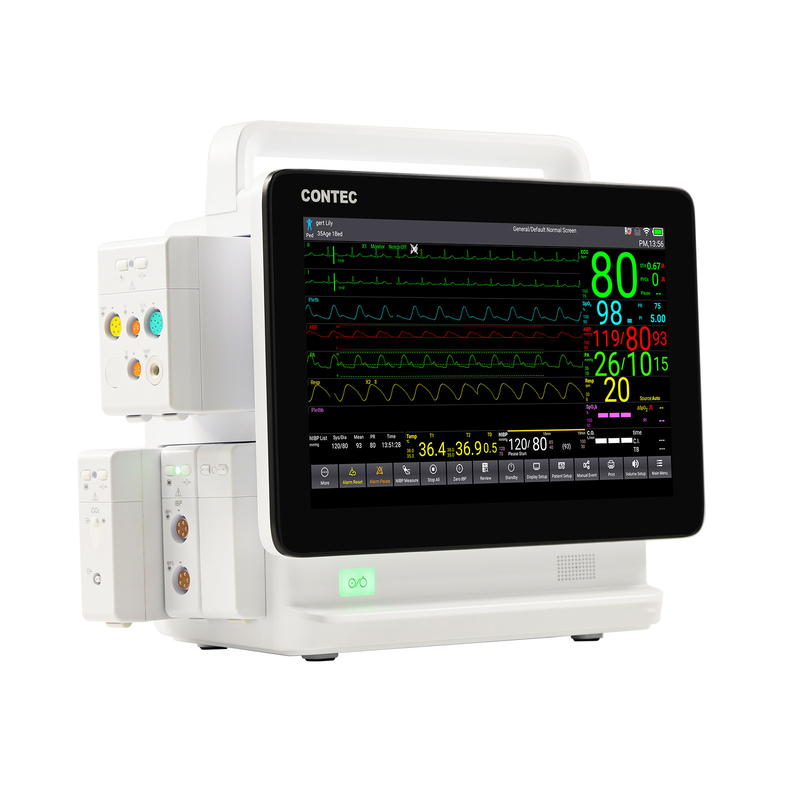

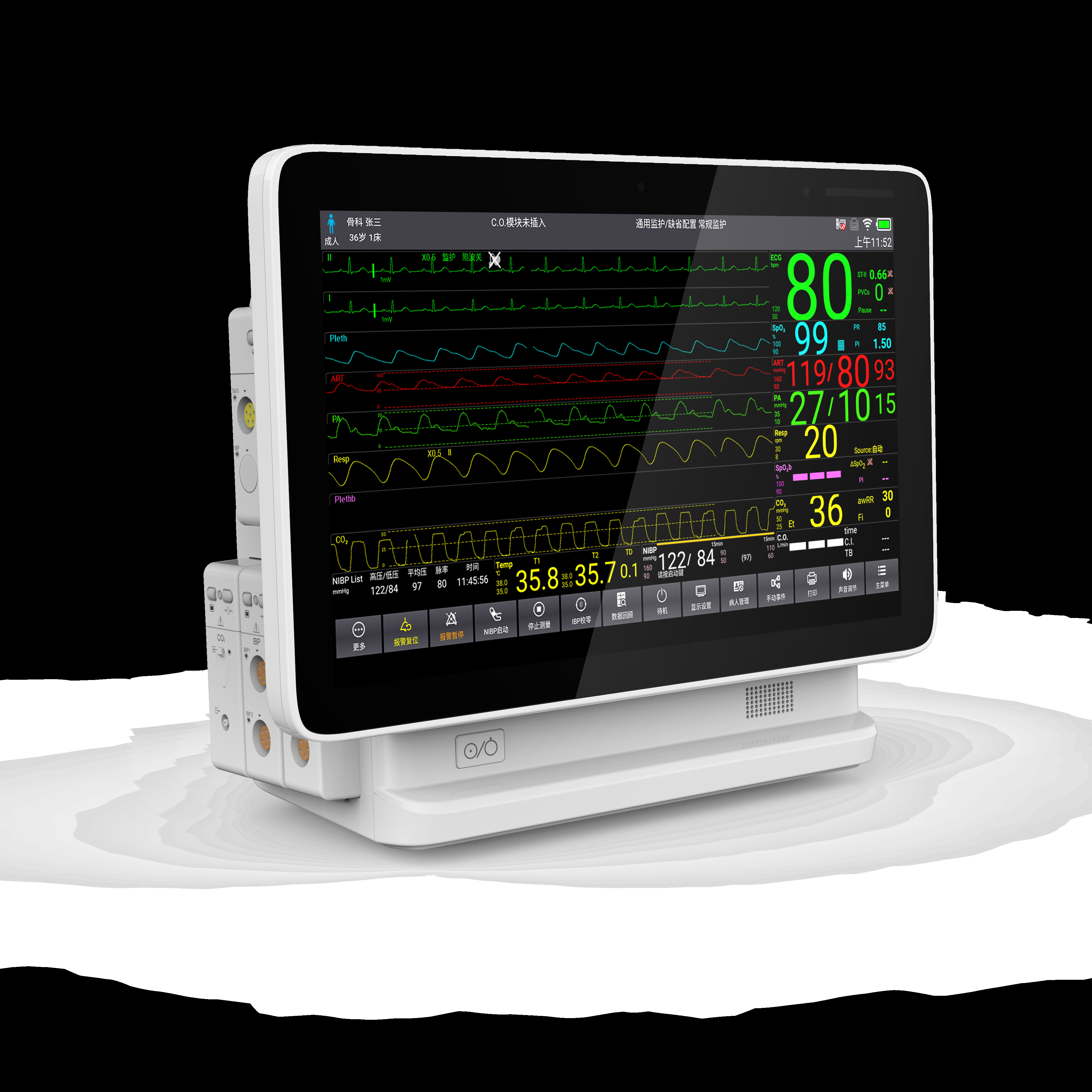

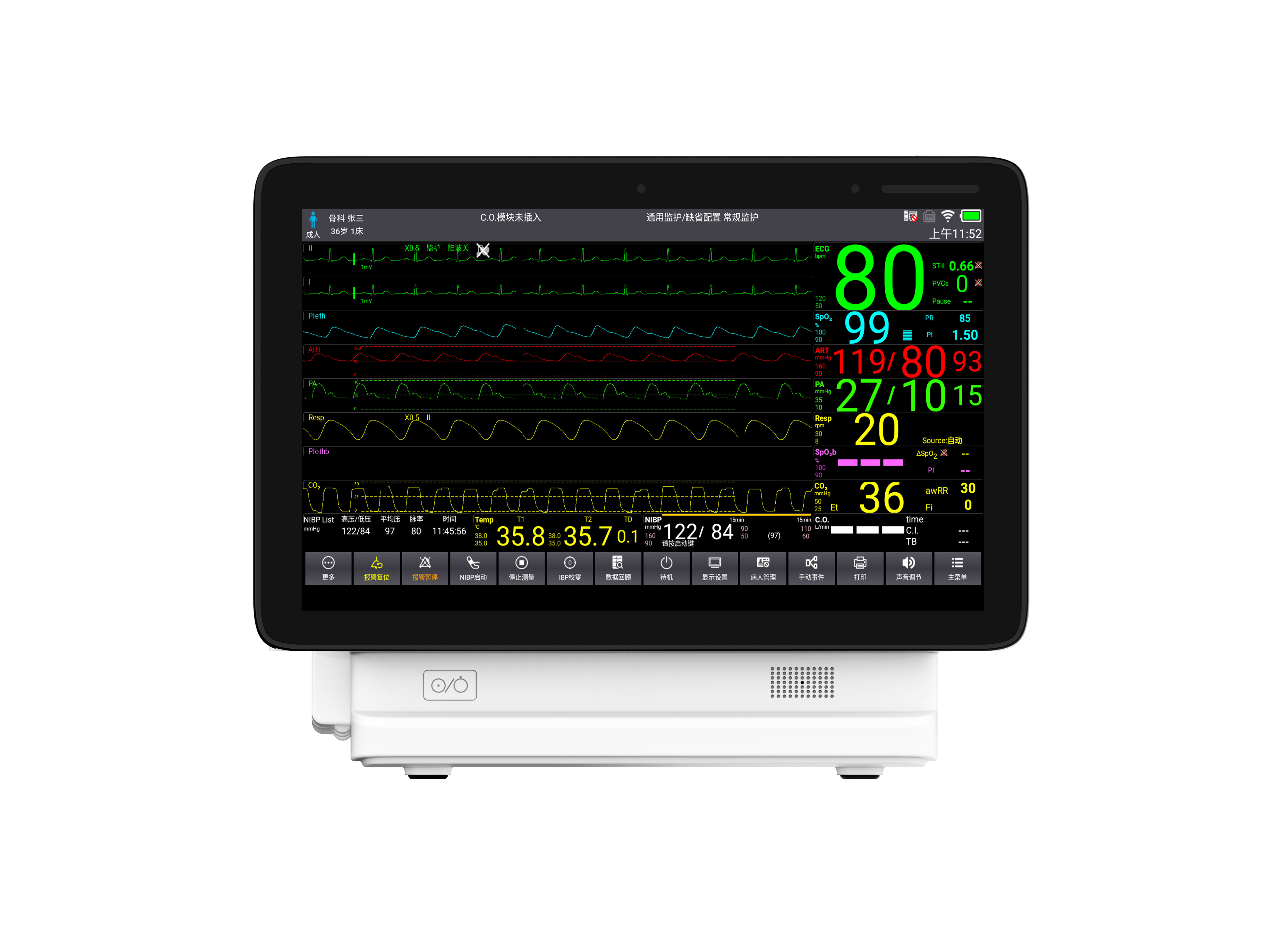

1)15.6" high-definition touch screen design, easy and convenient to operate, elegant and concise in appearance.
2)Independent physiological and technical alarm function, convenient for medical staff to quickly know patient’s condition.
3)Luminous “ON / OFF” button design, convenient to operate at night.

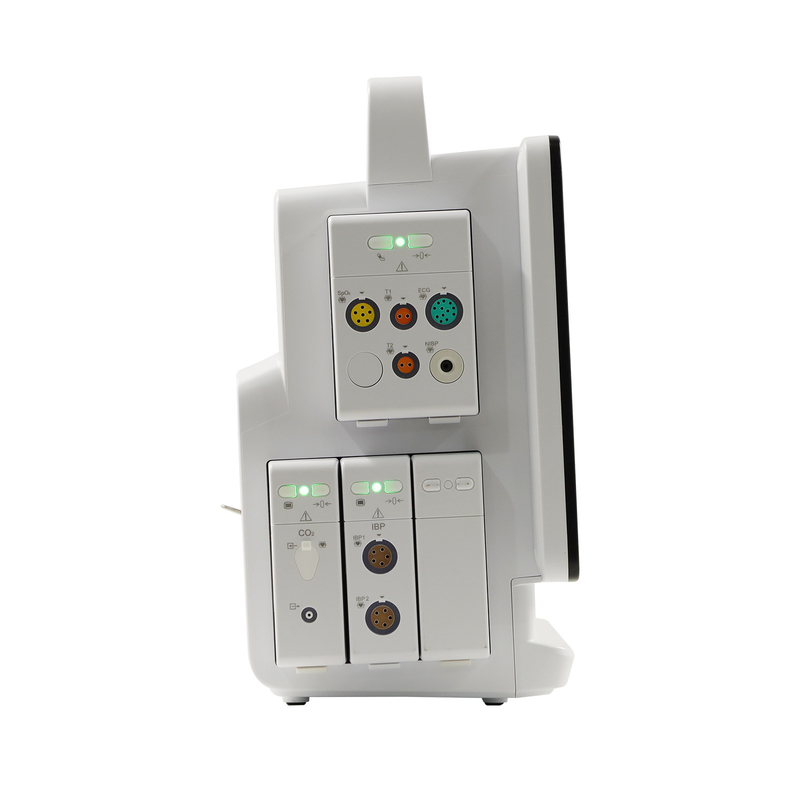

4)Modular design: the modules can be configured and combined flexibly and conveniently, expanded and upgraded at any time, meets
the monitoring requirements of different departments on different parameters.
5)Support dynamic hot-plugging parameter module: no need to restart the device, plug-and-play, change the monitoring parameters at
any time as clinical requirements.
6)Adopt high-performance processor, stable, reliable and fast to process information.
7)Patient information can be rapidly entered, patient type (adult / neonate / pediatric) can be quickly switched, meets the
requirements of different departments.
8)Abundant analysis functions: 23 arrhythmia, full-lead ST-segment and pacing analysis; multiple calculation functions (such as
calculation of drug concentration, titration table, hemodynamics, ventilation, oxygenation, renal function, etc.).
9)With the functions of waveform freezing, holographic waveform storage and review.
10)Automatic data storage in case of power failure; optional built-in memory card, achieves large-capacity data storage.
11)With HDMI expansion interface, the display screen can be connected according to clinical requirements.
12)Built-in large-capacity detachable lithium battery, ensures uninterrupted monitoring.
13)Fanless design, ensures no noise and low power consumption during working.
14)3-channel built-in recorder used to print real-time waveform is optional.
15)Connect to Central Monitoring System developed by our company by WiFi / Wired, convenient to transmit patient’s real-time data.
16)Standby mode, be applied to ICU, avoids affecting patient’s rest, one-button switching, reduces the workload of medical staff.

Performance
(1)ECG
Lead type:
3-lead: I, II, III
5-lead: I, II, III, aVR, aVL, aVF, V
12-lead: I, II, III, aVR, aVL, aVF, V1,V2,V3,V4,V5,V6
Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV
Scan speed: 12.5 mm/s, 25 mm/s, 50 mm/s
HR
Measurement and alarm range:
Adult: 15 ~ 300 bpm
Pediatric/neonate: 15 ~ 350 bpm
Resolution: 1 bpm
Accuracy: ± 1 % or ± 1 bpm, whichever is greater
ST-segment detection
Measurement and alarm range: - 2.0 mV ~ + 2.0 mV
Accuracy: - 0.8 mV ~ + 0.8 mV: ± 0.04 mV or ± 10 %, whichever is greater
Other range: unspecified
Arrhythmia analysis: 23 kinds
Pacemaker: yes

(2)RESP
Measurement mode: R-F (RA-LL) impedance
Respiration rate:
Measurement range:
Adult: 0 rpm ~ 120 rpm
Pediatric/neonate: 0 rpm ~ 150 rpm
Resolution: 1 rpm
Accuracy: 7 ~ 150 rpm, ± 2 rpm or ± 2 %, whichever is greater;
0 ~ 6 rpm, unspecified
Apnea alarm: 10 ~ 120 s, not alarm
Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50mm/s
(3)NIBP
Measurement mode: Oscillometry
Working mode: Manual/AUTO/Continuous
Measurement interval in AUTO mode: 1 min, 2 min, 2.5 min, 3 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 h, 1.5 h, 2 h, 3 h, 4 h,8 h
Measurement period in Continuous mode: 5 minutes
Measurement and alarm range: 10 ~ 270 mmHg
Resolution: 1 mmHg
Cuff pressure accuracy: ± 3 mmHg
Measurement accuracy:
Maximal mean deviation: ± 5 mmHg
Maximal standard deviation: 8 mmHg
Over-pressure protection:
Adult mode: 297 ± 3 mmHg
Pediatric mode: 240 ± 3 mmHg
Neonatal mode: 147 ± 3 mmHg

(4)CONTEC SpO2
Measurement range: 0 % ~ 100 %
Resolution: 1 %
Accuracy: 70 % ~ 100 %, ± 2 %;
0 % ~ 69 %, unspecified
PR
Measurement and alarm range: 25 ~ 250 bpm
Accuracy: ± 2 bpm or ± 2 %, whichever is greater
(5)Nellcor SpO2
Measurement range: 1 % ~ 100 %
Measurement accuracy: 70 % ~ 100 %: ± 2 % (adult / pediatric)
70 % ~ 100 %: ± 3 % (neonate)
0 % ~ 69 %: unspecified
Nellcor PR
Measurement range: 20 ~ 300 bpm;
Measurement accuracy: 20 ~ 250 bpm, ±3 bpm;
251 ~ 300 bpm: unspecified;
Upper limit of alarm: upper limit - 2 ~ 300 bpm;
Lower limit of alarm: 20 bpm ~ lower limit + 2 bpm

(6)Masimo SpO2
Measurement range: 1 % ~ 100 %
Measurement accuracy:
70 % ~ 100 %: ± 2 % (adult / pediatric, under conditions of no motion), ± 3 % (under conditions of motion)
70 % ~ 100 %: ± 3 % (neonate, under conditions of no motion)
1 % ~ 69 %: unspecified
Masimo PR
Measurement range: 25 ~ 240 bpm
Measurement accuracy: ± 3 bpm (under conditions of no motion), ± 5 bpm (under conditions of motion)
Upper limit of alarm: upper limit - 2 ~ 240 bpm
Lower limit of alarm: 25bpm ~ lower limit + 2 bpm

(7)TEMP
Channel: dual-channel
Measurement range: 0 ~ 50 ℃
Resolution: 0.1 ℃
Accuracy: ± 0.1 ℃

(8)CO2
Measurement mode: mainstream or sidestream
CO2 measurement range: 0 ~ 150 mmHg
CO2 resolution: 0.1 mmHg: 0 ~ 69 mmHg
0.25 mmHg: 70 ~ 150 mmHg
Accuracy:
0 ~ 40 mmHg: ± 2 mmHg
41 ~ 70 mmHg: ± 5 %
71 ~ 100 mmHg: ± 8 %
101 ~ 150 mmHg: ± 10 %
AwRR measurement range:
Sidestream: 2 ~ 120 rpm
Mainstream: 2 ~ 150 rpm
AwRR accuracy: ± 1 rpm
Apnea alarm: yes

(9)IBP
Channel: 4-channel
Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measurement and alarm range: -50 ~ 300 mmHg
Resolution: 1 mmHg
Accuracy: ± 2 % or 1 mmHg, whichever is greater
(10)Power supply: 100 ~ 240 V ~ 50/60 Hz
(11)Safety class: class I, defibrillation-proof type CF applied part
(12)Waterproof degree: IPX2

Accessories
1)TS13 multi-parameter module
2)ECG cable: 5-lead, American standard, TPU
3)SpO2 probe (integrated) Digital fingertip SpO2 probe for adult (CMS-N-SPO2 6P, 3M, yellow)
2)TEMP probe :R25=2.252K TEMP probe, skin surface type, CMS-N-TEMP 2P, PVC, L=3M
5)NIBP cuff:BP extension tube, L=3M
6)Adult cuff (25 ~ 35 cm)
7)EtCO2
8)IBP

Packing & Delivery
